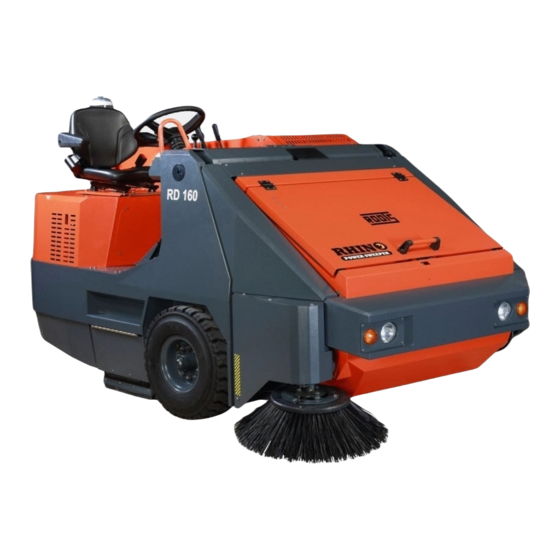

ROOTS RHINO RD 160 Owner Manual & Illustrated Parts List

Ride-on-sweeper, diesel
Hide thumbs Also See for RHINO RD 160:
Table of Contents

Advertisement

Quick Links

Ride-On-Sweeper, Diesel
Read this manual completely and understand
the instruc ons before opera ng the machine.
OWNER'S MANUAL &
"English Version"
"Original Instruc ons"
1
ILLUSTRATED PARTS LIST
