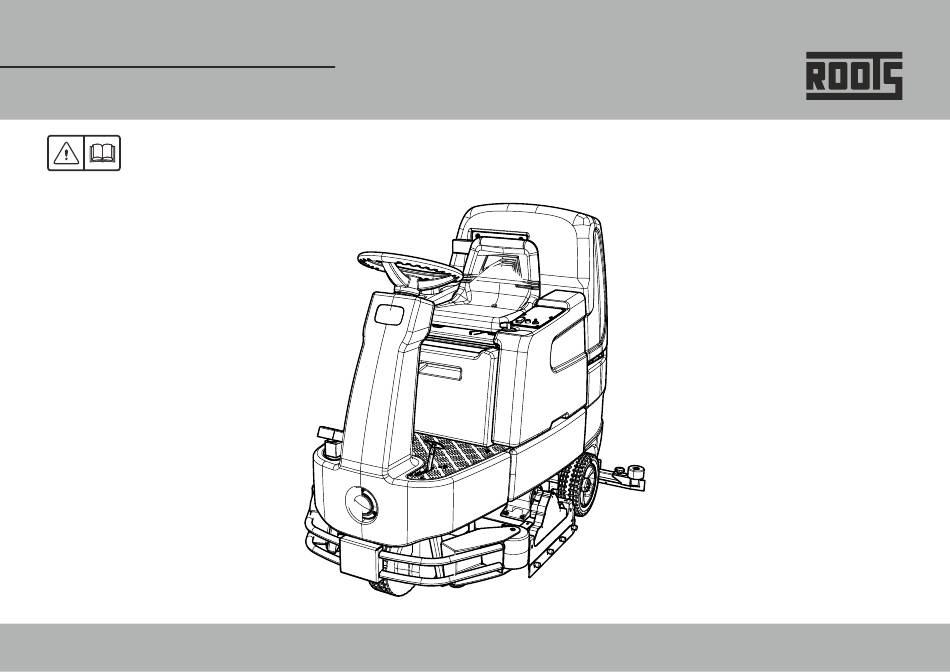

- Page 1 RootsScrub RB 800 C Ride-On Scrubber Drier with Cylindrical Brush Operator’s Manual...
-
Page 3: Table Of Contents
Please be advised explicitly that we cannot accept any legal claims out of the contents of this manual. If repair work has to be performed, make sure that only genuine spare parts are used since genuine spare parts only may guarantee continuous and dependable operation of your machine. Roots Multiclean Ltd. RKG Industrial Estate, Coimbatore - 641 006, India. 557100057-00, Rev-C, 06/17 RootsScrub RB 800 C... -
Page 4: Introduction
INTRODUCTION Preface, Notes on Domestic Warranty Roots reserves the right to change the product or contents Dear Customer, of this manual without prior information. Please refer to the Limited Warranty card supplied along with We are pleased with your having chosen the RootsScrub For Battery, Motors, Engines and other OEM components the machine for additional information. -
Page 5: Technical Specification
Weight of machine with battery 540 - 320 Ah Weight of machine with battery 490 - 240 Ah Weight of machine (ready to 660 - 320 Ah operate) Weight of machine (ready to 610 - 240 Ah operate) Turning radius RootsScrub RB 800 C... -
Page 6: General Safety Instructions
Ground cleaning machines may be run by qualified personnel operator or any maintenance personnel who are only. intended to work on/with the machine. The machine may be used for cleaning such surfaces approved by the owner or the authorized representatives. RootsScrub RB 800 C... - Page 7 Battery may only be handled and changed by properly inclination of up to 10° . skilled maintenance personnel. Pay attention that the insulation of the charger cable is not damaged and cannot be damaged during the charging process. RootsScrub RB 800 C...
-
Page 8: Initial Startup
Owner’s personnel are not allowed to unpack the machine. Operator Seat Dirty Water Tank Steering Wheel Accelerator Pedal Brake Pedal Fresh Water Tank Debris Tray Squeegee Traction Battery Electronics Bay Drive Motor Control Panel Cylindrical Brush Head Working Lamp RootsScrub RB 800 C... - Page 9 · minutes, complying with the manufacturer's instructions. Scrub the floor once again while the squeegee is lowered. · Too much foam indicates excessive dosage or improper · suitability of detergent for the existing kind of dirt. RootsScrub RB 800 C...
- Page 10 Houses all the controls of the machine. G. Soiled water tank full indicator lamp- Glows when the soiled water tank is full. 5. Brake Pedal H. Working Lamp Used to slow/stop the machine. (On/Off)- Toggles the working lamp On or Off RootsScrub RB 800 C...
-
Page 11: Operation Brush
Care should be taken while removing the debris 5. Pull out the brushes (d) to clean or to rotate them end-to-end. tray, may injure your hands. Do not use harsh acids or chemicals to clean the brushes. RootsScrub RB 800 C... -
Page 12: Operation Squeegee
Maximum inclination of 10° Wash the squeegee under clean running water. is only allowed. Max. 10° Maximum water wading of 5.0 mm is allowed. 5.0 mm Water Level RootsScrub RB 800 C... - Page 13 Unhook the drain hose and dump the dirty water to the drain. Ÿ Fresh water tank indicator hose. Do not drain the soiled water into the environment. - Remove the collection tray and clean with fresh water. - Clean the dirty water tank with clean water. RootsScrub RB 800 C...
-
Page 14: Maintenance
- Never open the cover electrical module in dusty technician in detail on the last error found. areas. - DO NOT TAMPER WITH THE ELECTRICAL MODULE OR THE CONTROLLER. - Do not dispose the replaced electrical/electronic components in to the environment. RootsScrub RB 800 C... - Page 15 Check the parking brake limit switch ( if Disable switch on used). This alarm will reset by resetting the keyswitch (-S1). Key-off sequence detected Check the key switch(-S1) connections Check your settings: if the controller prom fail repeats this alarm, change it RootsScrub RB 800 C...
- Page 16 Clean electro-motor from carbon dust and check the accessible carbon brushes for smooth running and condition, replace if required Grease steering pinion and gear ring Check joints at squeegee holder and grease if required RootsScrub RB 800 C...
- Page 17 Poor water recovery Dirty water tank is full Empty dirty water tank Suction hose is clogged Remove debris Squeegee is clogged Remove debris Squeegee lip is worn Rotate or replace lips Faulty vacuum hose Contact service RootsScrub RB 800 C...
- Page 18 17. Do not park the machine by exposing it to the natural elements. 18. Do not use the machine to tow or push other equipments. 19. Do not over fill the distilled water in the battery. RootsScrub RB 800 C...
-
Page 19: Battery System
Roots plugs are/will be seteristic curve such that a modification cannot be held liable for damages resulting from the fact... - Page 20 -Then consult a doctor immediately! minus to minus) to the disconnected battery charger. The battery current. Any liquid in the battery container must be charger should then be switched on. extracted and disposed of according to regulations. RootsScrub RB 800 C...
- Page 21 Match the battery to the correct charger. Ÿ Keep the battery well ventilated while charging. Ÿ Charge the battery immediately after it is discharged Ÿ completely. Keep all inter cell connections and bolted terminals Ÿ tight and covered with petroleum jelly. RootsScrub RB 800 C...
- Page 23 Roots Multiclean Ltd. R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India. Phone: +91 (422) 4330 330, E-mail: rmclsales@rootsemail.com Web: rootsmulticlean.in, Toll Free: 1800 41 99 77 9...
