Summary of Contents for ROOTS RootsScrub E430

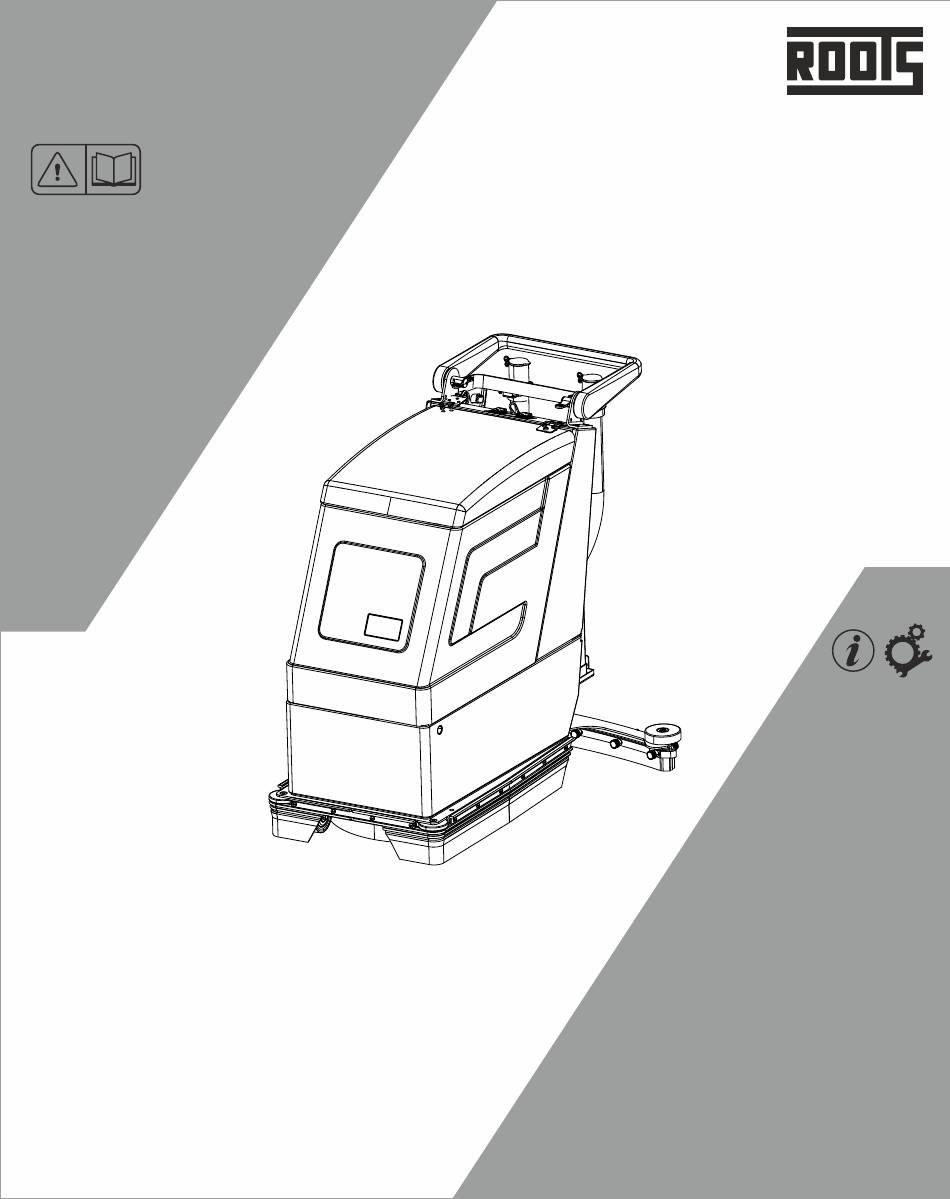

- Page 1 RootsScrub E430 Walk Behind Scrubber Drier Electric 230V/50Hz Read this manual completely and understand the Operator’s Manual instructions before operating the machine. RootsScrub E430 “English Version”...
- Page 2 RootsScrub E430...
-
Page 3: Table Of Contents
Maintenance IMPORTANT NOTE: MACHINE DATA Roots Multiclean Ltd. (RMCL) is not liable for any legal claims that Please fill at the time of installation for future reference: may arise as a direct or indirect result of the contents of this manual. -
Page 4: Technical Specification
Vacuum pressure, max. - 1206 mm of H₂O Effective suction width - 750 mm Rated voltage - 230 V Frequency - 50 Hz Brush motor power - 800 W Vacuum motor power - 400 W Total power (max) - 1200 W 1000 mm RootsScrub E430... -
Page 5: Introduction
The letter should be sent within 24 hours of receipt of the the machine comes with our Roots promise of quality, efficiency machine. and performance. -
Page 6: Customer Support System
Focus on your business while we take care of your equipment. þ Well trained engineers to take care of the equipment. þ System driven scheduled periodic maintenance. þ Genuine spare parts. þ Toll free number assistance for breakdown. RootsScrub E430... -
Page 7: Safety Instructions
This machine is not a vacuum cleaner! Never suck in more fluid Protect the cable from heat, oil, and sharp edges. than what has been sprayed. Do not use to suck in dry dust! This machine must be used only on indoors only. RootsScrub E430... - Page 8 Maintenance work may be carried out only by approved customer service outlets or experts in this field who are familiar with the respective safety regulations. Please observe the local safety regulations regarding portable commercially used machines. RootsScrub E430...
- Page 9 When replacing coupler plugs of line cords or connecting Ÿ leads, splash-proof protection and mechanical strength must be guaranteed. Transport For easy transportation of the machine, it is recommended to lift up the brush head and squeegee as represented, prior to transportation of the machine . RootsScrub E430...
- Page 10 Caution Ecological Hazard Manual Do Not Use High Toxic Hazard Reset Warning Electrical Hazard Pressure Jets Do not let powercord come in contact with water or other fluids. STOP No Access No Smoking Disconnect Powercord Electric Shock Hazard RootsScrub E430...
-
Page 11: Initial Setup
In order to prevent unwanted machine. swinging movement during transport, stopper pin in the connecting arm hits the bolt of the brush head to retain its stability. Also remove the tie bolt indicated in the picture. RootsScrub E430... - Page 12 4. Switch to unlock the brush lever suitably to achieve the desired flow of Detergent. Turn down to close the detergent flow. Ÿ Control Panel Important! Do not over-exert the lever; A gentle force is Ÿ enough to close/open. RootsScrub E430...
-
Page 13: Operating Brush
Installation of brush The tank should be empty. Ÿ Lift the squeegee. Ÿ Place the brush in front of the machine. Ÿ Lower the brush head. Ÿ RootsScrub E430... -
Page 14: Operation Squeegee
Raising / lowering the squeegee To lower the squeegee release the handle from its locking Ÿ position by pulling it upwards and releasing it. To raise the squeegee lift the handle upwards and lock it in Ÿ position. RootsScrub E430... -
Page 15: Procedure For Scrubbing
These products fulfil the requirements of the Detergents Act. Draining of fresh water tank The water level hose is used to drain the fresh water. Ÿ The tank requires rinsing at regular intervals. RootsScrub E430... - Page 16 Check the strainer upstream of the intake opening in the Ÿ fresh water tank; clean if required, as otherwise the suction efficiency will be affected. The machine must not be cleaned by water jet or high pressure cleaning equipment, as this will endanger its proper working function. RootsScrub E430...
-
Page 17: Maintenance
Check the caps both of fresh people there will be glad to perform that work for you. There and soiled water drain hose; well trained personnel and genuine Roots spare parts are at your chek them for smooth disposal. operation... - Page 18 RootsScrub E430...
-
Page 19: Roots Multiclean Ltd
Roots Multiclean Ltd. R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India. Phone: +91 (422) 4330 330, E-mail: rmclsales@rootsemail.com Web: rootsmulticlean.in, RootsScrub E430 Toll Free: 1800 41 99 77 9...
