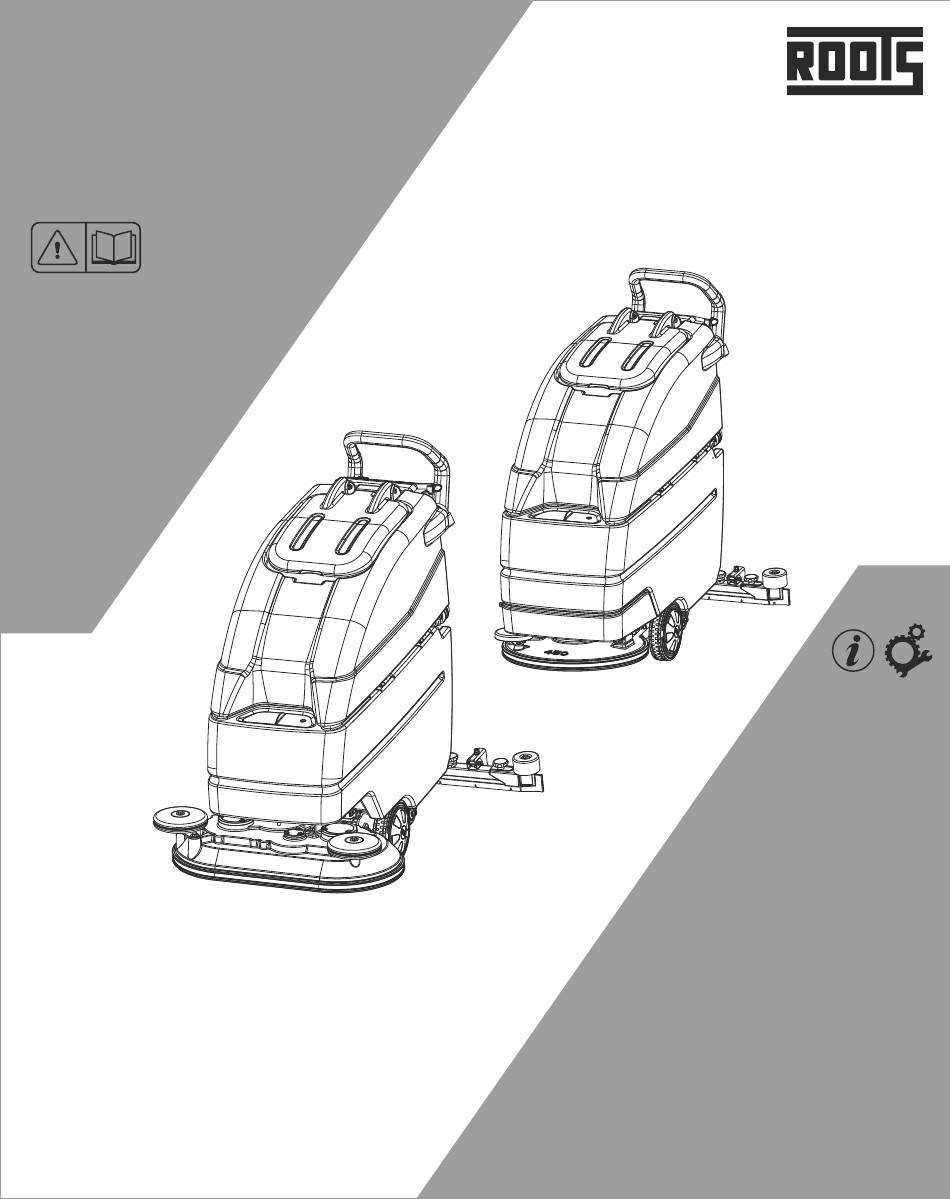

- Page 1 RootsScrub B4545, B4550, B4550C & B4560 Walk-Behind Floor Scrubber Drier Battery Read this manual completely and understand the Owner’s Manual instructions before operating the machine. “English Version”...
-
Page 3: Table Of Contents
Troubleshooting Do’s & Don’ts IMPORTANT NOTE: Battery Instructions Roots Multiclean Ltd. (RMCL) is not liable for any legal claims that may arise as a direct or indirect result of the contents of this manual. Roots Multiclean Ltd. R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India. -
Page 4: Introduction
Acceptance of the Machine Dear Customer, On arrival of the machine at the shipping address, We are pleased with your having chosen the RootsScrub B4545, please check for any damage that may have B4550, B4550C & B4560 machine for your floor cleaning occurred as a result of transit. -
Page 5: Technical Specification
TECHNICAL SPECIFICATION Description Units B 4545 B 4550 B 4560 Scrubbing width Effective Suction Width Theoretical area coverage 1800 2000 2400 Working Speed, up to km/h Battery Rating V / Ah 12/96 12/96 12/96 Airflow rate L/sec Vacuum Pressure 1087 1087 1087 mm of H... - Page 6 TECHNICAL SPECIFICATION Description Units B 4550 C B 4550 Cx Scrubbing width Effective Suction Width Theoretical area coverage 2000 2000 Working Speed, up to km/h Battery Rating V / Ah 12/96 Airflow rate L/sec Vacuum Pressure 1087 1087 mm of H Power Supply Total Power 1000...
-
Page 7: Safety Instructions
SAFETY INSTRUCTIONS Safety & Warning Symbols It is important that operators and all persons likely to use the machine familiarize All paragraphs in this manual referring to you personal safety, themselves with all accessories and controls, the safety of your machine and the environment protection are as well as their functions, before commencing attributed one of the following warning symbols. - Page 8 SAFETY INSTRUCTIONS The operator must always use safety gloves, safety helmet, Before operating the machine kindly use shoes while operating/maintaining the machine. these safety devices: On inclined/tilted surfaces, the tilt angle and the driving direction should not exceed the values given in this manual. a) Shoes Do not place any tools or metallic objects on top the battery.
-
Page 9: Machine Operation
MACHINE OPERATION After Unpacking Principle of Operation Verify the machine and accessories with the invoice copy. Check A squeegee and suitable brushes or pads are the machine for any transit damage, if found contact the required for wet cleaning of hard floorings. The branch/dealer immediately. - Page 10 MACHINE OPERATION Before Operation Controls - B4550C & B4560 1. Tilt the body of the machine to gain access to the inside of the fresh tank, the tank will stay in its position with a help of a rope assy. RootsScrub B 4560 - Care should be taken while closing the tank.
- Page 11 MACHINE OPERATION DISPLAY LAYOUT OF LCD 5a. For B4545 & B4550 - Brush Motor & Suction Turbine OFF - The brush motor shuts down immediately when switch “B” is pressed but when switch “C” is pressed the suction turbine shuts down after a delay V5.4 LA of 15 seconds.
- Page 12 MACHINE OPERATION Removal of brush 9 . On Battery Charging- Displays that the battery is in Empty the tanks. Ÿ charging mode. After the battery is fully charged a Lift the squeegee and the brush head. Ÿ “BATTERY FULL” icon will be displayed. For B4545 &...
- Page 13 MACHINE OPERATION Removal of brush Replacement of Sealing Strips The sealing strips can be removed without any Raise the brush head and set to its parking position. Ÿ need of tools, as follows: Remove the screw at the idler end, open the cover and pull Remove the squeegee.
- Page 14 MACHINE OPERATION 3 & 4 If worn, the rear sealing strip can be turned at the If worn, the rear sealing strip can be turned at the Ÿ Ÿ front side edge. front side edge. The supporting strip may modify the sealing strip The supporting strip may modify the sealing strip Ÿ...
- Page 15 MACHINE OPERATION Filling of Water For B 4545x & B4550x: (Refer Controls section of B4545x & B4550x in First Operation) max 50°C Turn on Switch “C” the brush is rotating. Ÿ To discharge the cleaning solution , position the lever Fill fresh water and cleaning solution as described below Ÿ...
- Page 16 MACHINE OPERATION Remove the drain hose from this clamp to drain the water. Draining of Fresh Water Tank The water level hose is used to drain the fresh water. Ÿ The tank requires rinsing at regular intervals. At the end of cleaning Stop the machine and lift the brush head.
-
Page 17: Maintenance
The fuses can be changed by removing the rear panel assembly. - for reasons of safety, only genuine Roots spare parts may be used. Maintenance Schedule... -
Page 18: Troubleshooting
TROUBLESHOOTING Problem Cause Remedy No power - nothing works Faulty power switch Contact service Battery need to be recharged Recharge battery Faulty battery Replace battery Loose battery cable Tighten loose cable Main fuse blown Replace the fuse Main fuse blown Replace the fuse Faulty brush motor or loose cable Contact service... -
Page 19: Battery Instructions
BATTERY INSTRUCTIONS Before using the machine Any splashes of acid in the eyes Ÿ or on the skin must be rinsed Ensure the battery is in fully charged condition. Ÿ throughly with plenty of clear Check the battery electrolyte level, if required refill it. Ÿ... - Page 20 BATTERY INSTRUCTIONS 3. Temperature Lead Acid (LA) Battery Instructions: The battery temperature of 30 °C is rated temperature. Higher Kindly ensure that the Warranty certificate of Ÿ temperatures shorten the service life and lower temperatures the battery is available at your end. reduce available capacity.
- Page 21 BATTERY INSTRUCTIONS Disposal of Batteries Battery Specifications: Type - Lead Acid Volts - 12V/96Ah No of batteries - 2 per machine Charger Specifications: Old batteries with this sign are recyclable economic goods and Type - On Board should be brought back into the recycling process. Rating - 20 Amps Old batteries which are not brought back into the recycling process, have to be dealt with as dangerous materials under...
