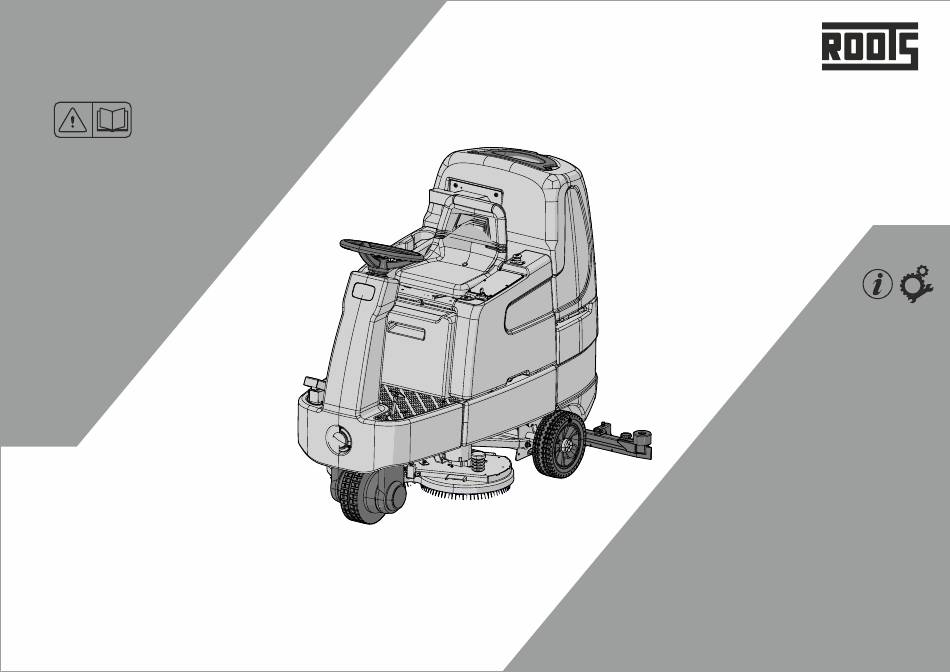

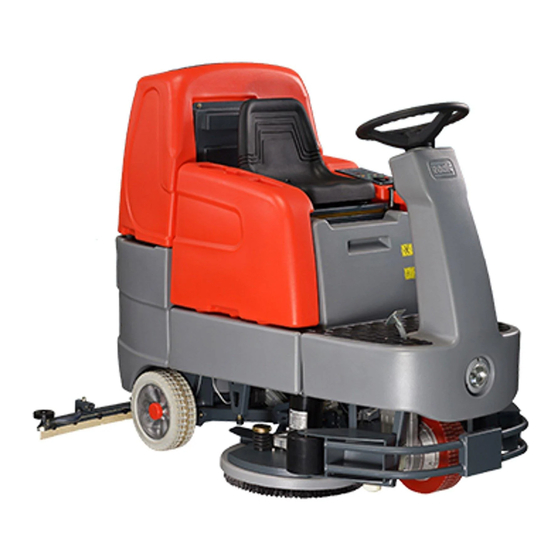

- Page 1 RootsScrub RB 800/950 Ride On Scrubber Drier Battery 200Ah 240Ah 320Ah Read this manual completely and understand the Operator’s Manual instructions before operating the machine. “English Version”...
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT NOTE: Table Of Contents & Important Note Roots Multiclean Ltd. (RMCL) is not liable for any legal claims that may arise as Introduc on a direct or indirect result of the contents of this manual. Technical Specifica ons Roots Multiclean Ltd. -
Page 4: Introduc On
The appropriate Accident Prevention Regulations as well as applicable general regulations ROOTS reserves the right to change the product or contents of this manual pertaining to Safety and Health at the work place must be adhered to by the without prior information. - Page 5 Prior to first operation, read the manual carefully and strictly comply with the instructions contained. The Operator’s Manual is an integral part of the machine and must not be misplaced. RootsScrub RB 800/950...
-
Page 6: Technical Specifica Ons
Scrubbing width - 800 mm Brush load - 43 Kg Drive motor power - 750 W Fresh water tank - 120 L Vacuum pressure - 1650 mm of H₂O Dirty water tank - 120 L Airflow rate - 33 L/sec RootsScrub RB 800/950... - Page 7 Scrubbing width - 950 mm Brush load - 48 Kg Drive motor power - 750 W Fresh water tank - 120 L Vacuum pressure - 1650 mm of H₂O Dirty water tank - 120 L Airflow rate - 33 L/sec RootsScrub RB 800/950...
-
Page 8: A Er Sales Support
Well trained engineers to take care of the equipment. þ 8:00 am to 7:00 pm System driven scheduled periodic maintenance. þ Genuine spare parts. þ Toll free number assistance for breakdown. Customer Support System Process Customer CSS Executive Engineer Site Location RootsScrub RB 800/950... -
Page 9: Safety Instruc Ons
Ground cleaning machines may be run by qualified personnel only. Ÿ misuse inaccurate adherence of instruction or The machine may be used for cleaning such surfaces approved by the Ÿ prescribed work routine. owner or this authorized representatives. RootsScrub RB 800/950... - Page 10 Batteries must not be connected or disconnected when conducting Ÿ The operator must always use safety gloves, safety helmet, shoes while electricity. Ÿ operating/maintaining the machine. Do not use harsh chemicals to clean the machine. Ÿ RootsScrub RB 800/950...
- Page 11 . - Turn the machine off and disconnect the mains plug before cleaning and maintaining the machine, when replacing parts or when changing over to another function. Safety Gear: As necessary RootsScrub RB 800/950...
- Page 12 General Warning Caution Ecological Hazard Manual Toxic Hazard 5.0 mm Max. 10° Water Level Do Not Use High Max. Water Max. Inclination Remove Key Unplug Battery Pressure Jets Wading Do Not Tamper Electrical Hazard No Smoking Recycle RootsScrub RB 800/950...
- Page 13 Old machines contain materials that can be recycled. Please arrange for the proper recycling of old machines. Batteries and actuators contain substances that must not enter the environment. Please dispose of your old machines, batteries and actuators using appropriate collection systems. RootsScrub RB 800/950...
-
Page 14: Know Your Machine
15. Safety Bumper 6. Dirty Water Tank 16. Squeegee 7. Brush Head 17. Drain Hoses 8. Float 18. Fresh Water Fill Port 9. Debris Tray 19. Brake Pedal 10. Tank Lock 20. Brush 21. Off-Board Battery Charger RootsScrub RB 800/950... -
Page 15: Decals On The Machine
DECALS ON THE MACHINE These labels appear on the machine in the locations indicated. If any label becomes damaged or illegible, install a new label in its place. 1. Roots - silvergrey 2. Fresh water filling 3. Remove key 4. Read instruction manual 5. -
Page 16: 12.1 Machine Opera On
If any part of the opera on and safe use of this equipment is not completely understood, consult an authorized dealer for a complete explana on. RootsScrub RB 800/950... - Page 17 Remove the door assembly. è Place the battery on the machine. è Plug the battery terminals to the machine. è Install the door assembly back in position and lower the seat. è Now the machine is ready to use. è RootsScrub RB 800/950...
- Page 18 Allow the cleaning agent to act on the floor for approx. 5 or 10 minutes, · complying with the manufacturer's instructions. Scrub the floor once again while the squeegee is lowered. · Too much foam indicates excessive dosage or improper suitability of · detergent for the existing kind of dirt. RootsScrub RB 800/950...
- Page 19 Used to change the water flow from minimum to maximum. A. Key Switch- Turns the electrical system On/Off. B. Horn Button- 5. Control Panel- Actuates the electric horn. Houses all the controls of the machine. C. Direction Selector- Selects the direction of travel. RootsScrub RB 800/950...
- Page 20 Glows when there is an error in the drive motor or controller. J. Battery Charge Status Indicator Lamp- Shows the status of the battery. K. Hour meter & Error Code Display- Displays the total hours of machine use and any error in the electronic module. RootsScrub RB 800/950...
- Page 21 3. Loosen the fastening knobs/strips and remove the lip. Turn or replace the Care should be taken while mounting brushes. lip if necessary. Follow the same for the inner lip also. Do not stand on the brush head. RootsScrub RB 800/950...
- Page 22 In case of an emergency or malfunction - switch of key and disconnect initial position). Press the brake pedal to slow or stop the machine. battery plug. Proceed to the first driving trials on a clear training ground until the driver is acquainted with the elements and their functions. RootsScrub RB 800/950...
- Page 23 - Remove the collection tray and clean with fresh water. - Clean the dirty water tank with clean water. Place the water hose into the fill port to filter and fill the tank. Do not fill water beyond a temperature of 50°C. RootsScrub RB 800/950...
- Page 24 - Never open the cover electrical module in dusty areas. - DO NOT TAMPER WITH THE ELECTRICAL MODULE OR THE CONTROLLER. - Do not dispose the replaced electrical/electronic components in to the environment. RootsScrub RB 800/950...
-
Page 25: Maintenance
Check the parking brake limit switch ( if found. Disable switch on used). This alarm will reset by resetting the keyswitch (-S1). Key-off sequence detected Check the key switch(-S1) connections Check your settings: if the controller prom fail repeats this alarm, change it RootsScrub RB 800/950... - Page 26 Clean electro-motor from carbon dust and check the accessible carbon brushes for smooth running and condition, replace if required Grease steering pinion and gear ring Check joints at squeegee holder and grease if required Greasing point RootsScrub RB 800/950...
-
Page 27: Troubleshoo Ng
Remove and clean Poor water recovery Dirty water tank is full Empty dirty water tank Suction hose is clogged Remove debris Squeegee is clogged Remove debris Squeegee lip is worn Rotate or replace lips Faulty vacuum hose Contact service RootsScrub RB 800/950... -
Page 28: Do & Don'ts
Do not mix brushes and use. û Do not park the machine by exposing it to the natural elements. û Do not use the machine to tow or push other equipments. Do not over fill the distilled water in the battery. û RootsScrub RB 800/950... -
Page 29: Ba Ery Instruc Ons
(in relation to the battery type) requires changing of the plug coding Roots cannot be held liable for damages resulting from the fact that nominal voltage. the initial charging has not or insufficiently been done. - Page 30 -Any splashes of acid in the eyes or Charge the batteries in a well ventilated area. on the skin must be rinsed throughly Do not tamper with the charger settings. with plenty of clear pure water. -Then consult a doctor immediately! RootsScrub RB 800/950...
- Page 31 The battery must be kept clean and dry to prevent creeping current. Any liquid poles (plus to plus and minus to minus) to the disconnected battery charger. in the battery container must be extracted and disposed of according to The battery charger should then be switched on. regulations. RootsScrub RB 800/950...
- Page 32 Old batteries with this sign are recyclable economic goods and should be brought back into the recycling process. Old batteries which are not brought back into the recycling process, have to be dealt with as dangerous materials under the observance of all regulations. RootsScrub RB 800/950...
- Page 34 Roots Multiclean Ltd. R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India. Phone: +91 (422) 4330 330, E-mail: rmclsales@rootsemail.com Web: rootsmulticlean.in, Toll Free: 1800 41 99 77 9...
