Summary of Contents for ROOTS Wizzard 340 Pump

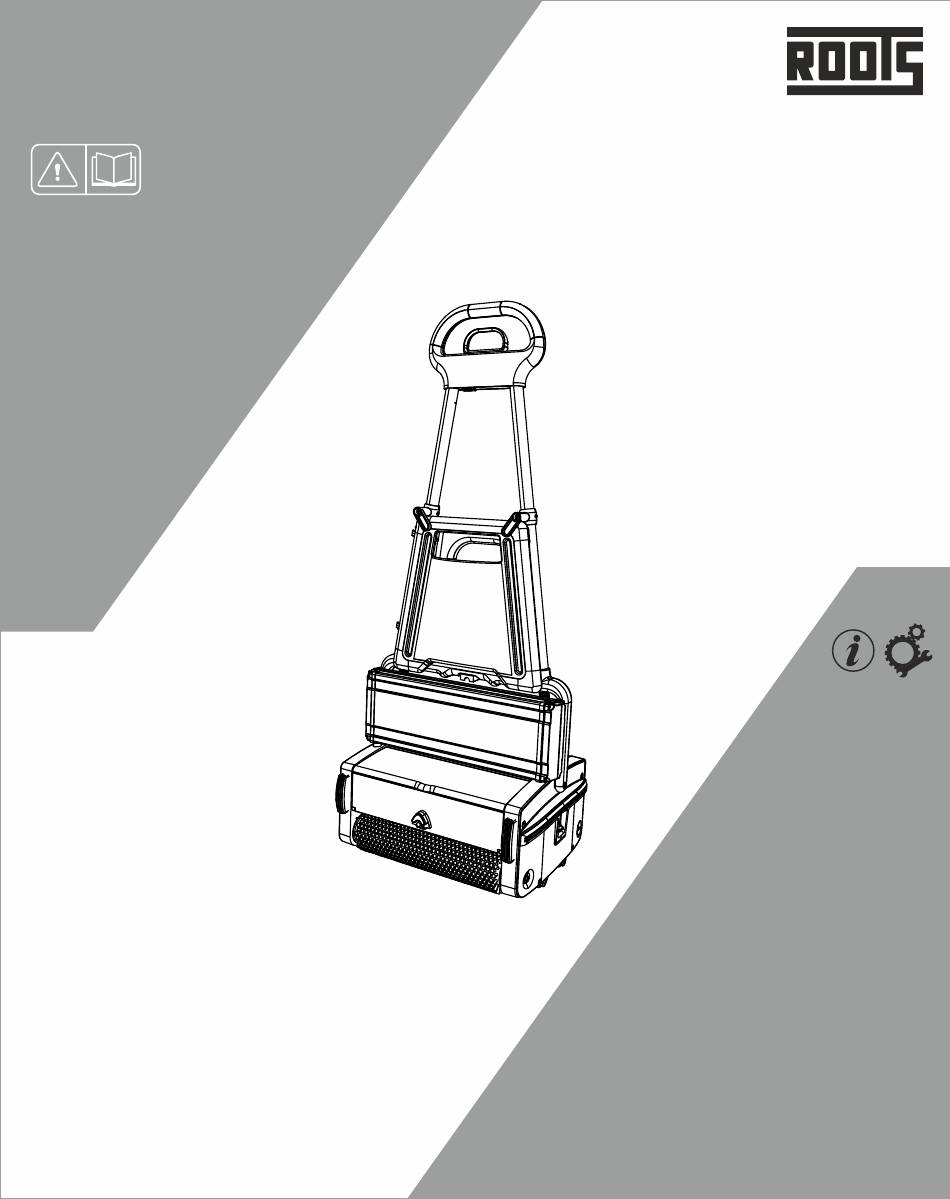

- Page 1 Wizzard/Pump/Battery Mini Floor Scrubber Drier Battery Read this manual completely and understand the Operator’s Manual instructions before operating the machine. Wizzard 340 Pump - Battery “English Version”...
- Page 2 Wizzard 340 Pump - Battery...
-
Page 3: Table Of Contents
Battery Instructions IMPORTANT NOTE: MACHINE DATA Roots Multiclean Ltd. (RMCL) is not liable for any legal claims that Please fill at the time of installation for future reference: may arise as a direct or indirect result of the contents of this manual. -
Page 4: Technical Specification
Fresh water tank - 4 litres Runtime - 50 minutes Brush speed - 400 rpm Scrubbing width - 315 mm Cleaning capacity Weight - 25 kg ( Theoretical) - 350 m²/hr Width - 440 mm Length - 378 mm Wizzard 340 Pump - Battery... -
Page 5: Introduction
The letter should be the machine comes with our Roots promise of quality, efficiency sent within 24 hours of receipt of the machine. - Page 6 Focus on your business while we take care of your equipment. þ Well trained engineers to take care of the equipment. þ System driven scheduled periodic maintenance. þ Genuine spare parts. þ Toll free number assistance for breakdown. Wizzard 340 Pump - Battery...
-
Page 7: Know Your Machine
3. Tank fresh water 11. Charger adapter 4. Battery pack 12. Mode selector 5. Battery switch 13. Brush pressure adjustment 6. Pump housing 14. Status LED 7. Nozzle 15. Allen key 8. Brush 16. Charging socket Wizzard 340 Pump - Battery... -
Page 8: Safety Instructions
The operator must use the machine in accordance to its · intended fields of application. During operation, the operator must take account of local · conditions (stairs, obstacles) and of other persons, particularly children. Wizzard 340 Pump - Battery... - Page 9 - Use of the machine in areas prone to explosion hazards is strictly forbidden. Do not direct water or other liquids into the control unit of your machine, risk of damaging the equipment or short circuit. Wizzard 340 Pump - Battery...
- Page 10 Ecological Hazard Manual Do Not Use High Do Not Use High Toxic Hazard Disconnect Powercord Pressure Jets Pressure Jets Do not let powercord come in contact with water or other fluids. Electrical Hazard No Smoking Wizzard 340 Pump - Battery...
-
Page 11: Machine Operation
Fit the top handle over the pipe handles and secure them Ÿ with washer and screw (2 Nos). Ensure that the label on the top handle is facing the front of the machine. Wizzard 340 Pump - Battery... - Page 12 Fix the two brushes using the brush shafts. Ÿ Secure the allen key in the slot Ÿ provided in the handle tube for The pull handle is used to spray fresh water in front of the Ÿ further usage. machine. Wizzard 340 Pump - Battery...
- Page 13 Switch off the machine and remove the brushes. Ÿ Clean the machine and brushes. Ÿ Disconnect the battery from the machine and remove it. Ÿ The battery can be charged separately. Ÿ Wizzard 340 Pump - Battery...
-
Page 14: Maintenance - Troubleshooting
Drum sprocket bearing seized Clean drum and bearings and Build up of dirty hair etc. around bridge Drum not rotating remove dirt and build up springs Plastic gears in gearbox stripped Drum rubber sleeve loose on drum Wizzard 340 Pump - Battery... -
Page 15: Do's & Don'ts
û Do not dispose this device with unsorted waste. û Do not use this machine to clean rough uneven surfaces. û Do not use this machine outdoors. û Do not store the machine outdoors. Wizzard 340 Pump - Battery... -
Page 16: Battery Instructions
Do not dispose this device with unsorted waste. Improper disposal may be harmful to the environment and human health. Please refer to your local waste authority for information on return and collection systems in your area. Wizzard 340 Pump - Battery... - Page 17 Wizzard 340 Pump - Battery...
-
Page 18: Roots Multiclean Ltd
Roots Multiclean Ltd. R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India. Phone: +91 (422) 4330 330, E-mail: rmclsales@rootsemail.com Web: rootsmulticlean.in, Wizzard 340 Pump - Battery Toll Free: 1800 41 99 77 9...
