Boyo VTC307M User Manual

BOYlJ
'! $f.H
Re-ar VIew Camero

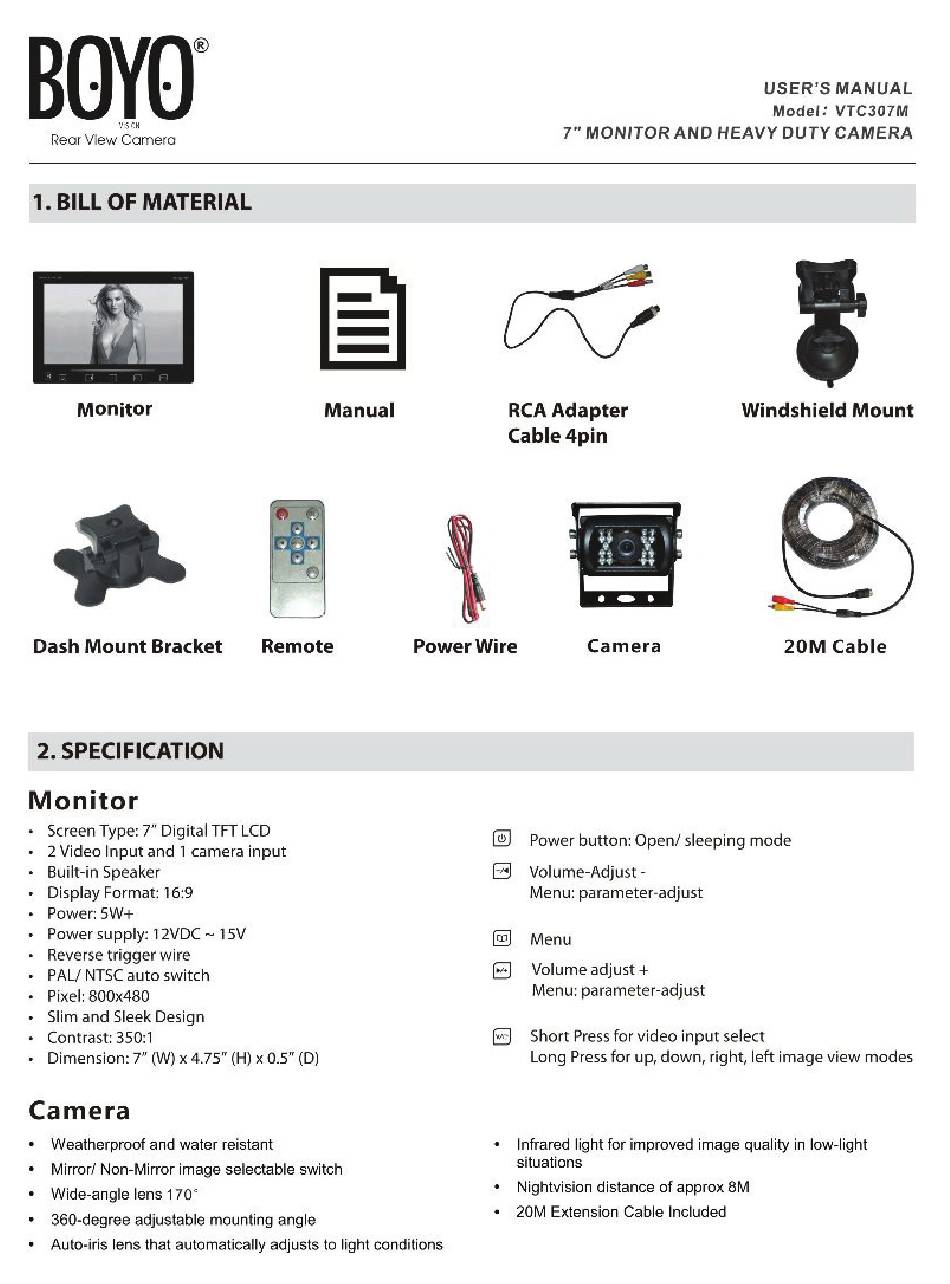

1. BILL OF MATERIAL
Monitor
Manual
Dash Mount Bracket
Remote
2. SPECIFICATION
Monitor
Screen Type: 7" Digital TFT LCD
2 Video Input and 1 cam era input
Built -in Speaker
Display Format: 16:9
Power:SW+
Pow er supply: 12VDC - 15V
Reverse trigger w ire
PA.L/ NTSC au to switch
Pixel: 800x480
Slim and Sleek Design
Contrast: 3S0:1
Dimension: 7"
0/'J)
x 4.75"
(H)
x 0.5" (D)
Camera
W eatherproof and water reistant
• Mirror/ Non-Mirror image selectable switch
Wide-angle lens 170<
360-degree adjustable mounting angle
\
USER'S MANUAL
Model:
VTC307M
7" MONITOR AND HEAVY DUTY CAMERA
RCA Adapter
Cable4pin
-,v .- v,-
·H -
:Y "'
~,.
--- "
.
-
.
Windshield Mount
Power Wire Camera
20M Cable
@
Power button: Open/ sleeping mode
El
Volume-Adjust -
Menu: param et er-adjust
@)
Menu
EJ
Volume adjust+
Menu: parameter-adjust
B
Short Press for v ideo input select
Long Press for up, down, right, left image view m odes
Infrared light for improved image quality in low-light
situations
• Nightvision distance of approx 8M
20M Extension Cable Included
Auto-iris lens that automatically adjusts to light conditions
