1.4.3 JST PH – Sen so rs an d RS485
The JST PH style connector is used for motor encoder, analog, digital, I2C, RS485, and UART connections on the
Expansion Hub. These are all 4-pin connections except for the RS485 and UART which are 3 pin. The connectors are
keyed (they only insert in one orientation) and are friction locking. In Figure 2 the keying feature aligned with the cable is
shown.
REV Robotics recommends in most cases that teams use pre-made cables because the quality of the crimp is better
when made using industrial tooling. These cables can be bought directly from the REV Robotics Website (Table 4 and
Table 5) or through other online vendors.
JST PH - JST PH
JST PH - JST PH
JST PH - JST PH
JST PH Cable Extension Board
JST PH - JST PH
JST PH - JST PH
JST PH - JST PH
For teams which would like more information regarding the connectors or to try crimping their own cables, Table 6 lists
the appropriate part numbers.
Connector Specifications
• 2A Continuous Current (24AWG)
• 2.0mm Pitch
Accepts 32-24AWG Wire
•
Expansion Hub Guide – Rev 4

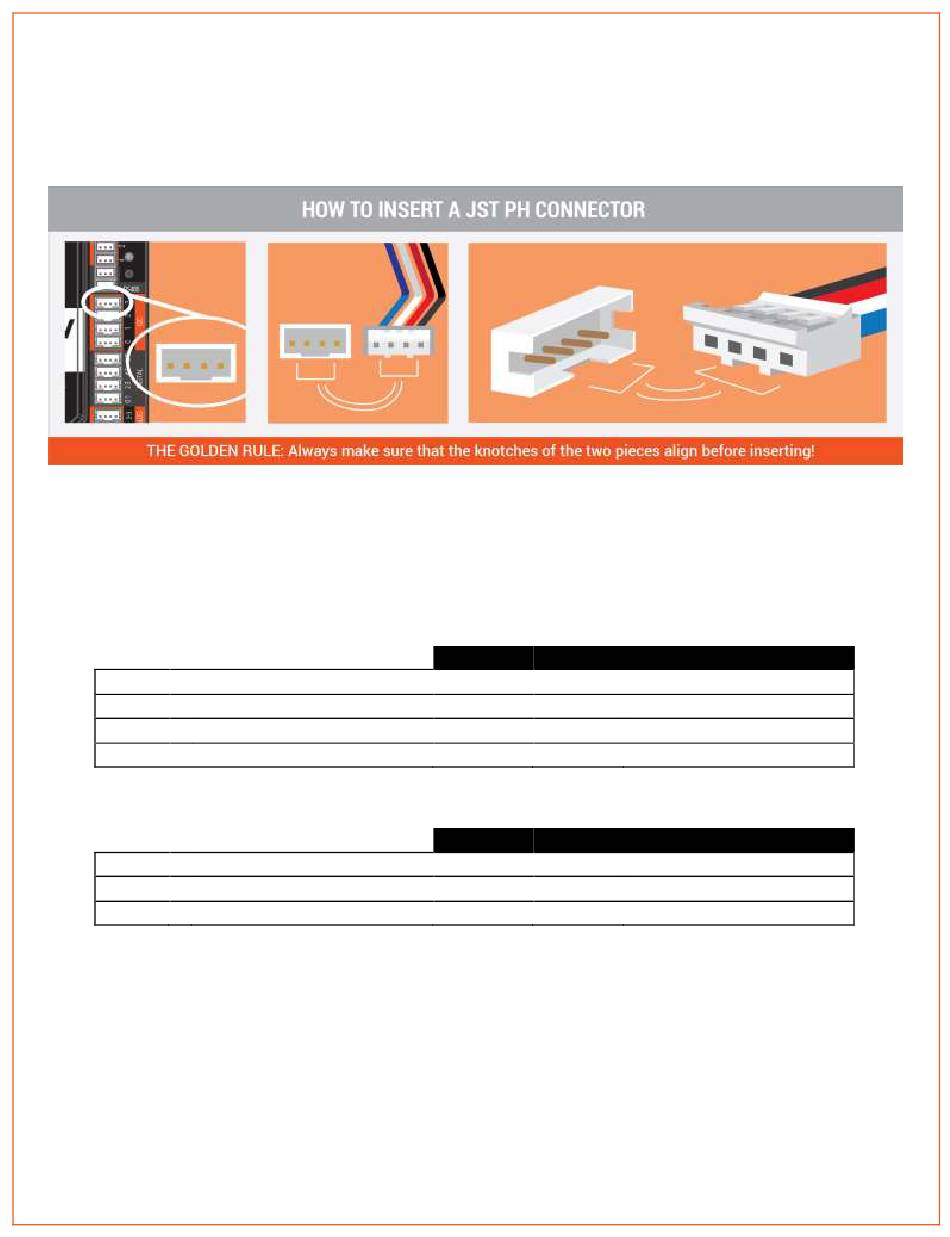

Figure 2: How to Use a JST PH Cable
Table 4: Premade 4-pin JST PH Cables and Accessories
Table 5: Premade 3-pin JST PH Cables
© REV R obotics, LLC 2017
Pins Length REV Robotics Part Number
4 pins 20cm
4 pins 30cm
4 pins 50cm
4 pins
Pins Length REV Robotics Part Number
3 pins 20cm
3 pins 30cm
3 pins 50cm
REV-31-1406
REV-31-1407
REV-31-1408
REV-31-1388
REV-31-1416
REV-31-1417
REV-31-1418
