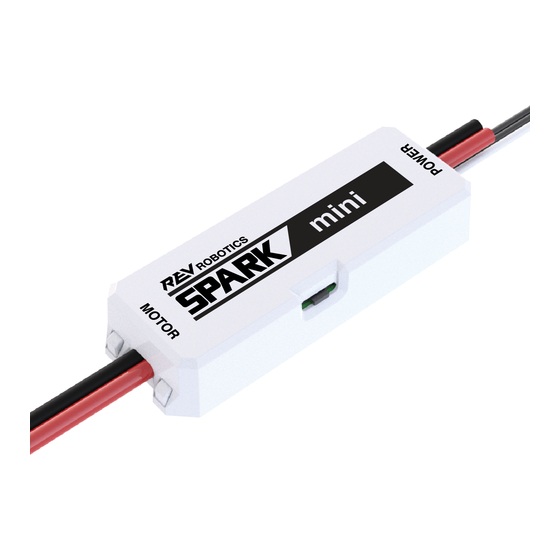

The SPARKmini Motor Controller is an inexpensive in-line brushed DC motor controller designed to give FIRST® Tech
Challenge teams more bang for their buck. It offers the same performance characteristics as the REV Expansion Hub
motor ports in a small 60mm x 22mm footprint. Now FTC teams can add a SPARKmini Motor Controller to utilize more
than four DC motors from a single Expansion Hub in a space-efficient package.
This Quick Start Guide gives a brief overview of the SPARKmini features and the necessary information to get started.

POWER AND MOTOR CONNECTIONS

The SPARKmini has three integrated wires with connectors dedicated to power, control, and the motor; one XT30
connector for power, one 3-wire servo-PWM connector for control, and one JST-VH connector for the motor. Figure 1
shows each of these connections.
Power
XT
Control
Serv
/ o
PWM
Connect the power wire to a free XT30 port on the REV Expansion Hub (REV-31-1153) or through an XT30 Power
Distribution Block (REV-31-1293). Connect the control wire to an open servo port on the REV Expansion Hub and the
motor wire a JST-VH port on a motor, like the REV HD Hex Motor (REV-41-1301) or the REV Core Hex Motor (REV-41-
1300).
DO NOT reverse polarity on the power input connections. The SPARKmini does not contain reverse polarity
protection. This can permanently damage the SPARKmini and will void the warranty.
DO NOT swap the motor and power connections. This can result in uncontrolled motor operation and can permanently
damage the SPARKmini, voiding the warranty.
REV-31-1230-QS-01
30

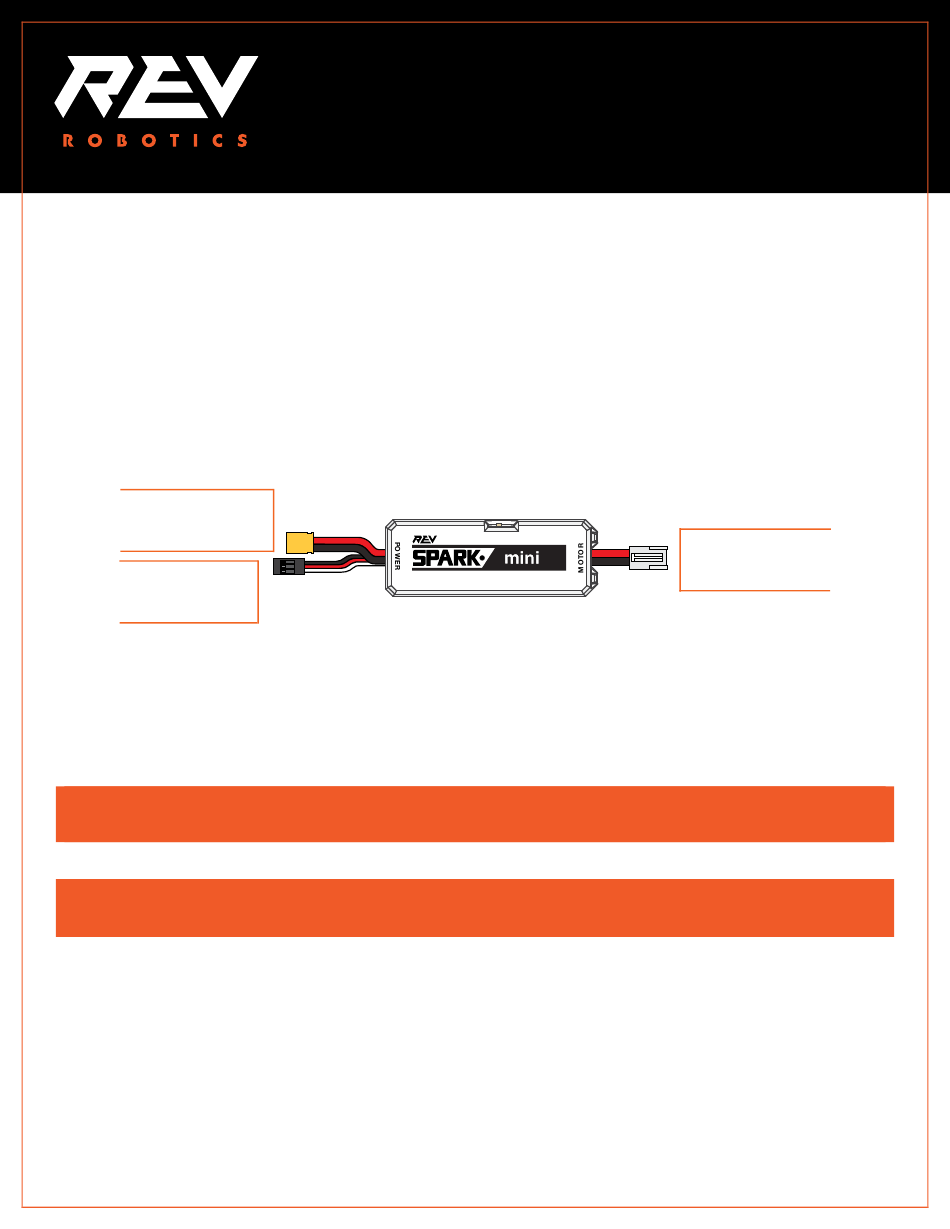

Figure 1 - SPARKmini Connection Diagram
Copyright © 2018 REV Robotics, LLC
SPARKmini MOTOR CONTROLLER
C
B
ROBOTICS
CAUTION
CAUTION
QUICK START GUIDE
Motor
JST VH
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPARKmini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REV Robotics SPARKmini

Summary of Contents for REV Robotics SPARKmini

  • Page 1 Challenge teams more bang for their buck. It offers the same performance characteristics as the REV Expansion Hub motor ports in a small 60mm x 22mm footprint. Now FTC teams can add a SPARKmini Motor Controller to utilize more than four DC motors from a single Expansion Hub in a space-efficient package.
  • Page 2 Figure 2 - Brake Coast Switch The SPARKmini will indicate whether it is in Brake or Coast mode via the Status LED, located in the center of the housing, whenever it is outputting zero-power. Solid or flashing blue indicates Brake Mode while solid or flashing yellow indicates Coast Mode.
  • Page 3 Output frequency Input pulse width range 2500 µs Input frequency Input timeout 65.5 Input deadband ±10 µs Input low-level voltage -0.3 Input high-level voltage Weight 0.87 Dimensions (excluding wires) 60 x 22 x 12 REV-31-1230-QS-01 Copyright © 2018 REV Robotics, LLC...
