1.4.2 JST VH – Moto r Po wer
Motor Power connections on the Expansion Hub use the JST VH style connector. This connector is keyed and locking
with a small latch (Figure 1) which must be depressed to release the cable.
REV Robotics recommends in most cases that teams use pre-made cables because the quality of the crimp is better
when made using industrial tooling. These cables can be bought directly from the REV Robotics Website (Table 2) or
through other online vendors.
JST VH - JST VH
JST VH - JST VH
JST VH - JST VH
JST VH - Anderson Power Pole Type
JST VH Cable Extension Board
For teams which would like more information regarding the connectors or to try crimping their own cables, Table 3 lists
the appropriate part numbers.
Connector Specifications
• 10A Continuous Current (16AWG)
• 3.96mm Pitch
Accepts 22-16AWG Wire
•
Contact, JST VH, 18-22AWG
Contact, JST VH, 16-20AWG
Housing, JST VH, 2-pin
Header, JST VH, 2-pin, Top Entry
Header, JST VH, 2-pin, Side Entry
Connector Datasheet:
Expansion Hub Guide – Rev 4

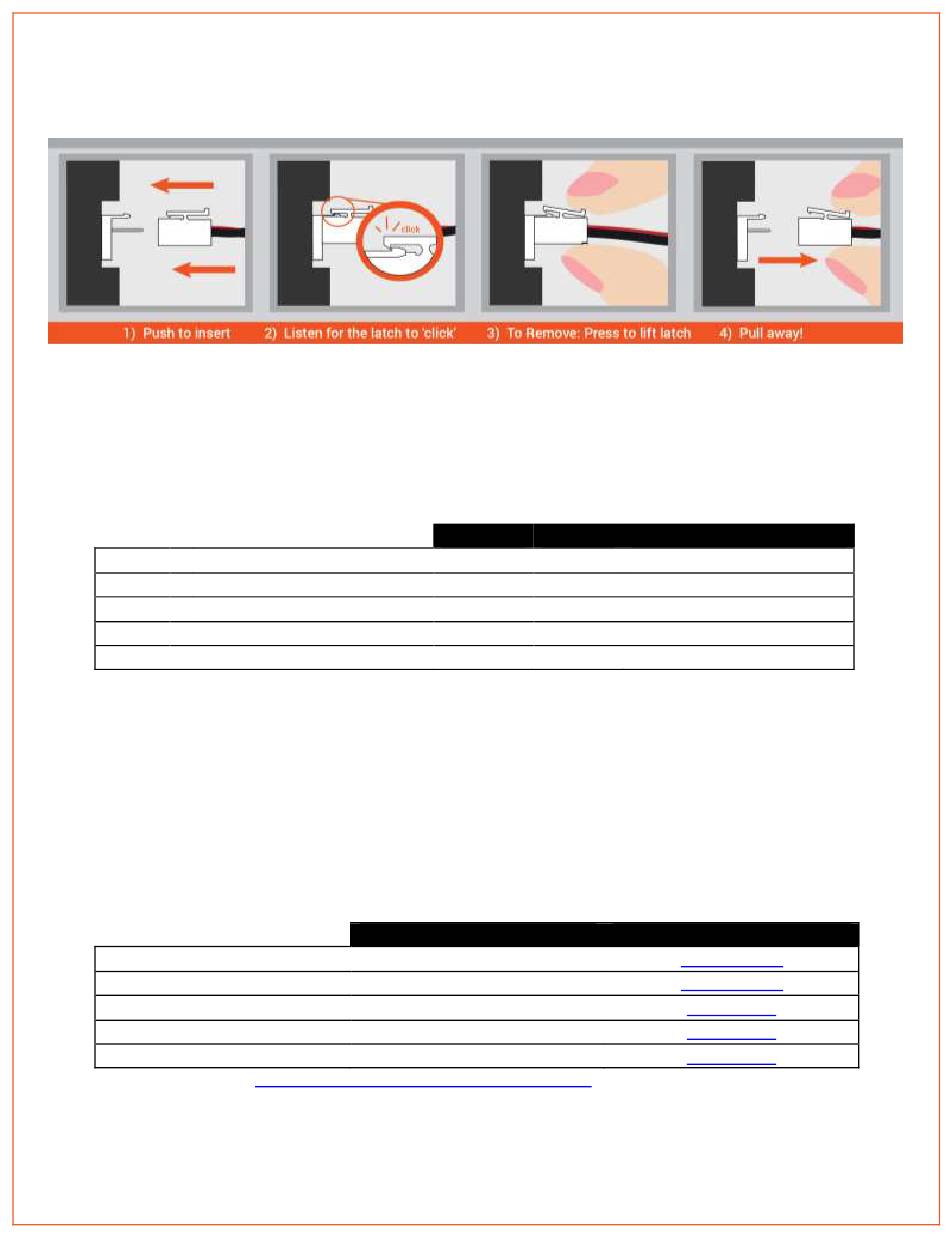

Figure 1: How to Use a JST VH Cable
Table 2: Premade JST VH Cables and Accessories
Table 3: JST VH Connector Part Number Reference
Manufacturer Part Number
SVH-21T-P1.1
SVH-41T-P1.1
http://www.jst-mfg.com/product/pdf/eng/eVH.pdf
© REV R obotics, LLC 2017
Pins Length
2 pins 20cm
2 pins 30cm
2 pins 50cm
2 pins 12cm
2 pins
VHR-2N
B2P-VH
B2PS-VH
REV Robotics Part Number
REV-31-1411
REV-31-1412
REV-31-1413
REV-31-1381
REV-31-1429
DigiKey Part Number
455-1133-1-ND
455-1319-1-ND
455-1183-ND
455-1639-ND
455-1648-ND
4
