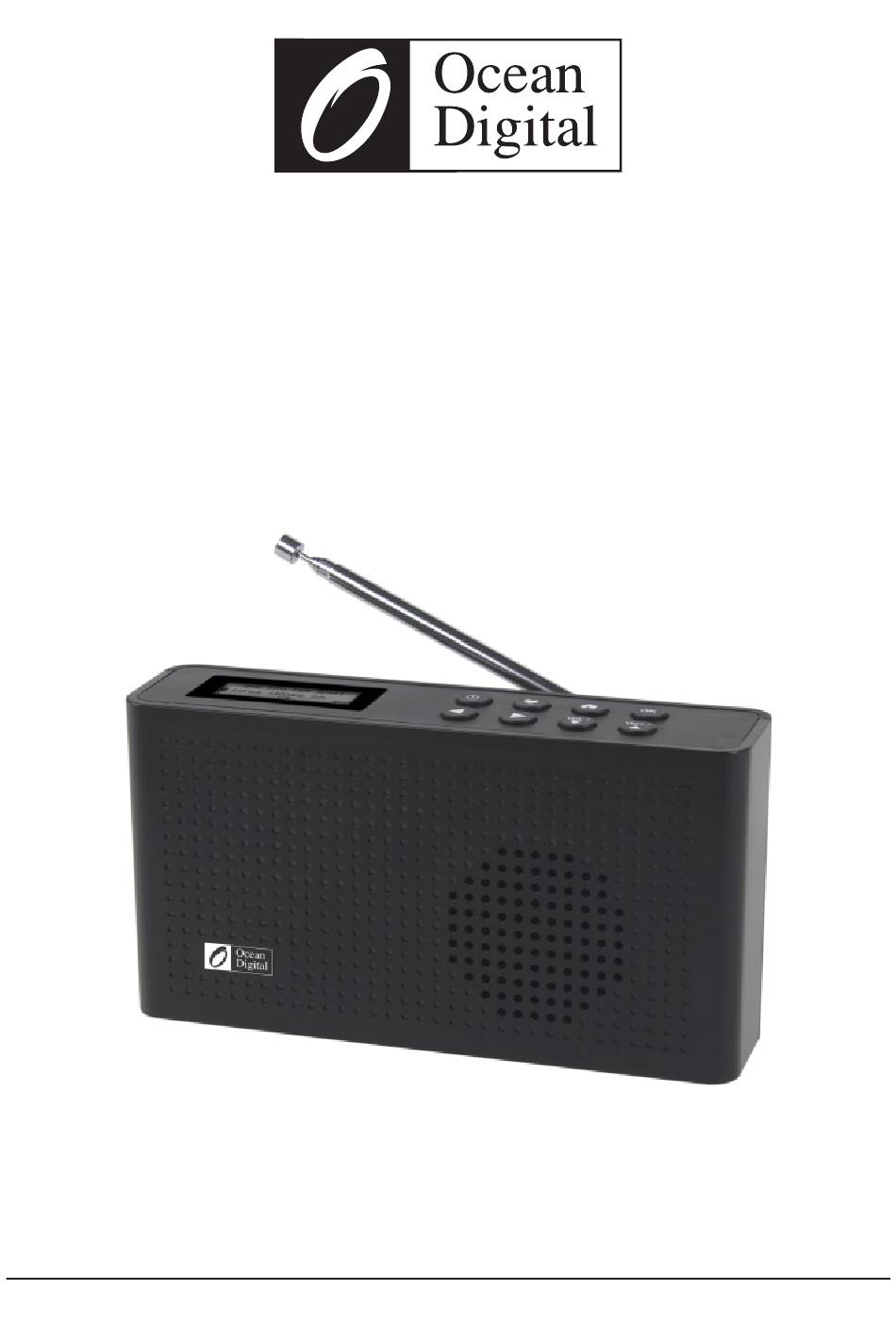

- Page 1 User Manual Portable Internet Radio Model: WR-26 Please read this user manual carefully before using the receiver...
-
Page 2: Table Of Contents
Contents Location of controls ..........1 Getting started ...........4 Charging battery ..........4 Connecting to your Wireless network ....4 Overview of features and functions ......5 Internet Radio ............6 Media Centre .............8 DAB+/DAB Radio ..........9 FM Radio ............10 Bluetooth playback ...........11 Sleep Timer Setting ...........11 Configuration ...........12 Add your favourite URL/ Manage favourite by PC..16 Trouble Shooting ..........17... -
Page 3: Location Of Controls
Location of controls - 1 -... - Page 4 Press and hold to power on/off Press and hold to add station to favourite Press and release to recall the favourite list Return to main menu / return to the playing screen 4. OK Confirm selection Stop playback / resume playback under Internet radio Mute under DAB, FM and Bluetooth 5.
- Page 5 Before you start Please ensure the following is ready: • You have a broadband internet connection. • A wireless broadband router is connected to the internet successfully. The radio supports Wireless B, G and N connection (Wireless N router can also be used with the setting on B or G). •...
-
Page 6: Getting Started
Getting started The radio is powered by the built-in lithium battery. A USB cable is supplied in the product package. Press and hold the [ ] button to power on. To power off the radio, press and hold the same button. Charging battery You can check the level of battery power remains on the radio. -
Page 7: Overview Of Features And Functions
Add AP(Scan) Add/Remove AP Remove AP AP:[ ] • It will start scanning the availble Wi-Fi networks around. Scroll to your network and press [ OK ] to confirm. If your wifi network has a password protected, it will ask you to enter the passphrase / password. Here are the steps to enter the password. -
Page 8: Internet Radio
Bluetooth - Bluetooth playback, to play audio stream (receive) from another Bluetooth enabled device after pairing/connected each other. Sleep Timer - Enable the timer to turn the radio in standby after the selected time elapsed. Configuration - More options/settings available to personalize as desired. Note: - Always use the ◄... - Page 9 ▪ Search Instead of browsing the radio station list, you can input a few characters of the desired station to filter out / short list the stations. ▪ History The radio memorizes the stations you have listened up to 99 stations. If you have listened more than 99 stations, it will supersede the first station that you have listened.
-
Page 10: Media Centre
Edit your favorite list On the Favorite list, choose the radio station you want to edit then press the [ ► ] button. It will enter the Edit menu with the following options: Move down - To move down the ranking of a station Move up - To move up the ranking of a station Delete - To delete a particular station Media Centre... -
Page 11: Dab+/Dab Radio
DAB Radio (Digital Audio Broadcasting) If there is Digital Audio Broadcasting (DAB) in your area, the radio can pick up the DAB stations as well (no internet connection is required). The radio supports both DAB and DAB+. Place the radio close to the window and extend the antenna as far as it can go or move in different direction to get the best reception. -
Page 12: Fm Radio
FM Radio To receive the ordinary FM stations (no internet connection is required), Place the radio close to the window and extend the antenna as far as it can go or move in different direction to get the best reception. On the main menu, choose FM Radio and press [OK] to start. -
Page 13: Bluetooth Playback
The device scans for Bluetooth devices in the reception range. • When the radio is found, your bluetooth device shows its name WR-26- XXXX (the XXXX is an identification code for your radio unit). -
Page 14: Configuration
Configuration Here you will find the complete settings / options available to configure your own tuner. On the main menu, navigate to Configuration setting. Press OK and you will see a list of options available. Network Wi-Fi Network • Add / Remove AP Add AP - It will scan out a list of wireless network around. - Page 15 choose the Wi-Fi channels to ensure the Wi- Fi performs satisfactory. We have already set the channels according to the requirement in different countries. Choose the country you are staying from the list to get the correct channel Date and Time The radio will set your local time automatically after the internet connection is completed.
- Page 16 Scroll to highlight and press OK to select your language of choice. English, French, Spanish, Italian, German, Dutch, Polish, Russian and Simplified Chinese are available. Local Radio The radio is set by default to detect the radio stations in your local area automatically through internet connection and these stations can be accessed by selecting Local Radio under Skytune >...
- Page 17 Resume when Power on This function is ON by default. The radio will resume to the last state of mode when the radio turns on next time, e.g. if it was playing radio station before power off, it will resume playing the last listened station when it turns on next time.
-
Page 18: Add Your Favourite Url/ Manage Favourite By Pc
Reset to Default You can do the reset to clear all the settings and return to default settings. ** Please note all the Station presets, Settings and configuration will be erased after you have performed the Reset. Note: In case the radio has no response or hang up, reset the radio by press and hold the button at the same time until the radio is powered off. -
Page 19: Trouble Shooting
Trouble Shooting Cause Problem Solutions • Confirm that a Wi-Fi or Ethernet Wired connected PC can access the internet (i.e. can browse the web) using the same network. • Check that a DHCP server is available, or that you have configured a static IP address on Network down the radio. - Page 20 Cause Solutions Problem • The station is not broadcasting at this time of the day (remember it may be located in a different time zone). • The station has too many people If your radio can trying to attach to the radio station connect to the server and the server capacity is network...
-
Page 21: Helpful Tips
1. If the Internet Radio keeps re-buffering radio station: The Internet Radio is streaming the data from the radio station via your broadband connection, if there is a high error rate on your broadband connection, or the connection is intermittent, then it will cause the Internet Radio to pause until the connection is re-established and it has received enough data to start playing again. -
Page 22: Technical Specification
This system is financed by the industry and ensures environmentally responsible disposal and the recycling of valuable raw materials. Ocean Digital Technology Ltd. Flat B, 12/F., Yeung Yiu Chung (No.8) Ind. Bldg., 20 Wang Hoi Road, Kowloon Bay, Hong Kong Email: support@oceandigital.com.hk...
