User Manual

Internet Radio

WR-230
Please read this user manual carefully before using the receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WR-230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ocean Digital WR-230

Summary of Contents for Ocean Digital WR-230

  • Page 1: Internet Radio

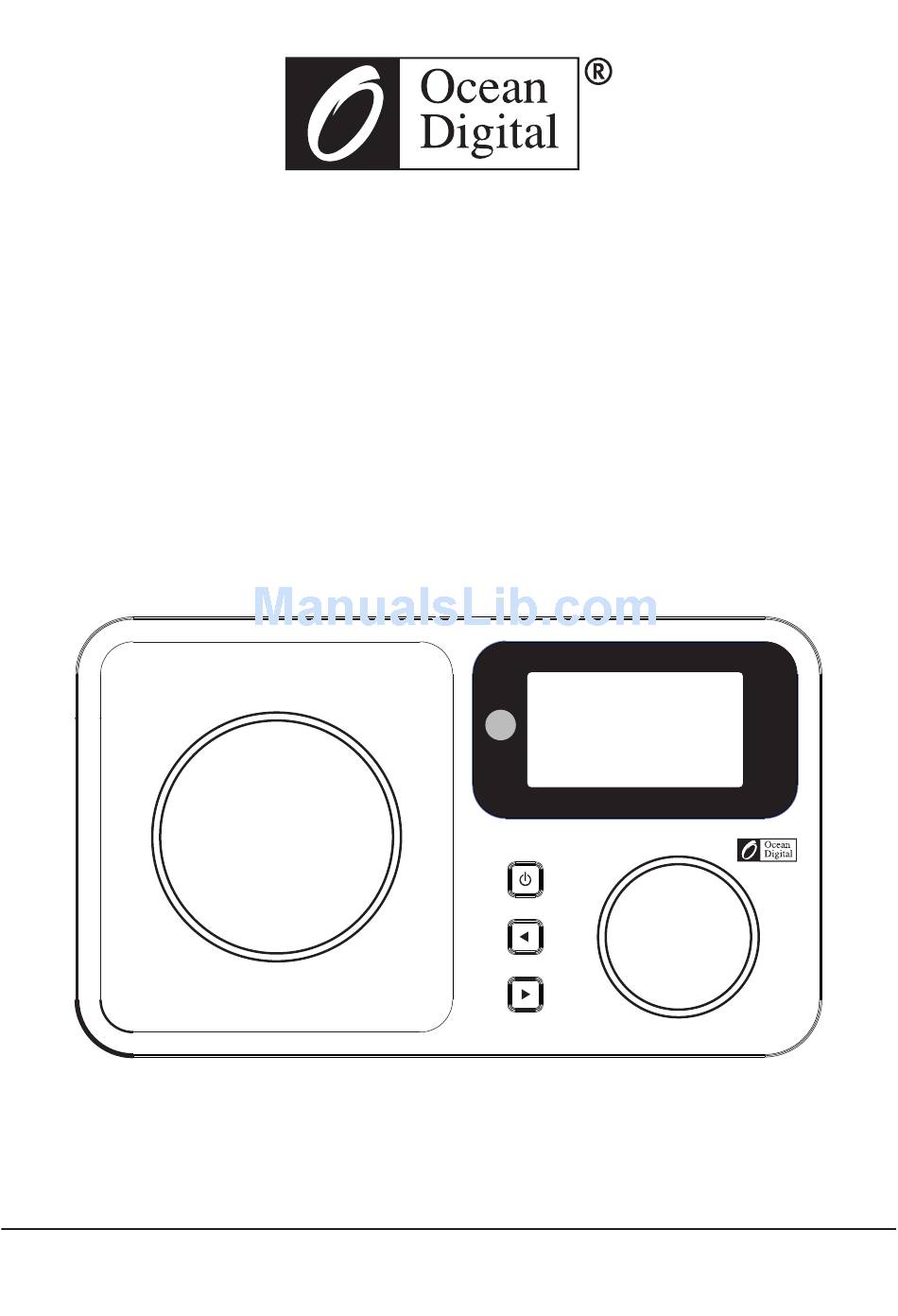

    User Manual Internet Radio WR-230 Please read this user manual carefully before using the receiver.
  • Page 2 Before you start Please ensure the following is ready: ž You have a broadband internet connection. ž A wireless broadband router is connected to the internet successfully. The radio supports Wireless B, G connection (Wireless N router can also be used with the setting on B or G).

  • Page 3: Location Of Controls

    Location of Controls Front 1. Remote control sensor 2. LCD display 3. Speaker 4. Left / Back button 5. Right button 6. Standby button 7. Volume / Dial / Select rotary knob (Rotate to adjust the volume or browse the menu. Push down the button to confirm selection) 8.

  • Page 4: Remote Controller

    Remote controller Switch speaker on/off Standby button 0... 9 Call up favorites/memory; input letters and numbers Favorites button Long pressing to preset station. Dim display illumination Press it briefly to recall station. Up cursor button Left cursor button Right cursor button OK Confirm selection Down cursor button Alarm button...
  • Page 5 Remote controller Key Definition key 0: ‘0’->‘DEL’（Delete button） key 1: ‘1’->‘@’->‘ ’（Space）->‘!’-> ”(double quotes) ->‘#’->‘$’->‘%’->‘&’-> ’（single quotes）->‘(’->‘)’->‘*’->‘+’->‘,’->‘-’->‘.’->‘/’->‘:’->‘;’->’<’->’=’->’>’->‘?’->‘[’->‘\’->‘]’->‘^’- >‘_’->‘’’->’{’->‘|’->’}’->‘~’ Key 2: ‘2’->‘A’->‘B’ ->‘C’->‘a’ ->‘b’ ->‘c’ Key 3: ‘3’->‘D’->‘E’ ->‘F’->‘d’ ->‘e’ ->‘f’ Key 4: ‘4’->‘G’->‘H’ ->‘I’->‘g’ ->‘h’ ->‘i’ Key 5: ‘5’->‘J’->‘K’ ->‘L’->‘j’ ->‘k’ ->‘l’ Key 6: ‘6’->‘M’->‘N’...
  • Page 6 5. It will display a list of the available Wi-Fi network available. 12:00AM HN-linksys DEMO KCG_AP1 < 6/10 > Select your Wi-Fi network, it will request to input the WEP (Wired Equivalent Privacy) or WPA (Wi-Fi Protected Access) code if your network is configured with the encryption code. If it is not configured with encryption code, it will connect to the network automatically.

  • Page 7: Using The Radio

    Using the Radio You can now start listening to thousands of radio stations over the world. You will find the options below on the main menu: -Internet Radio -Media Center -Information Center -Configuration Select <Internet Radio>, then <Radio Station/Music> to start listening the worldwide radio stations, My Favorite This is to show the list of your Favorite stations which have been assigned to the presets.

  • Page 8: Media Center

    Radio Station / Music Select this option, then you can select your desired radio station by Category, Genre or Location. Local Radio If you want to access quickly the radio station located in your area, select this function and it will display the list of the stations available in your area.

  • Page 9: Information Center

    5. From the ‘Media Sharing’ windows , the radio will be listed as an unknown device. Click on the unknown device listed, then click the ‘Allow’ button and then click ‘OK’. Allowing the Radio to Connect: Note: When you are playing the music under UPnP, you are able to change the mode of playback via selecting Media Player/Playback Mode.
  • Page 10 current weather and forecast of the selected region. If you want to add it to display when the ”and select “Add to Standby Display”. Then press unit on Standby, press the right key “" “Enter” to confirm. “Currently Date & Time” and “Currently Weather” will display alternately every 10 seconds under standby if the weather forecast display is activated.
  • Page 11 Network Wireless Network Configuration Select this to scan for wireless network available. There is an option using WPS function, which means you can set the wireless without enter any passwords for Wi-Fi protected if your router has the WPS function. Manual Configuration You can set the DHCP on or off, and enter the SSID as you known, or delete the connected WiFi.

  • Page 12: Troubleshooting

    Power Management This function is to allow the radio to go to Standby if there is no internet signal received in order to save power. The default setting is 30 minutes. When the radio does not receive any internet signal, the radio will go into Standby after 30 minutes. Other time frame for 5 minutes and 15 minutes are available.
  • Page 13 connect to the Wi-Fi network, and the Internet Radio display will show Bad ESSID or key. To overcome this problem you will need to add the Internet Radio’s MAC address to the list of allowed equipment in your access point. The Internet Radio’s MAC address can be found using the menu <Information Center ->System Information ->...

  • Page 14: Technical Specification

    Internet congestion while transferring it may stop/interfere with the quality of play. If this happens, check your internet connection speed- it must be faster than the speed of the streams. Technical Specification Model: WR-230 Power input: 7.5V 1.2A Power voltage: 100-240V~50/60Hz Wireless Network: IEEE802.11b/g/n...
