Ocean Digital WR-210CB User Manual

Internet radio with bluetooth
Hide thumbs Also See for WR-210CB:

Advertisement

Table of Contents

User Manual
Internet radio with bluetooth
WR-210CB
Please read this user manual carefully before using the receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WR-210CB and is the answer not in the manual?

Questions and answers

Steven Harris
February 26, 2025

Will other Ocean Digital product's (e. g., the WR-800F) remote control work with this product? Thank you

0

Subscribe to Our Youtube Channel

Related Manuals for Ocean Digital WR-210CB

Summary of Contents for Ocean Digital WR-210CB

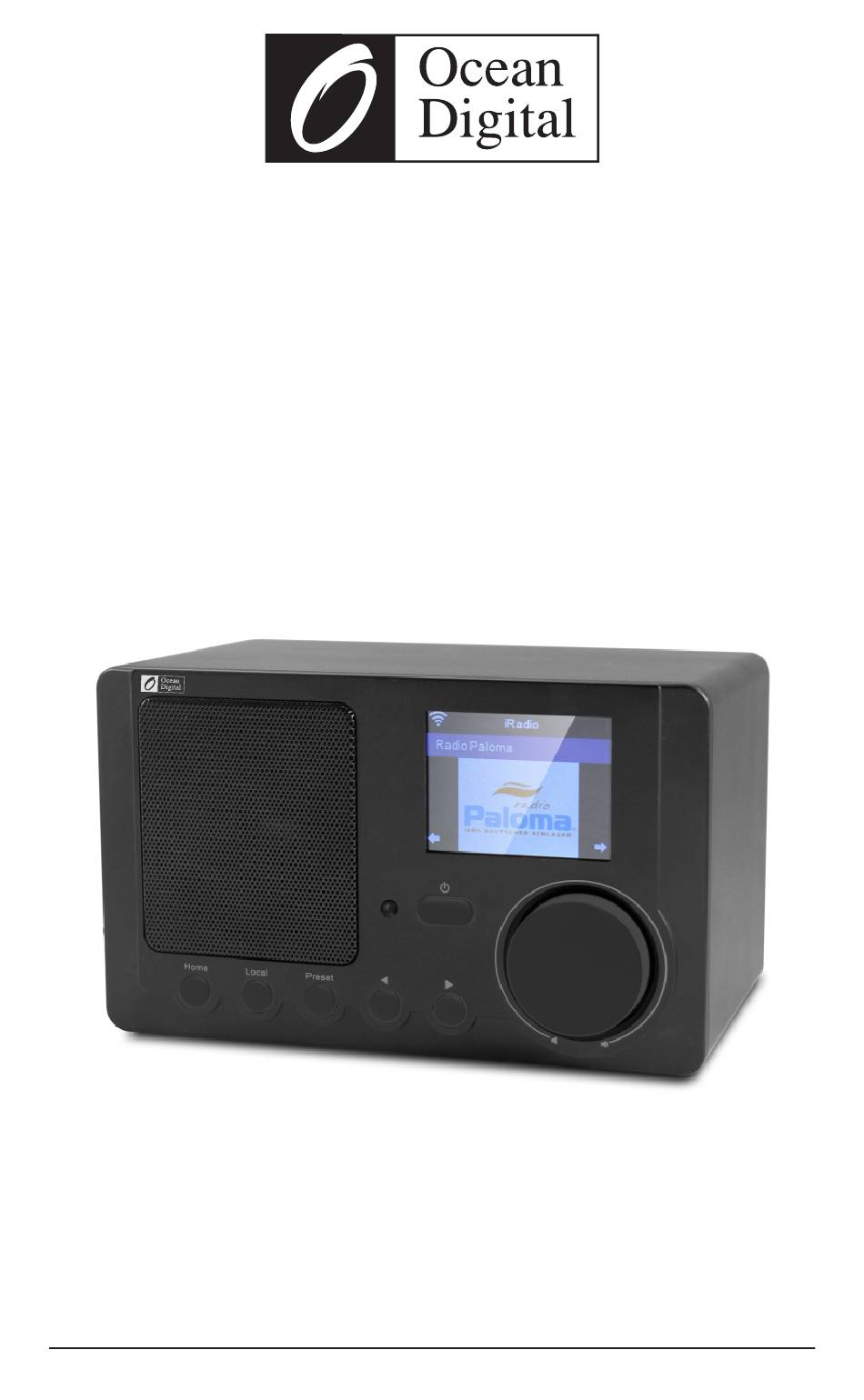

  • Page 1 User Manual Internet radio with bluetooth WR-210CB Please read this user manual carefully before using the receiver.

  • Page 2: Location Of Controls

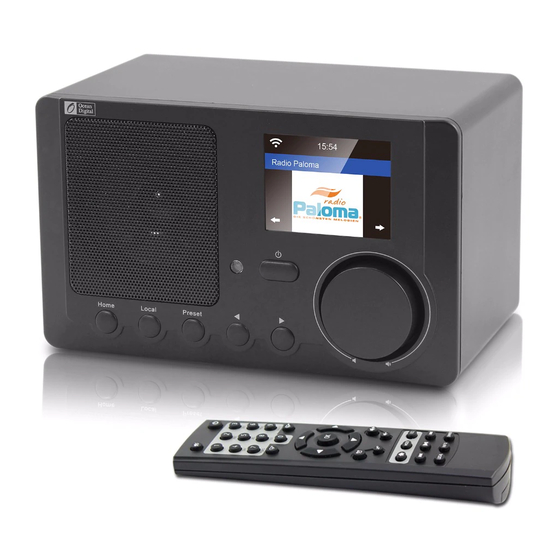

    Location of Controls 1. Standby button 2. Right button 3. Left / Back button 4. Preset button 5. Local button 6. Home 7. Infrared remote sensor 8. Speaker 9. TFT display 2.4” 10. Rotary control knob for Volume/Dial/Select – Rotate to adjust the volume/browsing menu, press the knob to select for confirmation...
  • Page 3 Remoter control : Mute : Standby button 3. 0-9: Favorite station key / input letters and numbers for WiFi Encryption code : Preset the current playing station to Favorite : Recall the favorite list 6. ▲: Cursor up 7. t : Cursor left / back to previous menu 8.

  • Page 4: Switching On The Radio

    Remote control character list Key“0”―― 0,‘DEL’ Key“1”―― ‘1’->‘@’->‘ ’（space）->‘！’-> “ (double quotes) ->‘#’->‘$’->‘%’->‘&’-> ’（single quotes）->‘（’ ->‘）’->‘*’->‘+’->‘，’->‘-’->‘.’->‘/’->‘:’->‘;’->‘<’->‘=’->‘>’->‘?’- >‘[’->‘\’->‘]’->‘^’->‘_’->‘`’->‘{’->‘|’->‘}’->‘~’ Key “2”―― 2,A,B,C,a,b,c Key“3”―― 3,D,E,F,d,e,f Key“4”―― 4,G,H,I,g,h,i Key“5”―― 5,J,K,L,j,k,l Key“6”―― 6,M,N,O,m,n,o Key“7”―― 7,P,Q,R,S,p,q,r,s Key“8”―― 8,T,U,V,t,u,v Key“9”―― 9,W,X,Y,Z,w,x,y,z Remark: press ’→’ to move to next character and press ’OK’ button to confirm.

  • Page 5: Connecting To Your Wifi Network

    It will ask you if you want to Enable the <Check Network when Power on>, it is suggested to choose <Yes>. Then the radio will always check the available WiFi network automatically. Connecting to your WiFi Network The screen below will appear. You can choose <Yes> to proceed to search for the available WiFi network.

  • Page 6: Internet Radio

    08:58 Internet Radio You can now start enjoying the internet radio. Internet Radio Choose <Internet Radio> from the menu, you can see several listed options. To start listening the radio stations worldwide, select <Radio Station/Music>. My Favorite This is to show the list of your Favorite stations which have been assigned to the presets.
  • Page 7 Shift up- To shift the selected station by one level up on the ranking Shift down – To shift the selected station by one level down on the ranking Rename – To rename the selected station Play – press and play the selected station Choose the radio station that you want to make with the above changes.

  • Page 8: Media Center

    Aux In You can enjoy the music from other audio devices by connecting the audio cable to the AUX IN connector at the rear of the unit, such as smart phone, MP3 player, etc. DLNA The Internet radio can play music stream from DLNA compatible device, provided that the Internet radio and other DLNA devices are under the same Wi-Fi network.
  • Page 9 2. Once installed, Windows Media Player will create a library from all the media files available to it on your PC. 2.1 Windows XP / Windows Media 11 2.1.1 To add new media files to the library, select’ File > Add to Library…>...
  • Page 10 2.2 Windows 7 / Windows Media Player 12 2.2.1 If you are using WMP 12, simply go to <File> and choose <Open> to retrieve the music files you would like to add to library. 2.2.2 Windows 7 or above requires the PC to be set as Home network and also with the Homegroup enabled to allow devices to access/ play the media files on your Windows Media Player.
  • Page 11 iii) Set the network location iv) Choose Home network ‒ 10 ‒...
  • Page 12 v) Create a homegroup, then choose the kind of media file to be accessed, such as music..etc. vi) Launch the Windows Media Player, select <Stream> and choose <Automatically allow devices to play my media> from the drop down list. vii) You can now enjoy the music streaming from the windows media player.

  • Page 13: Information Center

    Music streaming via UPnP 1. Once the UPnP server is configure to share media files with your radio, you can start music streaming. 2. On the main menu, select <Media Centre> and choose <UPnP> 3. It may take a few seconds for the radio to complete the scan for available UPnP servers.
  • Page 14 Configuration Manage my mediaU You can tailor made your own favorite station list using your computer. 1) Go to http://www.mediayou.net/ and sign up to become a member. 2) Then you have to find out the Mac Address to register on the Media U website.
  • Page 15 It allows maximum 5 users to register with the same radio and you can switch to listen the favorite list under one user at a time To find your added station / custom favorite list on the radio, go to Configuration >...
  • Page 16 You will find listed options with your favorite list. Whenever any update is done on your <My Media U> account, you have to disable the My Media U and enable it again to refresh and get the latest updated list. (Configuration> Manage my mediaU > Disable>Enable) Network Wireless Network Configuration Press <Enter>...
  • Page 17 Alarm sound: Wake to Radio (must be the preset station), Wake to Melody and Wake to Beeping sound. Alarm Volume: adjust your desire volume level. NAP Alarm If you would like to take a nap or need an alarm to due in short time, you can use this function.
  • Page 18 elapsed, from 15 minutes to 180 minutes with the step of every 15 minute. You also can do the setting with the <Sleep> button from remote control, when you press <Sleep>, then you can see the sleep timer on the top right corner of the display.

  • Page 19: Troubleshooting

    Software update Upgrade information will pop up on the display when there is update version available. It is suggested to check if there is latest software available from time to time. Reset to default You can do this factory reset to empty all of the settings and it comes back to default settings.
  • Page 20 -The station has too many people trying to attach to the radio station server and the server capacity is not large enough. -The station has reached the maximum allowed number of simultaneous listeners. -The station is not broadcasting anymore. -The link on the radio is out of date. This is updated automatically every day, so the next time you turn on the link will be recognised.
  • Page 21 When the internet radio is scanning the content of the folders on a PC, it is possible that a scan error may occur if the windows file sharing application times out. This is most likely to occur if both the PC with the media content and the Internet Radio are connected wirelessly.

  • Page 22: Technical Specification

    This system is financed by the industry and ensures environmentally responsible disposal and the recycling of valuable raw materials. Ocean Digital Technology Ltd. Flat B, 12/F., Yeung Yiu Chung (No.8) Ind. Bldg., 20 Wang Hoi Road, Kowloon Bay, Hong Kong Email: support@oceandigital.com.hk...
