Operating instructions
AdoraDry V6000
Tumble dryer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AdoraDry V6000 and is the answer not in the manual?

Questions and answers

Gail Simons
June 8, 2025

Hello Is there a way to increase the heat output as we cannot get our clothes dry with the current settings. The clothes are still damp at conclusion of cycle. Very frustrating especially since the machine is so expensive

0

Related Manuals for V-ZUG AdoraDry V6000

Summary of Contents for V-ZUG AdoraDry V6000

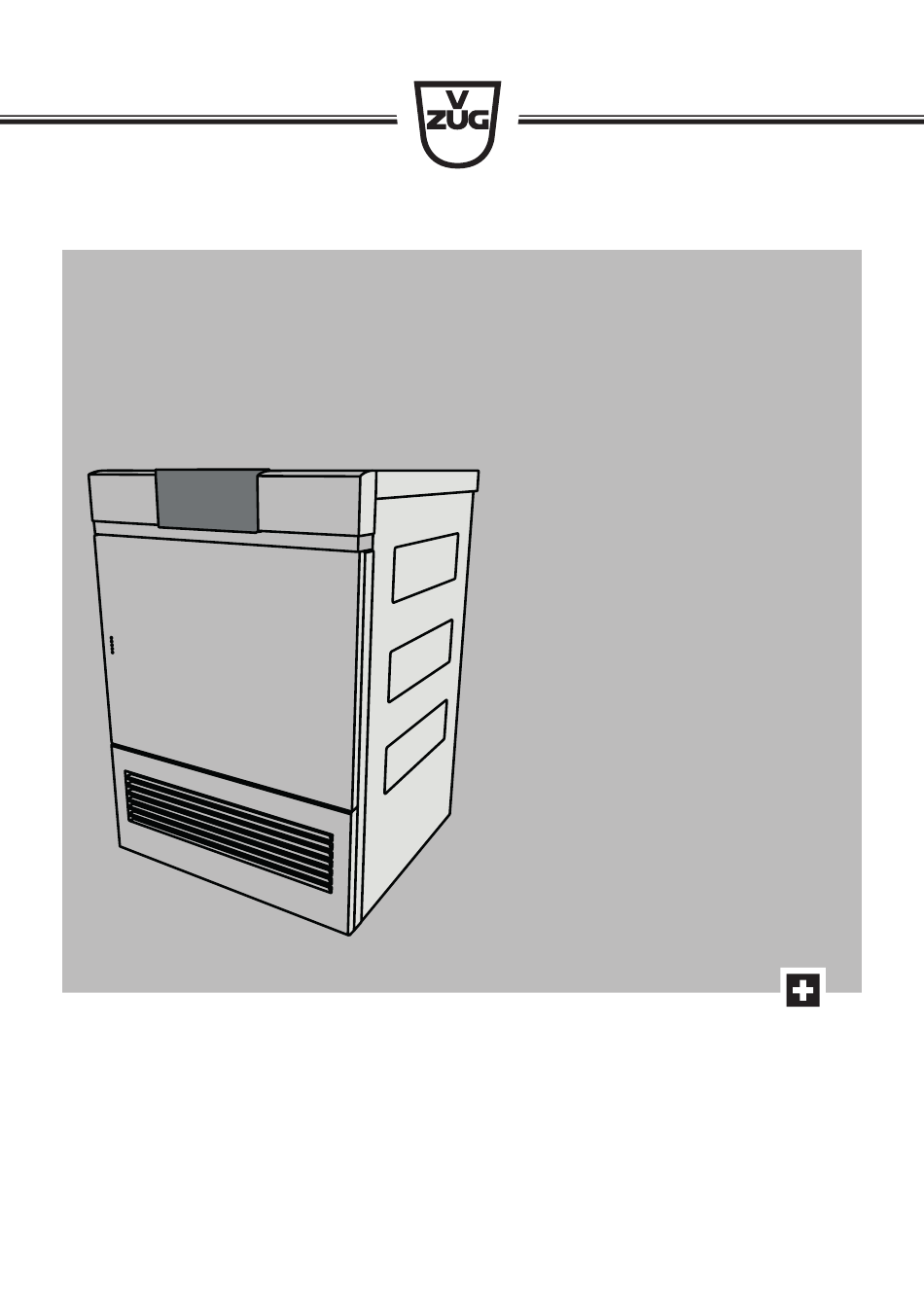

  • Page 1 Operating instructions AdoraDry V6000 Tumble dryer...
  • Page 2 Validity These operating instructions apply to: Model designation Type AdoraDry V6000 AT6T-12019 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2021...

  • Page 3: Table Of Contents

    Childproof lock............  25 Textile programmes .......... 12 8.11 Drum illumination..........  26 Standard and extra programmes ..... 14 8.12 Standard mode .............   26 Additional functions.......... 15 8.13 V-ZUG-Home............  26 EcoManagement.......... 15 8.14 Factory settings.............   26 Operating the appliance  16 Demo mode  26 Preparations............ 16 Switching on ............
  • Page 4 Drying tips  36 14.1 Saving energy............ 36 14.2 Avoiding damage .......... 36 Disposal  36 Index  38 Service & Support  43...

  • Page 5: Safety Warnings

    Safety warnings Symbols used and have understood the haz- ards involved. Children shall Denotes important safety precau- tions. not play with the appliance. Failure to observe said precautions Cleaning and user mainten- can result in injury or in damage to ance shall not be undertaken the appliance or fittings! by children without supervi-...
  • Page 6 1 Safety warnings or heat sources such as burn- as white spirit, alcohol, stain ing candles, incense sticks, remover, oil, edible oil, tur- room heaters and the like pentine, acetone, paint, wax, away from the appliance. etc.) are a fire and explosion ▪...

  • Page 7: Instructions For Use

    1 Safety warnings ▪ If the appliance is not working properly ▪ The appliance must not be in- or in case a repair is needed, follow the stalled behind a lockable instructions given in the «Service and door, a sliding door or a door repairs»...
  • Page 8 1 Safety warnings Room size, room climate and ventilation ▪ WARNING: If the size of the room is <10 m (<20 m ), it needs to be ventil- ated. There must be air inlet and outlet openings to the adjacent room or to the outside, e.g.

  • Page 9: Initial Set-Up

    Initial set-up The appliance must be installed and connected to the electricity supply in accord- ance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work. If the location of the appliance is changed, because of the heat pump it must stand in its final position for around 2 hours before it can be operated again.

  • Page 10: Operating And Display Elements

    3 Appliance description Operating and display elements Buttons Operating panel Door opener V-ZUG-Home display EcoManagement TouchDisplay Energy saving Indicator lights Standard and extra programmes Start/Pause/Drum illumination End of programme Favourites TouchDisplay Buttons Coloureds Textile programmes Select programme Extra dry Normal dry...

  • Page 11: Button State

    4 Programme overview Button state Background colour Symbol colour State Blue White Function is active. Black White Function is selectable. Black Black Function is not selectable. Programme overview All the programmes are described below. Automatic programmes Consumption values The stated values for the programme duration and energy apply for the maximum stated load capacity with a wash spun at around 1000 rpm (corresponds to a moisture level of approx.

  • Page 12: Timed Drying

    4 Programme overview Timed drying Dries textiles for a set duration, irrespective ▪ Load: 1–7 kg of their level of dryness. For final drying of sleeping bags and quilts, provided they have the relevant fabric care symbols. Load for bulky textiles: 1 item Textile programmes The given values can vary according to programme, load, additional functions, user set- tings, initial moisture content of the laundry and ambient temperature.
  • Page 13 4 Programme overview Bed linen For similar items of washing. Fasten zips and but- ▪ Load: 1–3 kg tons. ▪ Remaining moisture content: -1 to 1 % ▪ Programme duration: 1h26 ▪ Energy: 0.85 kWh Thick down filling For bulky down textiles (e.g. pillows, jackets and ▪...

  • Page 14: Standard And Extra Programmes

    4 Programme overview Hygiene The washing is dried hygienically through an exten- ▪ Load: 1–3 kg ded final drying phase. Ensures all germs are ▪ Remaining moisture content: killed. Use for non-delicate fabrics only. -5 to -2 % ▪ Programme duration: 1h57 ▪...

  • Page 15: Additional Functions

    4 Programme overview Additional functions Whenever a programme is selected, the selectable additional functions are displayed. Easy care Gentle drying for mixed fabrics (e.g. shirts, pullovers and t-shirts). The level of dry- ness is reduced. To prevent creasing, put only a few items of laundry in the wash- ing drum and unload them as soon as the programme ends.

  • Page 16: Operating The Appliance

    5 Operating the appliance Operating the appliance Preparations ▸ Insert the mains plug into a mains socket. ▸ Touch the button. – The appliance door opens. – The drum illumination switches on. ▸ Loosely load wet laundry items one by one into the appliance.
  • Page 17 5 Operating the appliance Timed programme ▸ Touch the button. Timed drying – A selection of drying times appears in the Duration in minutes TouchDisplay. ▸ Select the desired drying time, e.g. 30. – The programme selected and all selectable ad- ditional functions appear in the TouchDisplay.

  • Page 18: Selecting Additional Functions

    5 Operating the appliance Selecting additional functions ▸ Touch the button for the desired programme, e.g. 2 h 25 Extra dry – The programme selected and all selectable ad- ditional functions appear in the TouchDisplay. – The indicator light for the selectable button flashes.

  • Page 19: Duration Remaining Indicator

    5 Operating the appliance Duration remaining indicator When the programme starts, the programme dura- Extra dry tion at maximum load is displayed. The actual load 0 h 59 is determined and the expected duration remaining Calculating time remaining is calculated, which takes about 1 minute. The letter «h»...

  • Page 20: Ending A Programme Before Time

    5 Operating the appliance Each time a programme is interrupted, the programme sequence is delayed by 5 minutes. 5.10 Ending a programme before time ▸ Touch the button. – The programme is aborted. – All settings are cleared. 5.11 With childproof lock activated The «Childproof lock»...

  • Page 21: Ecomanagement

    5 Operating the appliance Unload the laundry as soon as the programme ends to prevent creasing. Crease guard starts if the appliance is not unloaded straightaway (see page 19). When it has finished, all the displays go out. ▸ Touch the button.

  • Page 22: Favourites

    6 Favourites Displaying total and average consumption Total and average consumption can be displayed if no programme is running. ▸ Hold the button depressed for 3 seconds. EcoManagement – Total and average consumption appear in the Statistics TouchDisplay. Total 390 kWh ▸...

  • Page 23: Starting Favourites

    – The programme selected starts. V-ZUG-Home Conditions The following conditions must be met for full use of V-ZUG-Home: ® ▪ Access to the internet and to Google Play Store / App Store ▪ a wireless network that meets one of the following standards: 2.4GHz 802.11 b/g/n ▪...

  • Page 24: User Settings

    – A 6-digit PIN appears in the display of the appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 25: Viewing Angle

    8 User settings Viewing angle The readability of the TouchDisplay is improved ▪ : TouchDisplay viewed when viewed from below at an angle. from above (factory setting) ▪ : TouchDisplay viewed from below Language The language is set during the initial set-up of the appliance.

  • Page 26: Drum Illumination

    8.13 V-ZUG-Home With V-ZUG-Home (see page 23), you can access ▪ Operate and display your appliances over the V-ZUG App to, for instance ▪ Display ▪ Off (factory setting) ▪ switch off a running appliance ▪ call up the status of your household appliances.

  • Page 27: Switching Off

    10 Care and maintenance Switching off ▸ Touch the button. – The appliance door opens. – The drum illumination switches on. ▸ Simultaneously press the buttons until the Demo mode menu ap- pears in the TouchDisplay. – In the TouchDisplay appears: «Status: On» ▸...

  • Page 28: Cleaning The Front Filter Mat

    10 Care and maintenance ▸ Hold the door filter 1 up to the light to detect deposits. Clean the door filter 1 if necessary (with water, the soft side of a sponge and abrasive liquid cleaning agent or cleaning vinegar). ▸...

  • Page 29: Cleaning The Moisture Sensor

    10 Care and maintenance 10.4 Cleaning the moisture sensor If the «A3» error message appears, the moisture sensor must be cleaned. ▸ Open appliance door. ▸ Remove any fluff or foreign objects on the moisture sensor 1. ▸ If necessary, clean moisture sensor 1 with a damp cloth and wipe dry.

  • Page 30: Trouble-Shooting

    11 Trouble-shooting Trouble-shooting You may be able to trouble-shoot the following malfunctions yourself. If not, note down the error message in full (message, F and E numbers) and call Customer Services. 11.1 Error messages Display Possible cause Solution A0 Check outlet ▪...

  • Page 31: Other Possible Problems

    11 Trouble-shooting Display Possible cause Solution FXX/EXX see in- ▪ Various situations can ▸ Press the button. structions lead to this error mes- ▸ Remove the mains plug from the mains sage. socket. SN XXXXX ▸ Wait for about 1 minute. XXXXXX ▸...
  • Page 32 11 Trouble-shooting Problem Possible cause Solution The laundry is ▪ Mixed laundry load. ▸ Select a longer programme, e.g. extra not dry enough and the waist- band of jeans is still wet. ▸ Select timed drying. ▸ Change the level of dryness (see page 25).
  • Page 33 11 Trouble-shooting Problem Possible cause Solution The appliance ▪ Various situations in ▸ Close the appliance door. door springs the appliance can ▸ Touch the button. open during op- cause this. – The programme is resumed. eration. The drum is ▪...

  • Page 34: Spare Parts

    12 Spare parts Spare parts Please give model designation and type when ordering parts. Door filter Door filter mat Front grille Front filter mat Technical data General notes Height 85 cm Width 59.5 cm Depth 61 cm Weight 52.5 kg Pumping height of pump 1.2 m Load capacity 7 kg dry washing...

  • Page 35: Product Fiche

    13.2 Product fiche In accordance with EU Regulation No. 392/2012 Brand V-ZUG Ltd The model identifier corresponds to the first 5 al- 12019 phanumerics on the identification plate. Rated capacity for cotton laundry at full load Type of appliance...
  • Page 36 14 Drying tips 1 Energy consumption x kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used. 2 The standard cotton programme to which the information in the label and the fiche relates.
  • Page 37 15 Disposal 15.3 Disposal The «crossed‐out wheeled bin» symbol requires the separate collection of waste ▪ electrical and electronic equipment (WEEE). Such equipment can contain hazardous, environmentally harmful materials. ▪ These appliances are to be handed over to a designated collection point for the recyc- ling of electrical and electronic equipment and must not be disposed of with unsorted household waste.
  • Page 38 Index Display ............ 21 Switching on .......... 25 Additional functions ......... 15 Efficient drying Starting............ 18 Standard programme........ 14 Airing Ending Extra programmes........ 14 Programme ...........  20 Appliance disposal .......... 37 Energy saving ..........10, 15 Automatic programmes ........10 Energy-efficient drying Consumption values ........
  • Page 39 Using for the first time........9 Safety warnings Appliance-specific .......... 6 Validity..............2 General ............. 5 Viewing angle ........... 25 Saving energy........... 36 V-ZUG App ............24 EcoManagement..........  15 V-ZUG-Home............. 10 Service & Support..........43 Switching on mode........ 26 Shirts Textile programmes ........ 12 SilentPlus ............
  • Page 40 Notes...
  • Page 43 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 44 ▸ Load laundry. ▸ Clean the door filter. ▸ Close the appliance door. ▸ Close the appliance door. ▸ Select programme and any additional functions (if required). ▸ Press the button. Programme starts. 1098512-02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
