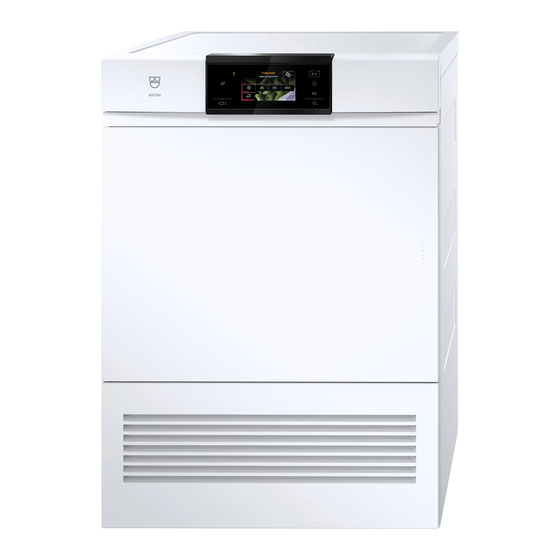

V-ZUG AdoraDry V2000 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. V-ZUG Manuals
  4. Dryer
  5. AdoraDry V2000
  6. Operating instructions manual

V-ZUG AdoraDry V2000 Operating Instructions Manual

Hide thumbs Also See for AdoraDry V2000:
Table of Contents

Advertisement

Quick Links

Download this manual
V-ZUG-Home
Install the app, network your appliances and
benefit from a wide range of useful functions.
Operating instructions
AdoraDry V2000
Tumble dryer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AdoraDry V2000 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG AdoraDry V2000

Summary of Contents for V-ZUG AdoraDry V2000

  • Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions AdoraDry V2000 Tumble dryer...
  • Page 2 Validity These operating instructions apply to: Model designation Model number Type 12011 AT2T-12011 AdoraDry V2000 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2021...

  • Page 3: Table Of Contents

    EcoManagement...........   24 Timed drying............ 12 8.10 Childproof lock............  24 Textile programmes .......... 12 8.11 Drum illumination..........  25 Standard and extra programmes ..... 13 8.12 V-ZUG-Home............  25 Additional functions.......... 13 8.13 Factory settings.............   25 EcoManagement.......... 14 Demo mode  25 Operating the appliance  14 Switching on ............
  • Page 4 14.1 Saving energy............ 34 14.2 Avoiding damage .......... 34 Disposal  34 Index  36 Notes  38 Service & Support  39...

  • Page 5: Safety Warnings

    Safety warnings Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...
  • Page 6 1 Safety warnings ▪ WARNING: This appliance is ▪ Items such as foam rubber only designed for drying tex- (latex foam), shower caps, tiles which have been washed waterproof textiles, rubber or in water. plastic backed articles and ▪ The appliance is only to be clothes or pillows fitted with used with the recommended foam rubber pads should not...

  • Page 7: Instructions For Use

    1 Safety warnings ▪ Any repairs, modifications or manipula- dryer in such a way that it tions to the appliance, especially any prevents the appliance door electrically live parts, may only be car- from opening fully. ried out by the manufacturer, its Cus- tomer Services or a similarly qualified ▪...
  • Page 8 1 Safety warnings ▪ When cleaning the appliance make ▪ If the location of the appliance is sure no water gets inside it. Use a mod- changed, because of the heat pump it erately damp cloth. Do not spray the must stand in its final position for outside or the inside of the appliance around 2 hours before it can be oper-...

  • Page 9: Initial Set-Up

    Initial set-up The appliance must be installed and connected to the electricity supply in accord- ance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work. If the location of the appliance is changed, because of the heat pump it must stand in its final position for around 2 hours before it can be operated again.

  • Page 10: Operating And Display Elements

    3 Appliance description Operating and display elements Operating panel Buttons Operating panel EcoManagement V-ZUG-Home display Standard and extra programmes TouchDisplay Start/Pause/Drum illumination Indicator light End of programme Favourites TouchDisplay Buttons Coloureds Textile programmes Select programme Extra dry Normal dry Iron dry...

  • Page 11: Button State

    4 Programme overview Button state Background colour Symbol colour State Blue White Function is active. Black White Function is selectable. Black Black Function is not selectable. Programme overview All the programmes are described below. Automatic programmes Consumption values The stated values for the programme duration and energy apply for the maximum stated load capacity with a wash spun at around 1000 rpm (corresponds to a moisture level of approx.

  • Page 12: Timed Drying

    4 Programme overview Timed drying Dries textiles for a set duration, irrespective of ▪ Load: 1–7 kg their level of dryness. For final drying of sleep- ing bags and quilts, provided they have the relevant fabric care symbols. Load for bulky textiles: 1 item Textile programmes Coloureds...

  • Page 13: Standard And Extra Programmes

    4 Programme overview Standard and extra programmes Standard programme The stated values for the programme duration and energy apply for the maximum stated load capacity with a wash spun at around 1000 rpm (corresponds to a moisture level of approx. 60%). A higher spin speed or a smaller load reduce them by approx. 20–30%. The most energy efficient programme for dry- ▪...

  • Page 14: Ecomanagement

    5 Operating the appliance EcoManagement The «EcoManagement» user setting must be turned on to use «EcoManage- ment» (see page 24). EcoManagement provides information on the energy and water consumption of the appliance. The following statistical data can only be re- trieved when there is no programme running: ▪...

  • Page 15: Selecting A Programme

    5 Operating the appliance Selecting a programme To avoid damaging the laundry, follow the fabric care symbols on garment labels. Automatic programmes When a programme is selected, all the necessary settings for it are assigned automatic- ally. Additional functions can be selected or deselected by using further buttons in other views.

  • Page 16: Selecting Additional Functions

    5 Operating the appliance Standard and extra programmes ▸ Touch the button. Extra – The selection of standard and extra pro- grammes appears in the TouchDisplay. Standard Basket ▸ Touch the button for the desired standard or extra Airing programme, e.g. –...

  • Page 17: Checking And Changing The Settings

    5 Operating the appliance Checking and changing the settings ▸ Touch the button in the Additional functions Extra dry 2 h 52 menu. – The start screen appears in the TouchDisplay. ▸ Select a new programme (see page 15). ▸ To make a change once a programme has star- ted, the programme must be ended before time.

  • Page 18: Adding Washing

    5 Operating the appliance Adding washing Washing can be added at any time during the drying process. ▸ Press the 5 dots at the edge of the appliance door. – The appliance door opens. – The drum illumination switches on. –...

  • Page 19: Drum Illumination

    5 Operating the appliance After being unlocked, the appliance can be operated normally. The childproof lock is automatically activated as soon as the programme starts. 5.12 Drum illumination The drum illumination automatically switches on whenever the appliance door is opened and switches off when it is closed.

  • Page 20: Ecomanagement

    5 Operating the appliance 5.14 EcoManagement The «EcoManagement» user setting must be activated to use «EcoManagement» (see page 24). Displaying estimate during programme selection The expected energy consumption can be displayed during additional function selection. ▸ Touch the button for the desired programme, e.g. Extra dry 2 h 52 –...

  • Page 21: Favourites

    6 Favourites Favourites The appliance door has to be open to define, change or delete a favourite. Defining and saving favourites ▸ Press the 5 dots at the edge of the appliance door. – The appliance door opens. ▸ Touch the button.

  • Page 22: Starting Favourites

    – The programme selected starts. V-ZUG-Home Conditions The following conditions must be met for full use of V-ZUG-Home: ® ▪ Access to the internet and to Google Play Store / App Store ▪ Smartphone or tablet that is connected to the home network ▪...

  • Page 23: Initial Set-Up

    – A 6-digit PIN appears in the display of the household appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 24: Button Tone

    8 User settings Button tone The button tone can be turned on and off. The but- ▪ On (factory setting) ▪ Off ton tone for the buttons cannot be turned off. Viewing angle The readability of the TouchDisplay is improved ▪...

  • Page 25: Drum Illumination

    8.12 V-ZUG-Home With V-ZUG-Home (see page 22) , you can access ▪ Operate and display your appliances over the V-ZUG App to, for instance ▪ Display ▪ Off (factory setting) ▪...

  • Page 26: Switching Off

    10 Care and maintenance Switching off ▸ Press the 5 dots at the edge of the appliance door. – The appliance door opens. – The drum illumination switches on. ▸ Simultaneously press the buttons until the Demo mode menu appears in the Touch- Display.
  • Page 27 10 Care and maintenance Cleaning the door filter and door filter mat ▸ Take out the door filter 1, as described in «Clean- ing the door filter». ▸ Open the door filter 1 and take out the door filter mat 2. ▸...

  • Page 28: Cleaning The Front Filter

    10 Care and maintenance 10.3 Cleaning the front filter If the «A9 Clean mats» error message still appears after the door filter and the door filter mat have been cleaned, the front filter must also be carefully cleaned. ▸ Open the appliance door and remove the front grille 1.

  • Page 29: Cleaning The Appliance

    11 Trouble-shooting ▸ Clean the temperature sensor 2 with a damp cloth. ▸ Put back the front grille 1. 10.6 Cleaning the appliance ▸ Wipe the outside of the appliance from time to time with a damp cloth and wipe dry. Trouble-shooting You may be able to trouble-shoot the following malfunctions yourself.

  • Page 30: Other Possible Problems

    11 Trouble-shooting Display Possible cause Solution Insert front filter ▪ The front filter is not ▸ Insert the front filter correctly. inserted correctly. ▸ Close the appliance door. ▸ Restart the programme. FXX/EXX see in- ▪ Various situations can ▸ Press the button.
  • Page 31 11 Trouble-shooting Problem Possible cause Solution The laundry is ▪ Mixed laundry load. ▸ Select a longer programme, e.g. extra not dry enough and the waist- band of jeans is still wet. ▸ Select timed drying. ▸ Change the level of dryness (see page 24).

  • Page 32: Spare Parts

    12 Spare parts Problem Possible cause Solution The drum is ▪ Scratches and dents ▸ No remedy necessary. Scratches and scratched and can be caused by dents have no impact on the drying pro- dented. drying items with but- cess or the drying results. tons or buckles.

  • Page 33: Technical Data

    13 Technical data Technical data Dimensions Height 85 cm Width 59.5 cm Depth 61 cm Weight 65 kg Pumping height of pump 1.2 m Load capacity 7 kg dry washing Ambient conditions Permissible room temperature 5 °C to when appliance is in operation 35 °C Electrical connection The electrical connection can be found on the identification plate (see page 39).

  • Page 34: Drying Tips

    14 Drying tips Drying tips 14.1 Saving energy ▪ Spin the washing in the washing machine at a high spin speed before tumble drying. Mechanical draining in the washing machine is much more efficient than water evapor- ation in the tumble dryer. ▪...
  • Page 35 15 Disposal ▪ For more information, please contact the local authorities. 15.4 Note on heat pump This appliance is CFC-free. It contains fluorinated greenhouse gas covered by the Kyoto Protocol. Heat pump Hermetically closed Greenhouse gas R134a Filling quantity [kg] 0.270 GWP [(kg CO )/(kg greenhouse gas)]...
  • Page 36 Index ReversePlus.......... 13 Extra dry............. 11 Additional functions ......... 13 Extra programmes ........... 10 Starting............ 16 Starting............  16, 23 Airing Extra programmes........ 13 Appliance Factory settings ..........25 Disposal............ 34 Favourites ............10 Automatic programmes ........10 Starting............ 22 Consumption values ........ 11 Final airing............
  • Page 37 Baby garments.......... 12 Easy care ............ 13 Shirts ..............  12 Silks.............. 12 Type............... 2 Underwear Standard dry .......... 11 Using for the first time........9 Validity..............2 Viewing angle ........... 24 V-ZUG App ............23 V-ZUG-Home..........10, 22 Switching on mode........ 25...
  • Page 38 Notes...
  • Page 39 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 40 ▸ Load laundry. ▸ Clean the door filter. ▸ Close the appliance door. ▸ Close the appliance door. ▸ Select programme and any additional functions (if required). ▸ Press the button. Programme starts. 1057827-04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
