Shared Vertical LED Array and Port Select Button

At power-up, the shared vertical LED array displays the status of
port 1. To display the status of port 2, press the Port Select but-
ton located to the right of the array. Repeated depressions of
this button will cycle through all eighteen ports.

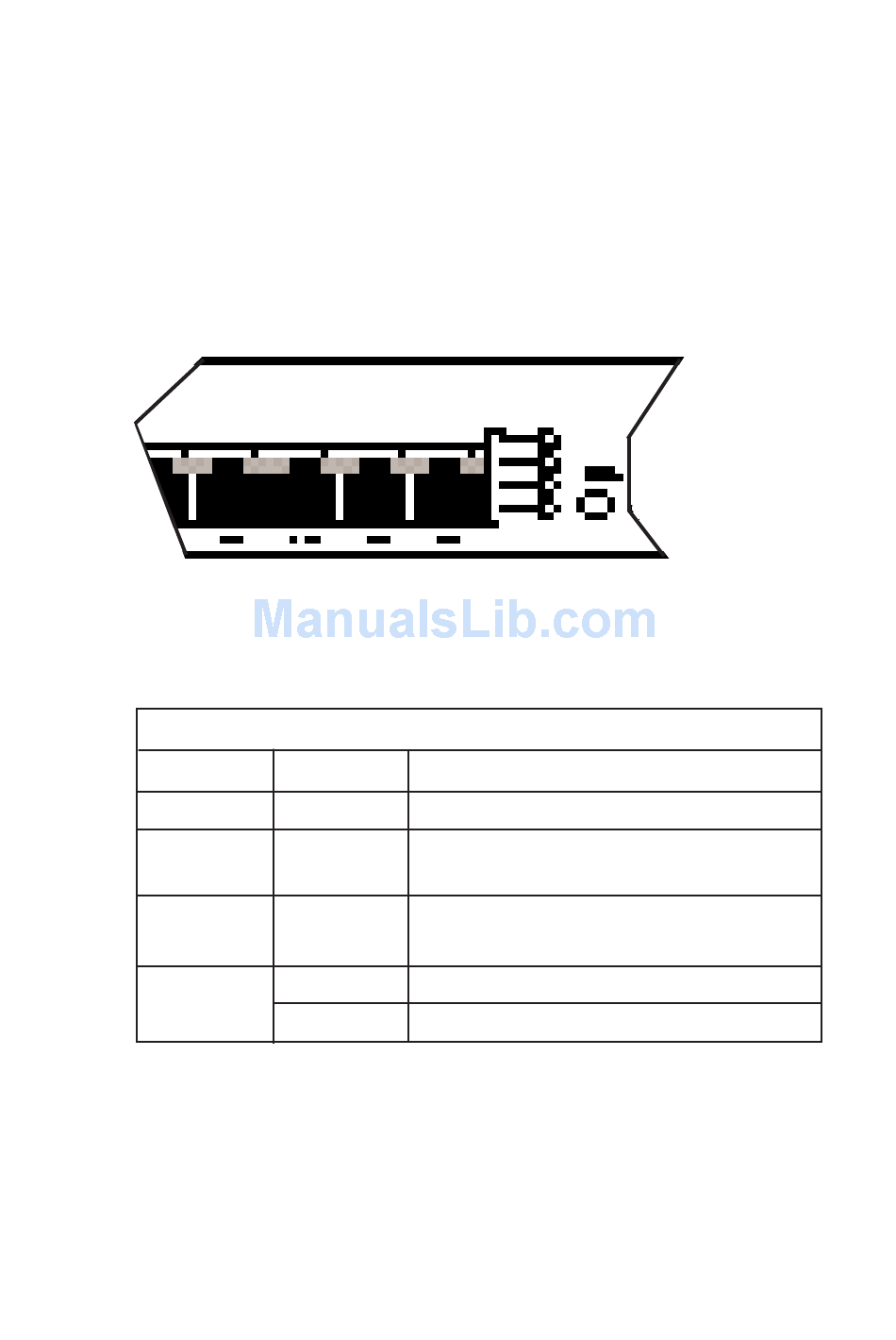

Figure 2-7. Vertical LED Array and Port Select Button

The vertical LED array is described in the following table:
Function
Receive
Collision
Full
Duplex
100 Mbs
2-8
Vertical LED Array
Condition
Green Data is being received
Yellow Two or more devices on the segment
are transmitting at the same time
Yellow Port configured for full-duplex
operation (available on all ports)
Yellow Port is operating at 100 Mbps data rate
Off Port is operating at 10 Mbps data rate
Description
