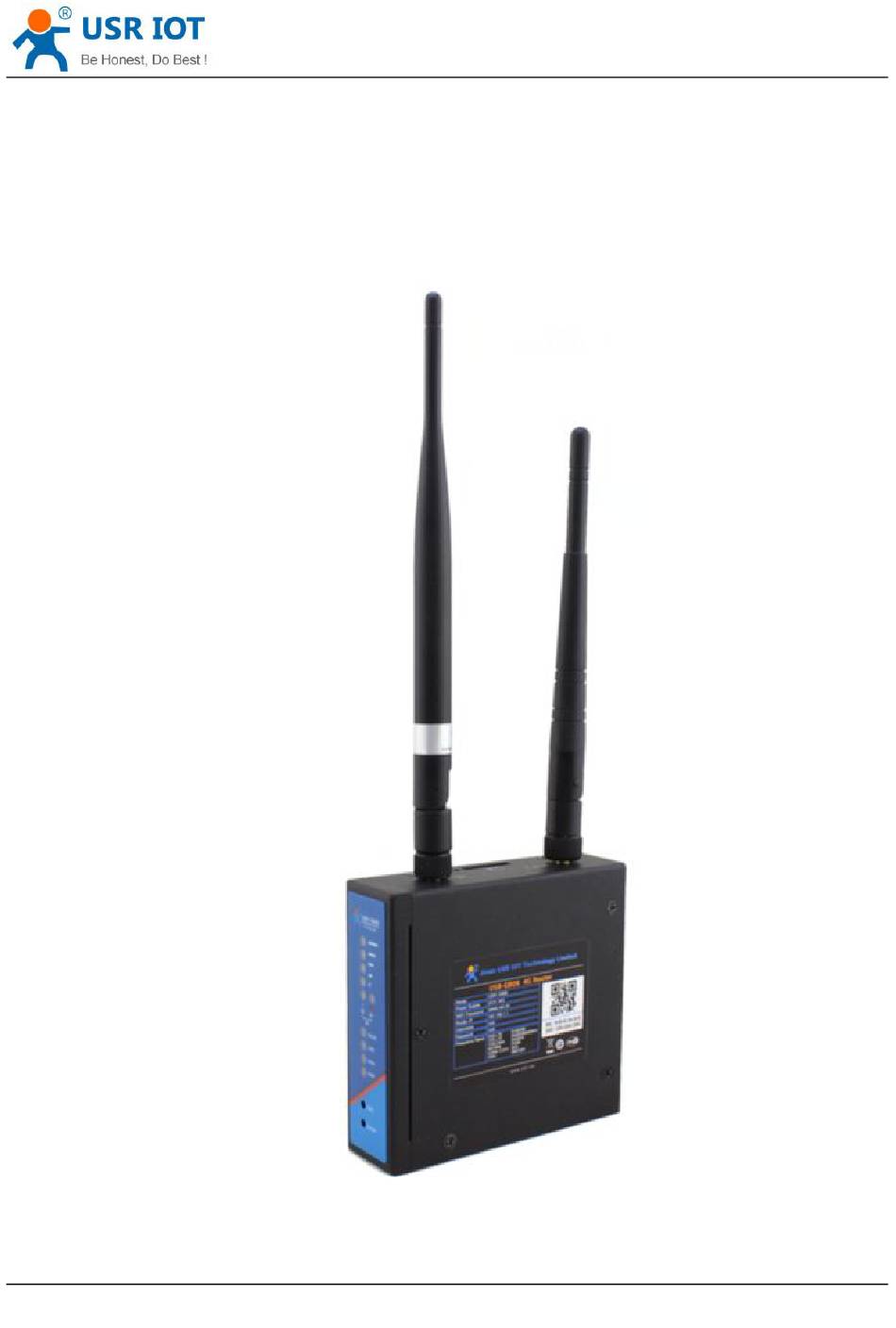

- Page 1 USR-G806 software manual Technical Support: h.usriot.com USR-G806 Software Manual File version: V1.0.5 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 2: Table Of Contents
Static Router............................. 34 3.7. NAT Function............................ 34 3.7.1 MASQ.............................. 34 3.7.2 SNAT............................35 3.7.3 DNAT............................36 3.8. Access Restrictions......................... 37 3.8.1 Domain Blacklist......................38 3.8.2 Whitelist........................... 38 3.9. Rate Limiting.............................38 AT Commands..............................39 4.1. AT+VER.............................40 4.2. AT+MAC............................40 Jinan USR IOT Technology Limited www.usriot.com... - Page 3 AT+TRAFFIC............................ 41 4.9. AT+UPTIME............................41 4.10. AT+WANN............................42 4.11. AT+LANN............................42 4.12. AT+WEBU............................42 4.13. AT+PLANG............................42 4.14. AT+RELD............................43 4.15. AT+Z..............................43 4.16. AT+DHCPEN............................ 43 4.17. AT+ LINUXCMP..........................43 Contact us................................. 44 Disclaimer................................44 Updated History..............................44 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 4: Product Overview
1.2. Band USR-G806 has different band model to support different area. To check whether the USR-G806 works in specific country, please check which 3G/4G technology and band is used in this country and operator. Then please contrast our form of different model. - Page 5 USR-G806 software Manual Technical Support: h.usriot.com G806-43 Operating Band FDD-LTE TDD-LTE WCDMA CDMA1X 800MHz CDMA2000-EVDO GPRS G806-E Operating Band FDD-LTE TDD-LTE WCDMA GPRS G806-A Operating Band FDD-LTE WCDMA Jinan USR IOT Technology Limited www.usriot.com...
-
Page 6: Product Functions
TDD-LTE WCDMA GPRS 2. Product Functions This chapter introduces the functions of USR-G806, as the following diagram shown, you can get an overall knowledge of it. Figure 1 Product function 2.1. Configuration Process （1） Connect the 4G antenna and Wi-Fi antenna to the router. (Longer one is 3G/4G antenna and Shorter one is Wi-Fi antenna.) -
Page 7: Basic Function
Nslookup is a DNS view tool, which can resolve domain names to IP addresses. 2.2.2 Host Name and Time Zone G806 default module name is USR-G806 and default Time Zone is Beijing time zone. User can configure module name and Time Zone by Web Server as follow: Jinan USR IOT Technology Limited... -
Page 8: Password
Hardware restore: Press Reload button over 5 seconds and release, G806 will restore default settings and reset. User can restore default settings by Web Server as follow: Figure 5 restore default settings 2.2.5 Upgrade Firmware Version Upgrade by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 9: Reset
User can choose saving settings. User should keep powering up and LAN/WIFI connection during the whole upgrade process. 2.2.6 Reset Reset time is about 40~60 seconds. Reset by Web Server as follow: Figure 7 reset Jinan USR IOT Technology Limited www.usriot.com... -
Page 10: Advanced Function
Fill in the service address of DDNS. e.g. http://ouclihuibin123:ouclih uibin1231@ddns.oray.com /ph/update?hostname=1a5 16r1619.iask.in Hostname Fill in the domain name e.g. 1a516r1619.iask.in User name Fill in account name e.g. ouclihuibin123 Password Fill in password e.g. ouclihuibin1231 Source Choose the interface address Jinan USR IOT Technology Limited www.usriot.com... -
Page 11: Wifi-Dog
After clicking on open and save, the router needs to be restarted, and the authentication server needs to be customized. Figure 9 wifi-dog 3.3. SMS AT Commands You should send SMS in this format: root#AT+COMMAND Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Lan Interface
G806 supports two LAN interface (one is WAN/LAN interface). Default settings: One LAN interface (WAN/LAN used as WAN interface; IP address: 192.168.1.1; Subnet mask: 255.255.255.0; Open DHCP function). User can configure LAN interface by webpage as follow: Figure 11 LAN interface Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: Dhcp Function
User can configure WAN interface by Web Server as follow: Figure 13 WAN interface 3.4.3 WLAN Function G806 supports at most 24 STA devices connected. The maximum coverage of WIFI is 180m Default parameters as follows: SSID USR-G806-XXXX(XXXX is MAC) Jinan USR IOT Technology Limited www.usriot.com... - Page 14 After clicking “Edit” and entering WLAN interface configuration web, user can change follow parameters. User can configure SSID on Web Server as follow: Figure 15 Configure SSID User can configure password on Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com...
-
Page 15: Interface
Other settings on Web Server as follow: Figure 17 Other settings User can close WLAN interface by changing ‘Radio on/off’ to off. 3.4.4 4G Interface G806 supports one 4G interface to access internet. Functional diagram as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 16: Apn
USR-G806 software Manual Technical Support: h.usriot.com Figure 18 4G interface User can configure 4G interface by Web Server as follow: Figure 19 4G interface 3.4.5 APN APN configuration by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: Vpn Client
Let's talk about the use of VPN Client. We are looking for a computer in the LAN to ensure that it can access the server above. Then create a new VPN connection. In the connection box, click "Properties", the tab can set the target address (the address of the VPN server), Jinan USR IOT Technology Limited www.usriot.com... - Page 18 Next we use the PPTP Client on the router to replace the way of computer dialing. Assuming that the user has obtained the VPN server address, account and password, we create an interface, select the PPTP protocol, and write the other parameters in turn. Figure22 the webpage1 of VPN Jinan USR IOT Technology Limited www.usriot.com...
- Page 19 USR-G806 software Manual Technical Support: h.usriot.com Figure23 the webpage2 of VPN Select WAN, because it is dialing at WAN port, then save and apply. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 20: L2Tp Client
L2TP is a layer 2 tunneling protocol, similar to PPTP. At present, G806 supports various authentication methods such as tunnel password authentication, CHAP, etc., supporting encryption methods of MPPE and pre-shared key encryption methods of L2TP OVER IPSEC. Jinan USR IOT Technology Limited www.usriot.com... - Page 21 USR-G806 software Manual Technical Support: h.usriot.com Figure25 create interface Figure26 auth type Jinan USR IOT Technology Limited www.usriot.com...
- Page 22 USR-G806 software Manual Technical Support: h.usriot.com Figure27 tunnel auth password Jinan USR IOT Technology Limited www.usriot.com...
- Page 23 USR-G806 software Manual Technical Support: h.usriot.com Figure28 L2TP OVER IPSEC auth type Jinan USR IOT Technology Limited www.usriot.com...
-
Page 24: Ipsec
For terminal network: IPSEC end protection subnet and subnet mask. Local terminal identifier: the channel local identifier can be IP or domain name. Note that when the domain name is customized, add @ Jinan USR IOT Technology Limited www.usriot.com... - Page 25 Session secret key forward encryption (PFS): if hook is activated, PFS will enable. Authentication method: currently supports the pre shared key authentication method. Note After the configuration, the ISAKMP SA established flag in the connection log indicates that the IPSEC VPN was created successfully. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 26: Openvpn
USR-G806 software Manual Technical Support: h.usriot.com 3.5.4 OPENVPN Add one interface, choose TUN or TAP mode: Figure31 add new interface Jinan USR IOT Technology Limited www.usriot.com... - Page 27 USR-G806 software Manual Technical Support: h.usriot.com Figure32 add OPENVPN interface Jinan USR IOT Technology Limited www.usriot.com...
- Page 28 Local tunnel address: set the local tunnel address, such as 192.168.10.1, otherwise the default server automatically allocates. Remote Tunnel Address: set the tunnel address on the opposite side, such as 192.168.10.1, otherwise the default server automatically allocates. Jinan USR IOT Technology Limited www.usriot.com...
- Page 29 1. Before the client connects to the server, the Ca certificate, the client certificate, the client key, the TLS authentication key, these need to be provided by the server. 2. After obtaining the certificate file, copy the different certificate contents into the edit box corresponding to the configuration interface. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 30: Gre
USR-G806 software Manual Technical Support: h.usriot.com 3.5.5 Figure35 add new interface Jinan USR IOT Technology Limited www.usriot.com... - Page 31 USR-G806 software Manual Technical Support: h.usriot.com Figure36 add GRE interface Jinan USR IOT Technology Limited www.usriot.com...
- Page 32 Local address: the local address of wan_wried and wan_4g, users need fill in one of them according to need. Remote Tunnel Address: the opposite GRE tunnel IP. Local Tunnel Address: the local GRE tunnel IP. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 33: Sstp Client
Figure38 GRE advance setting TTL settings: set the TTL of the GRE channel, by default 255 Set MTU: set the MTU of the GRE channel, by default 1400 3.5.6 SSTP Client Figure39 add new interface Jinan USR IOT Technology Limited www.usriot.com... -
Page 34: Static Router
MASQ, MASQUREADE, address masking, will leave the packet source IP into a router interface IP address, such as check IP dynamic masking, the system will flow out of the router packet source IP address changed to WAN port IP address. Jinan USR IOT Technology Limited www.usriot.com... -
Page 35: Snat
Figure41 MASQ setting 3.7.2 SNAT Source NAT changes the source address of the packet leaving the router, closing the IP dynamic camouflage of the WAN port first when used. Then setup SourceNAT. Figure42 NAT setting1 Jinan USR IOT Technology Limited www.usriot.com... -
Page 36: Dnat
3.7.3.1 Port Forward Figure45 port forward setting1 Figure46 port forward setting2 Then save the settings. 192.168.1.1:80 is the web server of routers. If we want to access a device in the LAN from the outside network, Jinan USR IOT Technology Limited www.usriot.com... -
Page 37: Access Restrictions
When a whitelist is selected, the device connecting the router can access the domain name of the whitelist only. Jinan USR IOT Technology Limited www.usriot.com... -
Page 38: Domain Blacklist
3.9. Rate Limiting Network speed control can limit the speed of devices connecting to routers, support IP segment address speed limit and MAC address speed limit, and rules can be added at the same time. Jinan USR IOT Technology Limited www.usriot.com... -
Page 39: At Commands
Query/set the LAN of IP AT+WEBU Query/set the webpage account and password AT+PLANG Query/set the default language AT+RELD Recover to factory setting AT+Z Restart AT+DHCPEN Open/close DHCP Server System shell command AT+LINUXCMP Execute system shell command Jinan USR IOT Technology Limited www.usriot.com... -
Page 40: At+Ver
Function: query the ICCID code Query: AT+ICCID{CR} {CR}{LF}+ICCID:code{CR}{LF}{CR}{LF} e.g. send: AT+ICCID return:+ICCID:898600161515AA709917 4.4. AT+IMEI Function: query the IMEI code Query : AT+IMEI{CR} or AT+IMEI?{CR} {CR}{LF}+IMEI:code{CR}{LF}{CR}{LF}OK{CR}{LF} e.g. send: AT+IMEI return:+IMEI:868323023238378 4.5. AT+SYSINFO Function: query the net info Query AT+SYSINFO{CR} Jinan USR IOT Technology Limited www.usriot.com... -
Page 41: At+Apn
{CR}{LF}+CSQ: rssi<CR><LF> e.g.: send: AT+CSQ return:+CSQ:31 4.8. AT+TRAFFIC Function: query traffic information AT+TRAFFIC<CR> <CR><LF>+TRAFFIC: < dev_down，dev_up，pro_time，at_time>，<CR><LF> e.g.: send: AT+TRAFFIC return:+TRAFFIC: 111000000B, 2000000B,1486379553,1486380161 4.9. AT+UPTIME Function: query the running time AT+ UPTIME<CR> <CR><LF>+UPTIME:<seconds,time><CR><LF> e.g.: send: AT+UPTIME Jinan USR IOT Technology Limited www.usriot.com... -
Page 42: At+Wann
Function: query/set webpage username and password Query: AT+RELD<CR> <CR><LF>+ WEBU:username,passwd<CR><LF> e.g.: send: AT+ WEBU return:+ WEBU:OK Set: AT+ WEBU =username,passwd<CR> <CR><LF>+ WEBU:ok<CR><LF> 4.13. AT+PLANG Function: set the default language AT+ PLANG = LANGUAGE <CR> <CR><LF>+ PLANG:ENGLISH<CR><LF> Jinan USR IOT Technology Limited www.usriot.com... -
Page 43: At+Reld
AT+ DHCPEN=ON return:+ DHCPEN:ON 4.17. AT+ LINUXCMP CMP : linux command Function: execute the Linux command and return the execution information. AT+ LINUXCMP=cmp<CR> <CR><LF>+ LINUXCMP: result<CR><LF> e.g.: send: AT+ LINUXCMP=pwd return:+ LINUXCMP: /bin Jinan USR IOT Technology Limited www.usriot.com... -
Page 44: Contact Us
Tel: 86-531-88826739 6. Disclaimer This document provides the information of USR-G806 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
