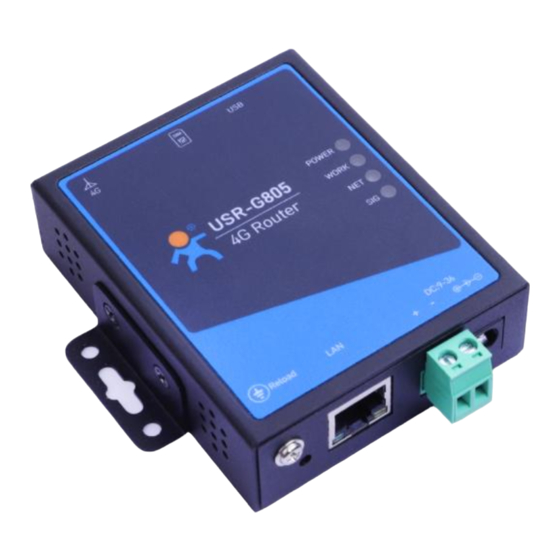

Page 1: Usr-G805 User Manual

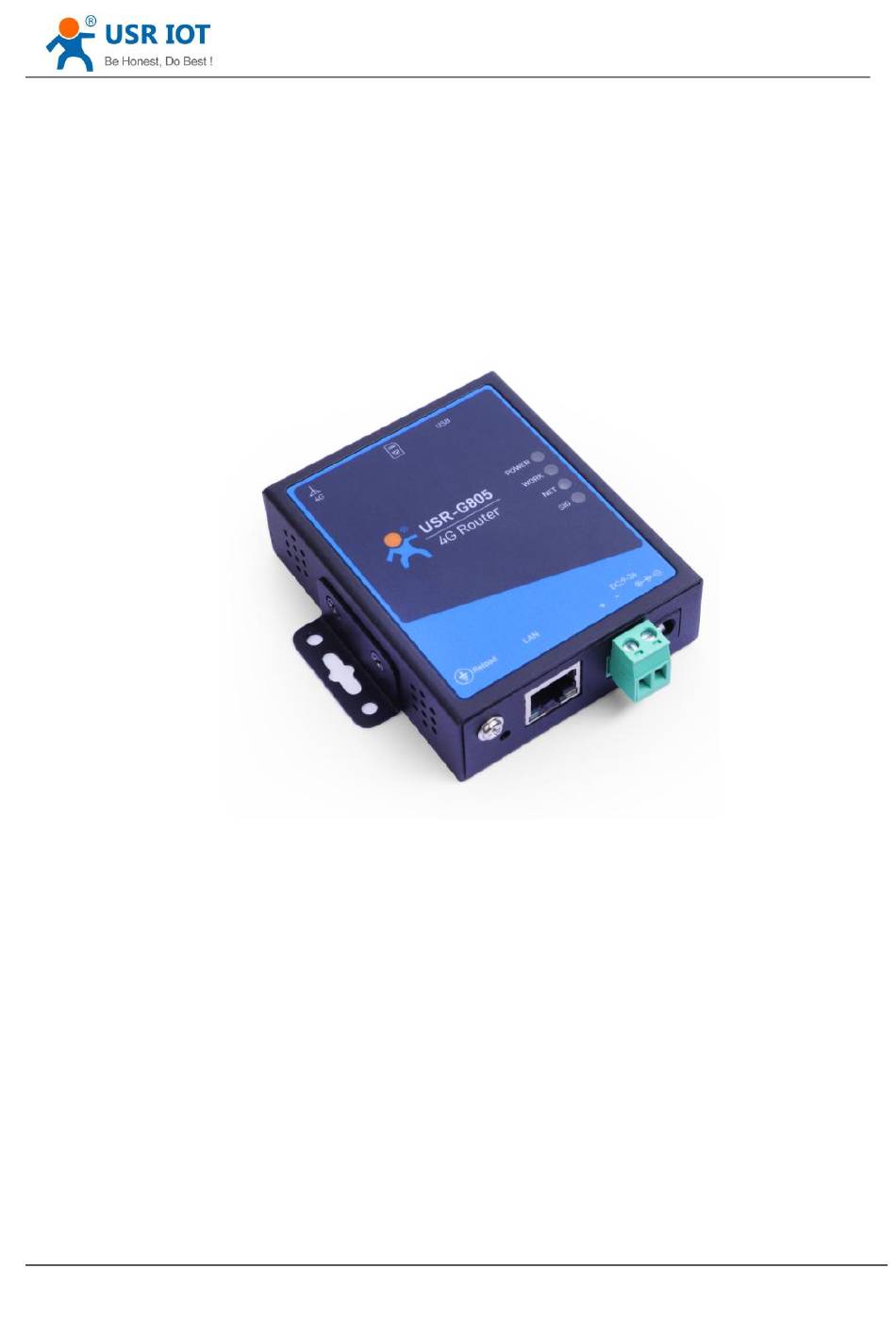

USR-G805 User Manual Technical Support: USR-G805 User Manual www.pusr.com Jinan USR IOT Technology Limited... -
Page 2: Table Of Contents
USR-G805 User Manual Technical Support: USR-G805 User Manual ............................1 1. Introduction ................................4 1.1. Overview ..............................4 1.2. Features ..............................4 1.3. Specification ............................. 5 1.4. Hardware Interface ........................... 6 1.5. Dimensions ...............................6 1.6. Ordering Guide ............................7 2. General Function ..............................7 2.1. - Page 3 USR-G805 User Manual Technical Support: 6.2. DDNS ..............................27 6.2.1. Supported Services ........................27 6.2.2. Custom Services ..........................28 7. Contact Us .................................30 www.pusr.com Jinan USR IOT Technology Limited...
-
Page 4: Introduction
1. Introduction 1.1. Overview USR-G805 is a lightweight 4G industrial wireless router that integrates technologies such as 4G LTE, Ethernet port, and VPN to provide advanced Internet connectivity and high-speed data access for devices. This product also supports remote management cloud platform services, you can easily track your equipment, enjoy higher large-scale deployment and preventive maintenance, improve operation and maintenance efficiency and reduce operating costs. -
Page 5: Specification
IEC61000-4-4, level 1 Physical IEC61000-4-5, level 1 Characteristics Operation -20℃~70℃ Temperature Storage -40℃～+125℃ (non-condensing) Temperature Operation 5%~95% (non-condensing) Humidity Reload Button Supports resetting to factory settings Others USB Port For firmware upgrading Certifications CE, RoHS www.pusr.com Jinan USR IOT Technology Limited... -
Page 6: Hardware Interface
USR-G805 User Manual Technical Support: 1.4. Hardware Interface 1.5. Dimensions Metal housing, supports panel and DIN-rail mounting. Dimensions: 70.0*86.0*25.0mm (Power terminals, antennas, and antenna bases are excluded) www.pusr.com Jinan USR IOT Technology Limited... -
Page 7: Ordering Guide
2. General Function 2.1. Web Interface Connect PC to the LAN port of USR-G805 via an Ethernet cable, or directly connect the PC to the WiFi of the G805, then log into the webpage. Default parameters are as below: Parameters... -
Page 8: Functional Diagram
USR-G805 User Manual Technical Support: 2.2. Functional Diagram Following is the application diagram: www.pusr.com Jinan USR IOT Technology Limited... -
Page 9: Ntp
2.3. NTP NTP client function is default to be enabled, you can set different NTP server address. Option Description Default Enable NTP client Enable/Disable Enable Update cycle NTP update interval Range: 10-3000 Unit: Minute www.pusr.com Jinan USR IOT Technology Limited... -
Page 10: Administration
3~15s then release it, the device will restore to factory and restart automatically. When the device restarts, all the indicators will flash once and then turn off (the power indicator is still on). 2.5.2.Software Reset We can also reset the device via its webpage. www.pusr.com Jinan USR IOT Technology Limited... -
Page 11: Firmware Upgrade
USR-G805 User Manual Technical Support: 2.6. Firmware Upgrade USR-G805 supports upgrading via webpage. Note: The firmware upgrading will last 2-3 minutes , please log into the page again after 3 minutes. You can choose whether to enable Keep Configuration. -
Page 12: Restart
We can set the restart rules to any time of every day, every week and every month to clear the running cache regularly and improve the running stability of the router. The page settings are as follows: www.pusr.com Jinan USR IOT Technology Limited... -
Page 13: Log
Logs include remote log and local log, in System--System Log. 2.9.1.Remote Log Remote log server address: remote UDP server IP address, when IP is 0.0.0.0, the remote log is disabled. Remote log server port: remote UDP server port. www.pusr.com Jinan USR IOT Technology Limited... -
Page 14: Local Log
USR-G805 User Manual Technical Support: 2.9.2.Local Log We can view and download the router logs from below interface. www.pusr.com Jinan USR IOT Technology Limited... -
Page 15: Network
None Password APN password None APN authentication type: Authentication Method None None/PAP/CHAP/PAP&CHAP Network Mode AUTO/2G/3G/4G AUTO PIN Enable Enable: Fill in the pin code of the SIM card Disable PIN Code 4-8 digits 1234 www.pusr.com Jinan USR IOT Technology Limited... -
Page 16: Network Detection
Ping detection address: IP/domain name 114.114.114.114 Address 2 Ping detection address: IP/domain name 8.8.8.8 Maximum Failure Dial again after reaching consecutive failures times, Times 1-100 3.1.3.Information Users can check the detailed configuration information of the SIM card. www.pusr.com Jinan USR IOT Technology Limited... -
Page 17: Lan Settings
1 to 31, and the higher the value, the better the signal strength. In general, dBm≥-90dBm, ASU ≥12, the signal is normal. 3.2. LAN Settings USR-G805 supports one wired LAN port. Descriptions: LAN interface defaults to the static IP address 192.168.1.1 and netmask 255.255.255.0. These parameters can be modified. -
Page 18: Dhcp Server
DHCP server function of the LAN port is enabled by default (can be disabled). Descriptions: Users can change the DHCP start address and end address. IP assigned by DHCP default to start from 192.168.1.100. DHCP default lease is 12 hours. www.pusr.com Jinan USR IOT Technology Limited... -
Page 19: Network Diagnosis
PPTP, L2TP wan_4G Target Destination IP address or IP range Null Netmask Netmask of the destination network Null Gateway The IP address to forward to Null Static routes describe the routing rules for data packets. www.pusr.com Jinan USR IOT Technology Limited... -
Page 20: Routing Table
USR-G805 User Manual Technical Support: 3.4.1.Routing Table G805 has the routing table display function, and you can check whether the created static route is successful. www.pusr.com Jinan USR IOT Technology Limited... -
Page 21: Vpn
USR-G805 User Manual Technical Support: 4. VPN USR-G805 supports PPTP and L2TP. 4.1. PPTP Client This interface allows users to set the PPTP server parameters. Option Description Default Server address VPN server address or domain name test.usr.cn Username/Password Get from the VPN server... - Page 22 USR-G805 User Manual Technical Support: After connecting to PPTP server, we can check the connection status in “VPN Status”. www.pusr.com Jinan USR IOT Technology Limited...
-
Page 23: L2Tp Client
Enable Static IP When it is disabled, VPN server will assign an IP Disable address dynamically. Extra Settings Append pppd parameters, magic number. Null Enable Ping Real-time VPN online detection and reconnection Disable mechanism. www.pusr.com Jinan USR IOT Technology Limited... -
Page 24: Firewall
Do not set the default policy arbitrarily. When the default policy is set to drop, all devices on the internal network may not be able to access the external network. Up to 10 rules can be added. www.pusr.com Jinan USR IOT Technology Limited... -
Page 25: Port Mapping
Port forwarding is similar to port mapping, the difference is the range of forwarding ports. Port forwarding and port mapping cannot be used at the same time. Up to 10 port forwarding rules can be added. www.pusr.com Jinan USR IOT Technology Limited... -
Page 26: Dmz
Port Range Port range for data mapping must be consistent. Null For example, the above picture: the data accessing port 800 of USR-G805 from the external network will be forwarded to port 800 of the subnet IP 192.168.1.214 5.4. DMZ Port mapping is to map a specified port of the WAN port address to a host on the intranet, and the DMZ function is to map all the ports of the WAN port address to a host. -
Page 27: Advanced Services
6. Advanced Services 6.1. PUSR Cloud PUSR Cloud address: https://account.usriot.com/ PUSR Cloud function is enabled by default. For details about connecting USR-G805 devices to our PUSR Cloud, please refer to this manual: Remote Management of USR Router 6.2. DDNS DDNS function allows remote access to the router directly through the domain name instead of your dynamic IP address, which changes from time to time. -
Page 28: Custom Services
6.2.2.Custom Services If you are using the DNS service provider can not be found in Service Provider drop-down box, please select “Custom”, then configure like below, here we also take “3322” as an example: www.pusr.com Jinan USR IOT Technology Limited... - Page 29 Password provided by the DDNS server Null Domain Name Domain name provided by the DDNS server Null Note: After the DDNS connection is successful, the IP resolved from the domain name is the public IP of the device. www.pusr.com Jinan USR IOT Technology Limited...
-
Page 30: Contact Us
USR-G805 User Manual Technical Support: 7. Contact Us Company: Jinan USR IOT Technology Limited Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, Shandong, China Official website: https://www.pusr.com Official shop: https://shop.usriot.com Technical support: http://h.usriot.com/...
