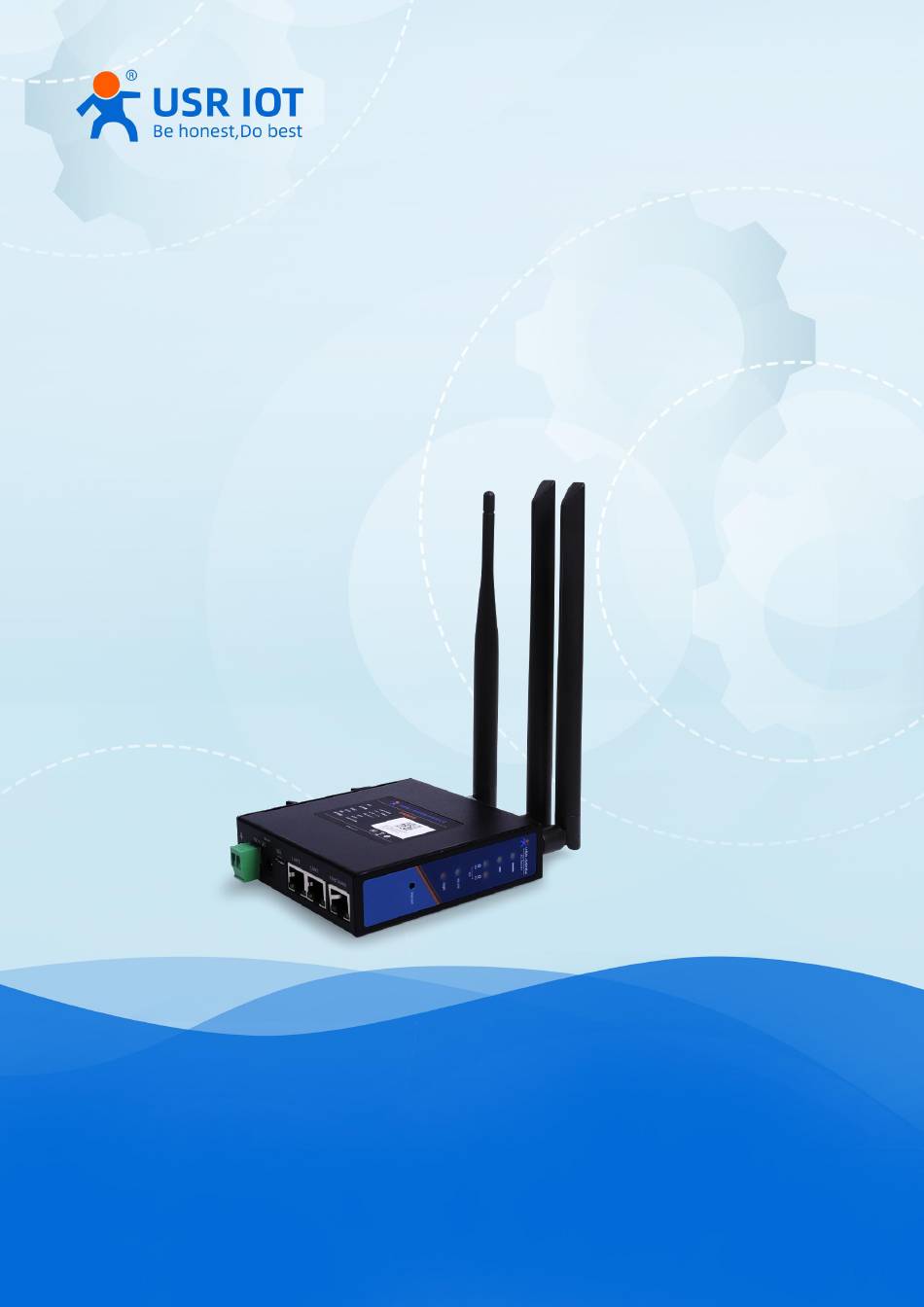

- Page 1 USR-DR404 AT 指令集 USR-G806 Series Industrial 4G router Quick Start Guide V1.0.0 USR-G806w,USR-G806s,G806 Build a Smarter IoT world, Your Trustworthy Partner...
-
Page 2: Table Of Contents
User Manual Content 1. Introduction ........................................... .2 1.1. -
Page 3: Introduction
1.1. Overview USR-G806 series routers are IoT/M2M mobile broadband industrial router which work on 4G/3G cellular network to provide reliable, secure and high speed wireless connectivity for remote management, telemetry, condition monitoring, CCTV, ATMs, vending machine and other M2M applications. - Page 4 User Manual Supports PUSR cloud platform to facilitate remote monitoring and central management of large-scale device networks. Supports remote monitoring, upgrade and parameter configuration, remote access to the built-in web pages. Wall-mounting and DIN-rail mounting options available,easy to install. ...
-
Page 5: Quick Start Guide
2. Quick start guide This chapter contains the Quick Start Guide (QSG) for the USR-G806 series LTE Routers. Here you will find an overview of the various components on the front and back of a G806 device, hardware installation instructions, login information. It is highly recommended to acquaint yourself with the Quick Start Guide before using the device. -
Page 6: Ethernet Interfaces
User Manual Type of sim cards Fig. 2 Type of SIM card: Nano SIM (4FF) 12.30 x 8.80 x 0.67 mm. Industrial Grade SIM cards are recommended for devices requiring a long lifespan used in environments with extreme temperatures, corrosive or extra humid climates, or hard-to-reach locations. 2.1.3. -
Page 7: Led Indicators
User Manual by a 9-36 VDC power supply unit (PSU). If you decide not to use the standard 12 VDC wall adapter and want to power the device from a higher voltage (15-36 VDC), please make sure that you choose a power supply of high quality. Some power supplies can produce voltage peaks significantly higher than the declared output voltage, especially during connection and disconnection. -
Page 8: Din-Rail Mounting
User Manual Wall mount kit Fig. 4 Drill two holes over the two marked locations on the wall. Insert the wall sinks into the walls. Insert the screws into the wall sinks. Leave a 2 mm gap between the wall and the screw head to allow for wall mount plate ... - Page 9 User Manual Install DIN-Rail mounting kit Fig. 6 Once the DIN-Rail is seated correctly in the DIN-Rail clip, press the front of the device to rotate the device down and into the release tab on the DIN-Rail clip. If seated correctly, the bottom of the DIN-Rail should be fully inserted in the release tab. ...
-
Page 10: Antenna Installation
User Manual Removing router from the DIN Rail Fig. 8 2.2.3. Antenna installation Rotate the antenna into the antenna connector accordingly. The external antenna should be installed vertically always on a site with a good signal. 2.2.4. SIM card installation If you intend to use this device to communicate over a cellular network, please place an activated data-provisioned SIM card into the SIM card reader. -
Page 11: Log In The Webui Of Router
User Manual Although internal grounding has been done inside, in order to help limit the effects of noise caused by electromagnetic interference (EMI) and protect your device, it is still strongly advised to ground the device properly. There is a grounding screw next to the terminal block,you should connect it to the grounding at all times. -
Page 12: Configure Your Computer Wi-Fi (Windows)
User Manual Fig. 11 Configure the IP address of PC 3. If not selected, check to obtain an IP address and obtain DNS server address automatically. Click OK. 2.3.2. Configure your computer Wi-Fi (Windows) 1. Ensure the Wireless network connection is Enabled. Go to Start — Control Panel — Network and Internet — Network and Sharing Center. -
Page 13: Login To Device
User Manual 3. If not selected, check to obtain an IP address and obtain DNS server address automatically. Click OK. 4. Connect to a wireless network by right-clicking on Wireless Network Adapter and selecting Connect. Fig. 14 Connect WiFi SSID 5. -
Page 14: Ethernet Wan Configuration
User Manual 2.4.1. Ethernet WAN configuration 1. Go to “Network > WAN” to click Edit button. Fig. 16 WAN configuration 2. Select protocol and configure WAN parameters, click “Save & Apply” button to make the changes take effect. Fig. 17 Configure Wired_WAN 3. -
Page 15: Cellular Connection Configuration
User Manual Fig. 18 Configure the WAN priority 5. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via USR-G806 router. 2.4.2. Cellular connection configuration 1. -
Page 16: Wifi Sta Connection Configuration
User Manual Fig. 20 Mobile information 3. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via USR-G806w router. 2.4.3. WiFi STA connection configuration The WiFi module supports multi-role mode which allows to operate as access point (AP) and station (STA) simultaneously. The multichannel mode is not supported, so the AP and the STA must operate on the same channel only. -
Page 17: Restore To Factory Default Settings
User Manual Click on the navigation bar "Network > WAN" to see the connection status, if connected and get the dynamic DHCP address, it means that the device is online. Fig. 22 wireless networking results 2.5. Restore to factory default settings Login to the WEB page, click on the "System >... -
Page 18: Import/Export Configuration
To start the restoration process, click on upload archive button. After importing the configuration file, restart the system to take effect. 2.7. Technical support and assistance Please visit the USR IoT website: https://www.pusr.com where you can find the latest information about the product. Contact your distributor, sales representative, or PUSR's support center: http://h.usriot.com/index.php?c=frontTicket&m=sign... -
Page 19: Contact Us
User Manual 3. Contact Us Jinan USR IOT Technology Limited Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, Shandong, China Official website:https://www.pusr.com Official shop:https://shop.usriot.com Technical support: http://h.usriot.com/ Email : sales@usriot.com...
