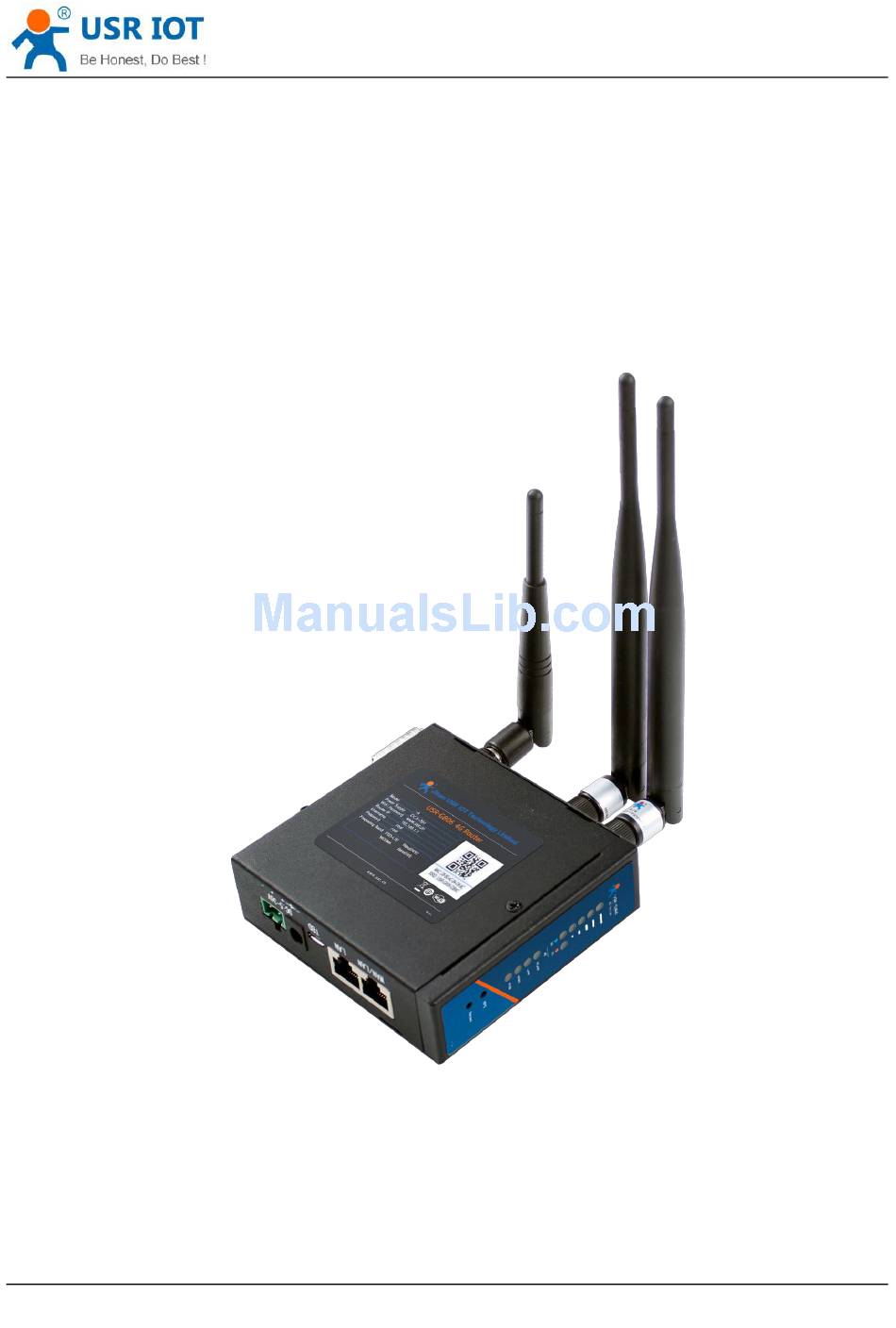

- Page 1 USR-G806-A User Manual Technical Support: h.usriot.com USR-G806-A User Manual File version: V1.0.4.1 Jinan USR IOT Technology Limited www.usriot.com...
- Page 2 2.5.1. Web Server Password....................... 15 2.5.2. Restore............................16 2.5.3. Upgrade Firmware Version...................... 16 2.5.4. Reset.............................. 17 3. Web Server................................18 4. Contact us................................19 5. Disclaimer................................19 6. Updated History..............................19 Appendix: G806-A certification.......................... 20 ISEDC WARNING............................20 FCC WARNING..............................21 Jinan USR IOT Technology Limited www.usriot.com...
-

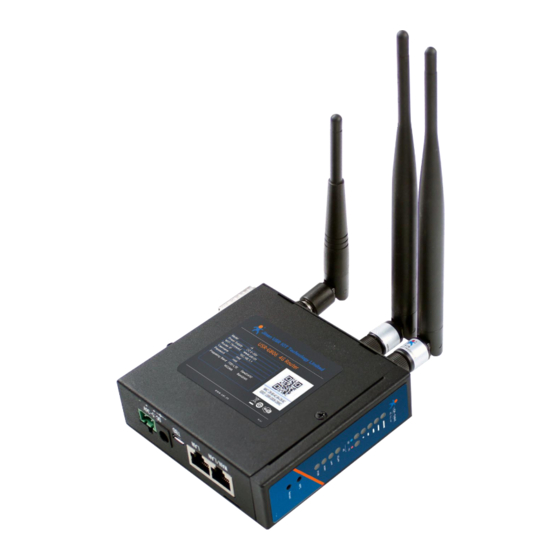

Page 3: Overview
If user has any question, please submit it back to customer center: http://h.usriot.com 1.1. Brief introduction USR-G806-A supports WAN, LAN, WLAN and 4G interface. User can access to 3G/4G network by WLAN interface or Ethernet interface. 1.2. Product feature One RJ45 for WAN/LAN port. 1 RJ45 for LAN port only. (10/100M) ... -
Page 4: Hardware Introduction
Blink: LAN port working Off: LAN port not working Blink: WAN/LAN port working Off: WAN/LAN port not working On: Power on Off: Power off Button Function Reserved Reload Restore default settings Figure 2 LED functions Jinan USR IOT Technology Limited www.usriot.com... -
Page 5: Band
Figure 3 Interface 1.4. Band USR-G806-A has different band model to support different area. To check if the USR-G806-A works in specific country, please check which 3G/4G technology and band is used in this country and operator. Then please contrast our form of different model. - Page 6 Figure 6 Band of G806-43 G806-E Operating Band FDD-LTE TDD-LTE WCDMA GPRS Figure 7 Band of G806-E G806-V Operating Band FDD-LTE Figure 8 Band of G806-V G806-A Operating Band FDD-LTE WCDMA Figure 9 Band of G806-A Jinan USR IOT Technology Limited www.usriot.com...
- Page 7 USR-G806-A User Manual Technical Support: h.usriot.com G806-AU Operating Band FDD-LTE TDD-LTE WCDMA GPRS Figure 10 Band of G806-AU Jinan USR IOT Technology Limited www.usriot.com...
-
Page 8: Product Functions
USR-G806-A User Manual Technical Support: h.usriot.com 2. Product Functions This chapter introduces the functions of USR-G806-A, as the following diagram shown, you can get an overall knowledge of it. Figure 11 Product function 2.1. Install procedure （1） Connect the 4G antenna and Wi-Fi antenna to the router. (Longer one is 3G/4G antenna and Shorter one is Wi-Fi antenna.) -
Page 9: Create A Vpn Client
4G interface to connect internet. In this mode, user can also connect to router through WIFI. To achieve this mode, user don’t need to change the router’s parameters. Just connect the cable to router and insert SIM card, then power the router. Jinan USR IOT Technology Limited www.usriot.com... -
Page 10: Lan+Lan+4G
In this networking mode, two devices can connect to router through LAN and access the Internet by 4G network. User can achieve this by Web Server as follow: Figure 16 Switch WAN/LAN interface Application diagram as follow: Figure 17 LAN+LAN+4G networking Jinan USR IOT Technology Limited www.usriot.com... -
Page 11: Common Functions
G806-A supports two LAN interface (one is WAN/LAN interface). Default settings: One LAN interface (WAN/LAN used as WAN interface; IP address: 192.168.1.1; Subnet mask: 255.255.255.0; Open DHCP function). User can configure LAN interface by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Dhcp Function
G806-A supports one WAN interface and WAN interface can switch between WAN/LAN interface. WAN interface supports DHCP and Static IP, and default setting is DHCP. User can configure WAN interface by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: Wlan Interface
WLAN interface on Web Server as follow: Figure 24 WLAN interface After clicking “Edit” and entering WLAN interface configuration web, user can change follow parameters. User can configure SSID on Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... - Page 14 User can configure password on Web Server as follow: Figure 26 Configure password Other settings on Web Server as follow: Figure 27 Other settings User can close WLAN interface by changing ‘Radio on/off’ into off. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 15: Network Diagnosis
2.4.6. Module Name and Time Zone G806-A default module name is USR-G806-A and default Time Zone is Beijing time zone. User can configure module name and Time Zone by Web Server as follow: Figure 29 Module name and Time Zone 2.5. -
Page 16: Restore
Hardware restore: Press Reload button over 5 seconds and release, G806-A will restore default settings and reset. User can restore default settings by Web Server as follow: Figure 31 Restore default settings 2.5.3. Upgrade Firmware Version Upgrade by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: Reset
User can choose saving settings. User should keep powering up and LAN/WIFI connection during the whole upgrade process. 2.5.4. Reset Reset time is about 40~60 seconds. Reset by Web Server as follow: Figure 33 Reset module Jinan USR IOT Technology Limited www.usriot.com... -
Page 18: Web Server
USR-G806-A User Manual Technical Support: h.usriot.com 3. Web Server When user need to configure the G806-A, user can connect PC to USR-G806-A through LAN interface or WLAN, then open Web Server. Default parameters of G806-A as follows: SSID USR-G806-XXXX IP Address 192.168.1.1... -
Page 19: Contact Us
Tel: 86-531-88826739 5. Disclaimer This document provides the information of USR-G806-A products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any other patent right, copyright, intellectual property right. -
Page 20: Appendix: G806-A Certification
Après examen de ce matériel aux conformité aux limites DAS et/ou aux limites d’intensité de champ RF,les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes La distance minimale du corps à utiliser le dispositif est de 10 mm Jinan USR IOT Technology Limited www.usriot.com... -
Page 21: Fcc Warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Jinan USR IOT Technology Limited www.usriot.com...
