Summary of Contents for USR IOT USR-G800V2

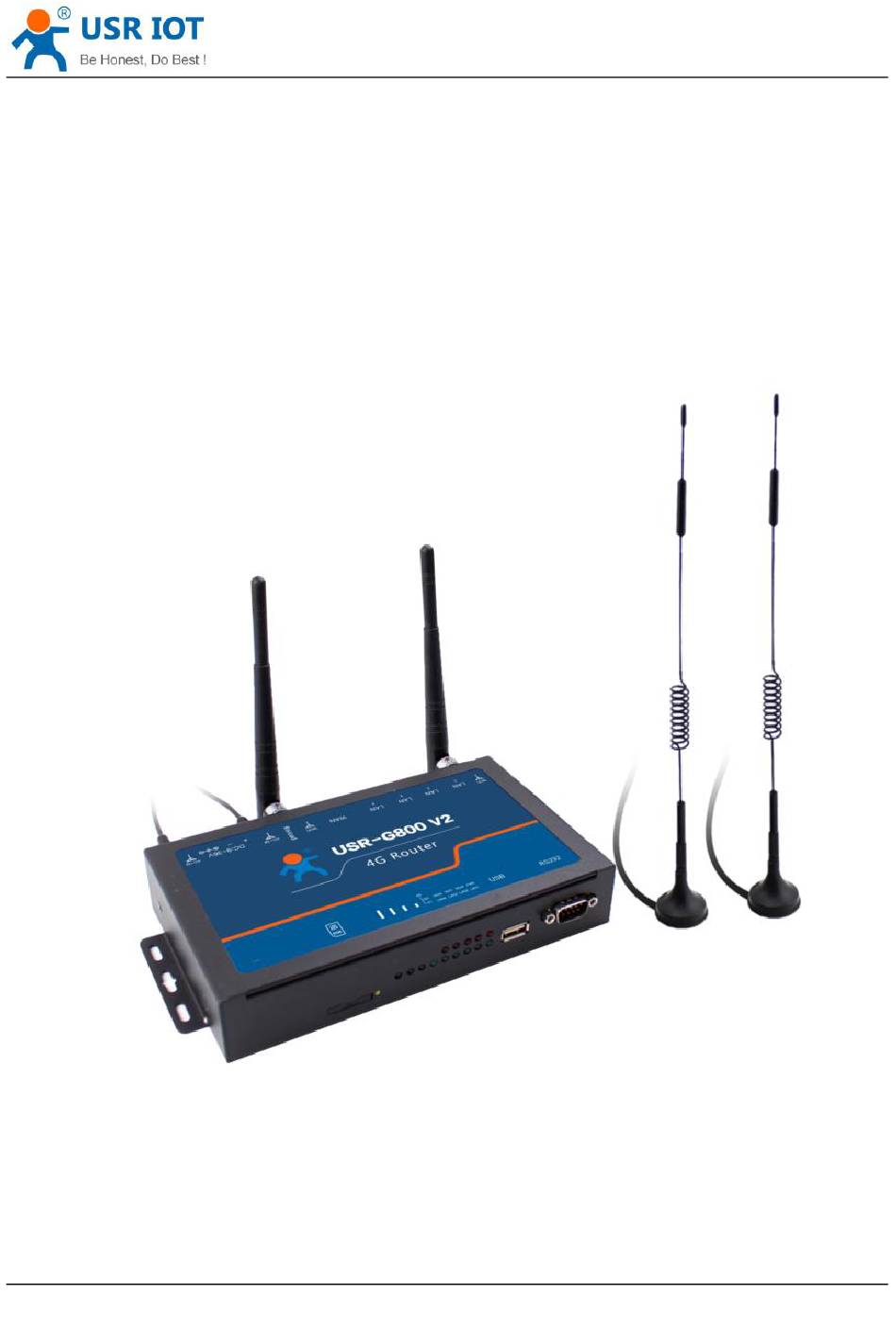

- Page 1 USR-G800 V2 User Manual Technical Support: h.usriot.com USR-G800V2 User Manual File version: V1.0.1 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 2: Table Of Contents
3.3.8 VPN Client(PPTP、L2TP、IPSEC、OPENVPN、GRE、SSTP)........27 3.3.8.1 PPTP..........................27 3.3.8.2 L2TP.......................... 29 3.3.8.3 IPSEC........................31 3.3.8.4 OPENVPN........................ 33 3.3.8.5 GRE........................... 36 3.3.8.6 SSTP..........................39 3.3.9 Static Route..........................40 3.3.10 Firewall............................41 3.3.10.1 NAT Function......................41 3.3.10.2 Restricting Access....................44 Jinan USR IOT Technology Limited www.usriot.com... - Page 3 USR-G800 V2 User Manual Technical Support: h.usriot.com 3.3.10.3 Rate-Limiting......................44 Setup Method..............................44 Webpage Setting..........................44 Web Function............................45 AT Commands..............................48 Contact us................................. 49 Disclaimer................................49 Updated History..............................49 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 4: Quick Start
Install the WIFI antenna and 4G antenna Connect computer and the router LAN port (either LAN1 ~ LAN4) with network cable Configure computer network card, select the automatically obtain IP Jinan USR IOT Technology Limited www.usriot.com... -
Page 5: Webpage Login And Test
After waiting for about 1 minute, the 4G standard light and signal light are on, indicating the success of the router's 4G networking 1.3 Webpage Login and Test The default parameters of G800V2: Parameter Default Account root Password root 192.168.1.1 Login 192.168.1.1, the account and password are both root. Jinan USR IOT Technology Limited www.usriot.com... -
Page 6: Product Overview
Figure3 login webpage 2 Product Overview 2.1 Product Introduction USR-G800V2 support wired WAN port, LAN port, WLAN network, and 4G network interface, support serial port to network data transmission function. 2.2 Feature Support 4 wired LAN ports and 1 wired WAN port ... -
Page 7: Basic Parameters
Work style Voltage Average current Max current LAN(*4)+WAN transmission data（4G normal） DC 12V 338mA 424mA LAN(*1)+WAN transmission data（4G normal） 286mA 362mA LAN(*4)+WAN transmission data（no 4G，WLAN 268mA 314mA normal） WAN transmission data（WALN normal） 235mA 303mA Jinan USR IOT Technology Limited www.usriot.com... -
Page 8: Appearance And Size
USR-G806 User Manual Technical Support: h.usriot.com 2.4 Appearance and Size Figure4 hardware Jinan USR IOT Technology Limited www.usriot.com... -
Page 9: Product Function
Install WIFI antenna and 4G antenna Power on G800 V2 with 12V power adapter Wait for 1 minute, when 4G and signal light on, means the success of the router's 4G networking Jinan USR IOT Technology Limited www.usriot.com... -
Page 10: Basic Function Introduce
USR-G806 User Manual Technical Support: h.usriot.com Figure6 networking 3.2 Basic Function Introduce 3.2.1 Hostnames Figure7 host name page Users can ping this host name. Jinan USR IOT Technology Limited www.usriot.com... - Page 11 USR-G806 User Manual Technical Support: h.usriot.com Figure8 hostname PING function Note: 1. this function will effect after reboot 2. no hostname by default Jinan USR IOT Technology Limited www.usriot.com...
-
Page 12: Diagnostics
Route parsing tool, you can get access to an address, the path through. DNS View Tool, which can resolve domain names to IP addresses. Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: System
USR-G806 User Manual Technical Support: h.usriot.com 3.2.3 System Figure10 hostname and timezone Jinan USR IOT Technology Limited www.usriot.com... -
Page 14: User Name And Password
At the effective moment of restart, SIM card signal light and standard light, 4 lans and WAN ports will be on for 1 second and then off Or restore to factory settings by webpage: Jinan USR IOT Technology Limited www.usriot.com... -
Page 15: Status Light
WAN/LAN indicator will flash; it does not mean that only the wires are plugged in will light up. The power lamp will always be on When LTE module works at 4G, 2G and 3G indicator lights are on. Jinan USR IOT Technology Limited www.usriot.com... -
Page 16: Fw Upgrade
USR-G806 User Manual Technical Support: h.usriot.com 3.2.7 FW Upgrade Figure13 FW upgrade Note: DO NOT POWER OFF WHEN UPGRADING Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: Reboot
USR-G806 User Manual Technical Support: h.usriot.com 3.2.8 Reboot Figure14 reboot Jinan USR IOT Technology Limited www.usriot.com... -
Page 18: Advanced Function
This function cannot be used if the router is on a network that is not assigned to a separate public network You can add more than one DDNS domain name for this router. Jinan USR IOT Technology Limited www.usriot.com... -
Page 19: Wifi-Dog
Disable by default Daemon Disable by default AP ID eec57916f Wifidog server address wifiauth.zhangkongbao.com (e.g.) LAN interface br-lan WAN interface eth0.2 If u want use 4G, pls fill in eth1 Path of server /apps/WIFIguanjia/ Jinan USR IOT Technology Limited www.usriot.com... -
Page 20: Lan
USR-G806 User Manual Technical Support: h.usriot.com 3.3.3 LAN 3.3.3.1 DHCP Function Figure17 DHCP Note: DHCP range 192.168.1.100~192.168.1.250 Leasetime 12h by default The start and limit can be customize Jinan USR IOT Technology Limited www.usriot.com... -
Page 21: Wan
Supports up to 24 wireless STA connections. WLAN and LAN port exchange The maximum coverage of WIFI is 150m in the open area The RFswitch is on by default. Jinan USR IOT Technology Limited www.usriot.com... - Page 22 USR-G806 User Manual Technical Support: h.usriot.com Figure19 WIFI Name Parameter SSID name USR-G800V2-XXXX （xxxx means the last 4 bits of MAC address） Wifi password www.usr.cn channel Auto Band width 40MHz Encryption WPA2-PSK Jinan USR IOT Technology Limited www.usriot.com...
- Page 23 USR-G806 User Manual Technical Support: h.usriot.com Figure20 change SSID Figure21 wireless security Modify whether to turn on the wireless function (turn off the radio frequency, as shown below, effective immediately). Jinan USR IOT Technology Limited www.usriot.com...
-
Page 24: Interface
USR-G806 User Manual Technical Support: h.usriot.com Figure22 radio on/off 3.3.6 4G Interface 3.3.6.1 APN Figure23 APN Ask operator for SIM card APN information and fill in. Jinan USR IOT Technology Limited www.usriot.com... - Page 25 Figure24 APN setup page LTE configuration is as follows: When the default is set to automatic, the priority is 4G>3G>2G. You can also manually force the switch between standard and priority. Figure24 LTE configuration Jinan USR IOT Technology Limited www.usriot.com...
-
Page 26: Serial Port To Ethernet
Support setup of baudrate, data bit, parity bit, stop bit Can’t customize baudrate RS232, hardware flow control is not supported When working with TCP Server, the maximum number of client connections is 128 Jinan USR IOT Technology Limited www.usriot.com... -
Page 27: Vpn Client(Pptp、L2Tp、Ipsec、Openvpn、Gre、Sstp)
(GRE) technology to encapsulate the data into PPP data frames and transmit them through the tunnel. It encrypts or compresses the load data in the encapsulated PPP frames. MPPE encrypts PPP frames through encryption keys generated by MS-CHAP, MS-CHAP V2 or EAP-TLS Jinan USR IOT Technology Limited www.usriot.com... - Page 28 USR-G806 User Manual Technical Support: h.usriot.com authentication processes. Configuring PPTP Client： Figure27 add interface Figure28 create PPTP Jinan USR IOT Technology Limited www.usriot.com...
-
Page 29: L2Tp
3. When the "VPN" interface in the router page has run time (non-zero), it indicates that the current VPN has been successfully started and can access the VPN network. 3.3.8.2 L2TP G800V2 supports tunnel password authentication, CHAP authentication and other authentication methods. Encryption supports MPPE encryption and L2TP OVER IPSEC pre-shared key encryption. Jinan USR IOT Technology Limited www.usriot.com... - Page 30 USR-G806 User Manual Technical Support: h.usriot.com Figure30 add interface Figure31 L2TP Jinan USR IOT Technology Limited www.usriot.com...
-
Page 31: Ipsec
Note: When selecting L2TP OVER IPSEC encryption, IPSEC configuration can refer to IPSEC configuration. 3.3.8.3 IPSEC IPSEC protocol is not a single protocol. It provides a set of architecture for data security between application Jinan USR IOT Technology Limited www.usriot.com... - Page 32 Local identifier: Channel local identifier, which can be IP or domain name. Note that when you customize a domain name, add @ Remote dentifier: Channel-to-end identifier, which can be IP or domain name. Note that when you customize a domain name, add @ Jinan USR IOT Technology Limited www.usriot.com...
-
Page 33: Openvpn
OPEN VPN is an application layer VPN implementation based on Openssl library. It supports certificate-based two-way authentication, that is, the client needs to authenticate the server, and the server also needs to authenticate the client. Jinan USR IOT Technology Limited www.usriot.com... - Page 34 USR-G806 User Manual Technical Support: h.usriot.com Figure36 add interface Figure37 setting page Jinan USR IOT Technology Limited www.usriot.com...
- Page 35 Local Tunnel Address: You can set the local tunnel address, such as 192.168.10.1, if not fill in, default server automatic allocation. Remote Tunnel Address: You can set the opposite tunnel address, such as 192.168.10.1, if not fill in, default server automatic allocation. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 36: Gre
GRE (Generic Routing Encapsulation) protocol is for some network layer protocol (such as IP and IPX) datagram Encapsulation, make the datagram is encapsulated to in another transmission in the network layer protocol (IP). The GRE uses Tunnel technology, which is the third-tier Tunnel protocol of the Virtual Private Network. Jinan USR IOT Technology Limited www.usriot.com... - Page 37 USR-G806 User Manual Technical Support: h.usriot.com Figure40 setting page Figure41 setting page Jinan USR IOT Technology Limited www.usriot.com...
- Page 38 USR-G806 User Manual Technical Support: h.usriot.com Figure42 setting page Figure43 setting page TTL Settings: set the TTL of the GRE channel, default 255 Set MTU: set the MTU of GRE channel, default 1400 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 39: Sstp
SSTP, also known as secure sockets tunnel protocol, is an Internet protocol that creates a VPN tunnel for traffic over HTTPS. SSTP is only available for remote access and does not support VPN tunnels between sites Figure44 setting page Figure45 setting page Jinan USR IOT Technology Limited www.usriot.com... -
Page 40: Static Route
If users want to realize that the PC under G800V2 LAN port accesses the PC under G806 LAN port, users can add a static routing to G800V2. Set up static routing on G800V2 first. (Refer to G800V2 setting principle for setting up G806) Jinan USR IOT Technology Limited www.usriot.com... -
Page 41: Firewall
If the IP dynamic camouflage is checked in the figure, the system will change the source IP address of the packet leaving the router to the IP address of the WAN port. Note: Enable by default. Jinan USR IOT Technology Limited www.usriot.com... - Page 42 Source NAT is a special form of packet camouflage. By changing the source address of the packet leaving the router, the source IP address of the packet leaving the router is fixed to 192.168.9.1. Figure50 setting page Jinan USR IOT Technology Limited www.usriot.com...
- Page 43 USR-G806 User Manual Technical Support: h.usriot.com 3.3.10.1.3 DNAT 3.3.10.1.1.1 Port Forward Figure51 port forward 3.3.10.1.1.2 NAT/DMZ Figure52 setting page Note： Port mapping and DMZ functions cannot be used simultaneously. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 44: Restricting Access
USR-G806 User Manual Technical Support: h.usriot.com 3.3.10.2 Restricting Access Figure53 black/white list 3.3.10.3 Rate-Limiting Figure54 rate-limiting 4 Setup Method 4.1 Webpage Setting Jinan USR IOT Technology Limited www.usriot.com... -
Page 45: Web Function
USR-G806 User Manual Technical Support: h.usriot.com Parameters Default SSID USR-G800V2-XXXX IP of LAN port 192.168.1.1 Account root Password root Wifi-password www.usr.cn Figure55 webpage 4.2 Web Function Status Jinan USR IOT Technology Limited www.usriot.com... - Page 46 USR-G806 User Manual Technical Support: h.usriot.com Figure56 status Interfaces Figure57 interfaces Serial to Ethernet Jinan USR IOT Technology Limited www.usriot.com...
- Page 47 USR-G806 User Manual Technical Support: h.usriot.com Figure58 serial to ethernet system Figure59 system Jinan USR IOT Technology Limited www.usriot.com...
-
Page 48: At Commands
AT+SOCKALK Query connect status AT+SOCK Query/set format of network protocol parameters AT+UART Query/set serial port parameters AT+REGEN Query/set transparent register package AT+HTBT Query/set transparent heartbeat package System Shell Command AT+LINUXCMP Execute system shell command Jinan USR IOT Technology Limited www.usriot.com... -
Page 49: Contact Us
Tel: 86-531-88826739 7 Disclaimer This document provides the information of USR-G800V2 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
