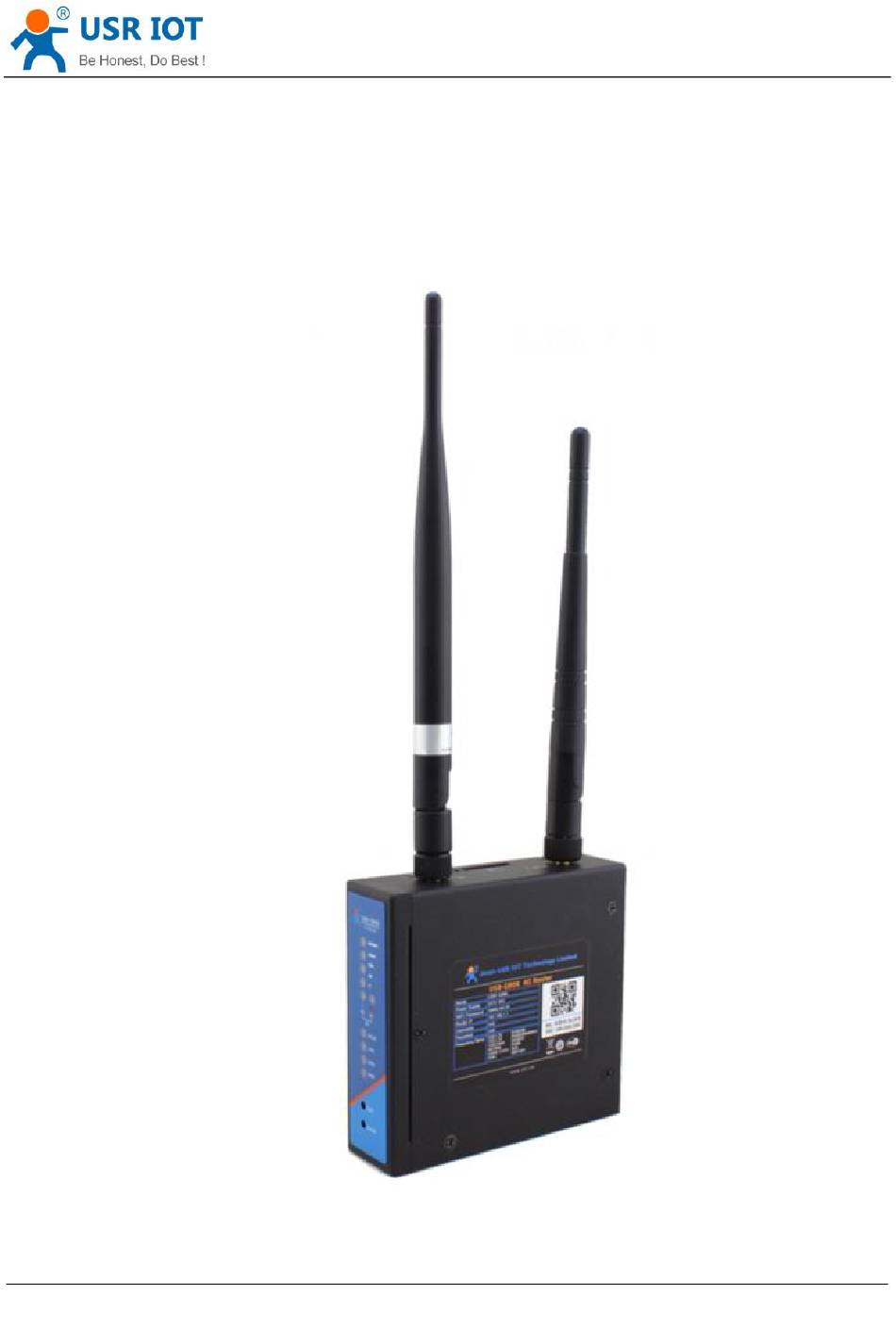

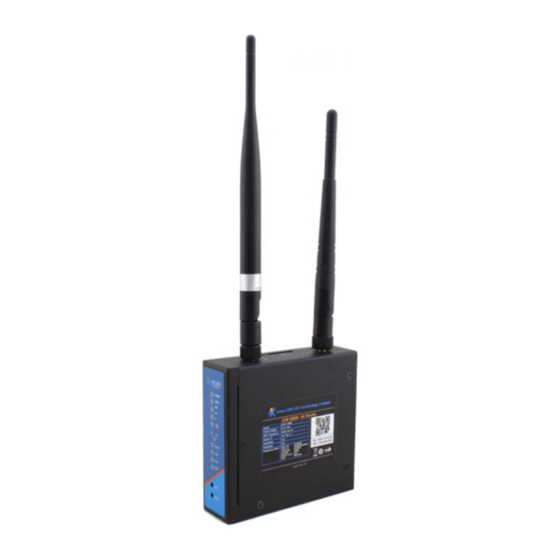

- Page 1 USR-G806 User Manual Technical Support: h.usriot.com USR-G806 User Manual File version: V1.0.4.3 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 2: Table Of Contents
2.5.1. Web Server Password ....................15 2.5.2. Restore ..........................16 2.5.3. Upgrade Firmware Version .................... 16 2.5.4. Reset ..........................17 3. Web Server ............................18 4. Contact us ............................19 5. Disclaimer ............................19 6. Updated History ..........................19 Jinan USR IOT Technology Limited www.usriot.com... -
Page 3: Overview
Support LED to show work status Support Reload button to restore default settings by hardware way Support VPN client(PPTP/L2TP) Support one SIM card socket Support DDNS and port forwarding Support QoS and firewall Jinan USR IOT Technology Limited www.usriot.com... -
Page 4: Hardware Introduction
Blink: LAN port working Off: LAN port not working Blink: WAN/LAN port working Off: WAN/LAN port not working On: Power on Off: Power off Button Function Reserved Reload Restore default settings Figure 3 LED functions Jinan USR IOT Technology Limited www.usriot.com... -
Page 5: Band
3G/4G technology and band is used in this country and operator. Then please contrast our form of different model. G806 Asia G806-43 Asia G806-E Europe G806-V America Verizon G806-A America AT&T G806-AU Australia Figure 5 Different G806 type G806 Operating Band FDD-LTE TDD-LTE Jinan USR IOT Technology Limited www.usriot.com... - Page 6 G806-43 Operating Band FDD-LTE TDD-LTE WCDMA CDMA1X 800MHz CDMA2000-EVDO GPRS Figure 7 Band of G806-43 G806-E Operating Band FDD-LTE TDD-LTE WCDMA GPRS Figure 8 Band of G806-E G806-V Operating Band FDD-LTE Figure 9 Band of G806-V Jinan USR IOT Technology Limited www.usriot.com...
- Page 7 USR-G806 User Manual Technical Support: h.usriot.com G806-A Operating Band FDD-LTE WCDMA Figure 10 Band of G806-A G806-AU Operating Band FDD-LTE TDD-LTE WCDMA GPRS Figure 11 Band of G806-AU Jinan USR IOT Technology Limited www.usriot.com...
-
Page 8: Product Functions
（6） Configure APN parameters according to SIM card. Some SIM card APN can be recognized automatically.(Network->APNSET) （7） Configure other parameters according to user applications. 2.2. APN APN configuration by Web Server as follow: Figure 13 APN configuration Jinan USR IOT Technology Limited www.usriot.com... -
Page 9: Create A Vpn Client
4G interface to connect internet. In this mode, user can also connect to router through WIFI. To achieve this mode, user don’t need to change the router’s parameters. Just connect the cable to router and insert SIM card, then power the router. Jinan USR IOT Technology Limited www.usriot.com... -
Page 10: Lan+Lan+4G
In this networking mode, two devices can connect to router through LAN and access the Internet by 4G network. User can achieve this by Web Server as follow: Figure 17 Switch WAN/LAN interface Application diagram as follow: Figure 18 LAN+LAN+4G networking Jinan USR IOT Technology Limited www.usriot.com... -
Page 11: Common Functions
G806 supports two LAN interface (one is WAN/LAN interface). Default settings: One LAN interface (WAN/LAN used as WAN interface; IP address: 192.168.1.1; Subnet mask: 255.255.255.0; Open DHCP function). User can configure LAN interface by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Dhcp Function
G806 supports one WAN interface and WAN interface can switch between WAN/LAN interface. WAN interface supports DHCP and Static IP, and default setting is DHCP. User can configure WAN interface by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: Wlan Interface
WLAN interface on Web Server as follow: Figure 25 WLAN interface After clicking “Edit” and entering WLAN interface configuration web, user can change follow parameters. User can configure SSID on Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... - Page 14 User can configure password on Web Server as follow: Figure 27 Configure password Other settings on Web Server as follow: Figure 28 Other settings User can close WLAN interface by changing ‘Radio on/off’ into off. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 15: Network Diagnosis
User can configure module name and Time Zone by Web Server as follow: Figure 30 Module name and Time Zone 2.5. Basic Functions 2.5.1. Web Server Password Default password is root, this password is used to enter Web Server. Jinan USR IOT Technology Limited www.usriot.com... -
Page 16: Restore
Hardware restore: Press Reload button over 5 seconds and release, G806 will restore default settings and reset. User can restore default settings by Web Server as follow: Figure 32 Restore default settings 2.5.3. Upgrade Firmware Version Upgrade by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: Reset
User can choose saving settings. ➢ User should keep powering up and LAN/WIFI connection during the whole upgrade process. 2.5.4. Reset Reset time is about 40~60 seconds. Reset by Web Server as follow: Figure 34 Reset module Jinan USR IOT Technology Limited www.usriot.com... -
Page 18: Web Server
192.168.1.1, log in with User name and Password(both are root), user can enter Web Server. Figure 36 Web Server login web User can change the language between Chinese/English in the top right corner. Jinan USR IOT Technology Limited www.usriot.com... -
Page 19: Contact Us
USR-G806 User Manual Technical Support: h.usriot.com 4. Contact us Company: Jinan USR IOT Technology Limited Address: Floor 11, Building 1, No. 1166 Xinluo Street, Gaoxin District, Jinan, Shandong, 250101, China Web: www.usriot.com Support: h.usriot.com Email: sales@usr.cn Tel: 86-531-88826739 5. Disclaimer This document provides the information of USR-G806 products, it hasn’t been granted any intellectual property...
