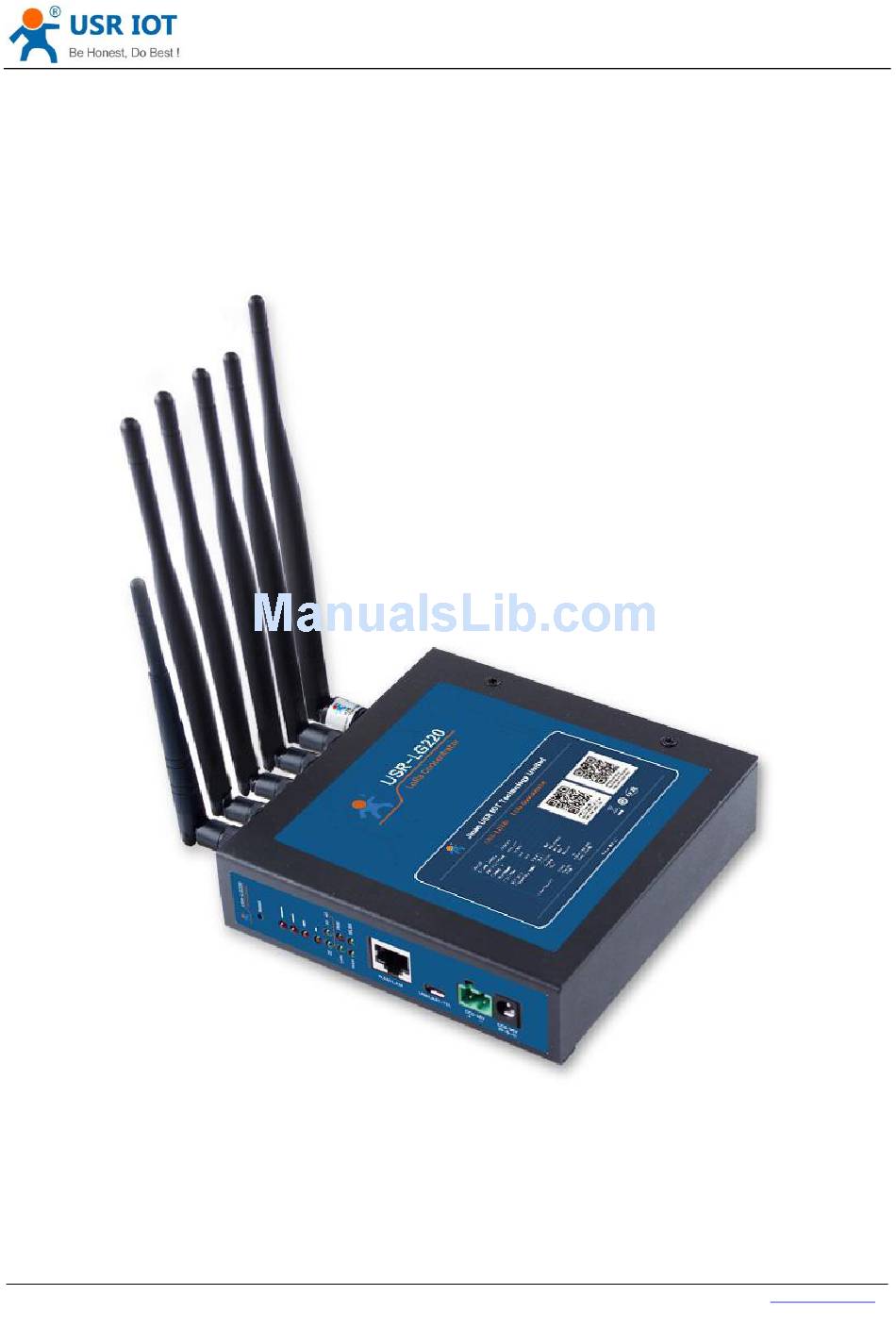

Page 1: Usr-Lg220-L User Manual
Technical Support: h.usriot.com USR-LG220-L User Manual USR-LG220-L User Manual File Version: V1.0.6.01 Jinan USR IOT Technology Limited www.usriot.com... -
Page 2: Table Of Contents
Technical Support: h.usriot.com USR-LG220-L User Manual Contents USR-LG220-L User Manual ..........................1 Features ..................................3 1.Get Start ................................. 4 1.1.Product introduction ..........................4 1.2.Basic parameters ............................. 4 1.3.Application diagram ..........................4 1.4.Hardware design ............................5 1.4.1.Interface ............................5 1.4.2.LED ..............................5 1.4.3.Dimension ............................ -
Page 3: Features
Support VPN(PPTP/L2TP), PPPOE, DHCP and static IP. ⚫ Support various LED function. ⚫ Support restore default settings by hardware. ⚫ Support MQTT/socket server connection. ⚫ Support long-distance transmission and transmission distance can be 2000 meters. ⚫ Jinan USR IOT Technology Limited www.usriot.com... -
Page 4: Get Start
Power, WiFi, 2G/3G/4G, WAN interface, TX/RX Temperature Working -20℃~+70℃ temperature Storage temperature -40℃~+75℃ Humidity Working humidity 5%~95%RH Storage humidity 1%~95%RH Power supply Voltage DC 5~36V(Standard: 12V/1A) Power consumption 5V/0.6A, 12V/0.3A, 36V/0.07A Figure 1 Basic parameters 1.3.Application diagram Jinan USR IOT Technology Limited www.usriot.com... -
Page 5: Hardware Design
Light when LTE module works in 3G mode. RSSI(1~4) More RSSI LED light means stronger RSSI. Figure 4 LED Note: When LTE module works in 4G mode, 2G and 3G LED will both light. Jinan USR IOT Technology Limited www.usriot.com... -
Page 6: Dimension
Technical Support: h.usriot.com USR-LG220-L User Manual 1.4.3.Dimension Figure 5 Dimension Jinan USR IOT Technology Limited www.usriot.com... -
Page 7: Product Function
LG220 will return response automatically after receiving data from LoRa node module and will also upload valid data to server. In this mode, LG220 will enter listening status after powering on. Matched LoRa modules will send accessing ➢ Jinan USR IOT Technology Limited www.usriot.com... - Page 8 Adjacent Nodes Time slot: Idle time from last node finish transmission to current node start transmission. This ➢ parameter is to prevent reporting data interference between adjacent node and supports at most 65535ms. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 9: Polling Waking Mode
In this mode, user can configure at most 16 waking data. User can configure LG220 into this mode by Web Server as follows(Three communication channels all need to configured into this mode and same rate): Jinan USR IOT Technology Limited www.usriot.com... - Page 10 ➢ data and support at most 65535ms. Polling interval: Interval from finish polling all nodes to start next polling and support at most 10 days. Unit: ➢ Figure 10 Polling waking mode channel settings Jinan USR IOT Technology Limited www.usriot.com...
-
Page 11: Connect To Server
User can configure LG220 to connect to MQTT server by Web Server as follow: Figure 12 MQTT Server configuration MQTT Client ID: Registration Code on the surface label of LG220. ➢ 2.3.2.Socket connection User can configure LG220 to connect to socket server by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Other Lora Configuration
LG220 and LoRa node module will access to LG220 network again after deleting. Node packet count cleared: Clear the node data receiving/transmitting count in the following Figure 15 ➢ Concentrator information and recount. Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: Node Management
Replace ‘Current Node ID’ node to ‘Replace Node ID’ node. ID should in HEX format and less than ➢ 32 bytes. Restart Current Node now: Restart ‘Current Node ID’ node. ➢ If users chooses both ‘replace now’ and ‘Restart Current Node now’, LG220 will executive ‘replace now’ command. Jinan USR IOT Technology Limited www.usriot.com... -
Page 14: Features
LG220 supports one 4G interface to access internet. Functional diagram as follow: 4G Interface LG220 ETH1/PPP0 APN settings Internet Network Status(Run Selection(2G/3G/4G) time, IP and flow) Remote monitoring/ upgrading（Planned） Figure 18 4G interface functional diagram User can configure 4G interface by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 15: Wan Interface
Note: LG220 will consider wired WAN interface as priority, then is 4G network. And when user configures 4G interface, please keep 4G interface protocol in default setting, 2.5.2.WAN interface User can configure WAN interface by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... - Page 16 Note: LG220 supports one wired WAN interface. WAN interface supports DHCP Client mode and Static IP mode, and default setting is DHCP Client mode. WAN interface can also switch to LAN interface and user can switch it by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com...
-
Page 17: Wifi Interface
⚫ Default parameters as follows: SSID USR-LG220 -L-XXXX(XXXX is MAC address) Password www.usr.cn Channel Auto Bandwidth 40MHz Encryption Mode WPA2-PSK Figure 23 WiFi interface default parameters Configure WiFi interface on Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... - Page 18 Technical Support: h.usriot.com USR-LG220-L User Manual Figure 24 WiFi interface settings User can configure SSID on Web Server as follow: Figure 25 Configure SSID User can configure password on Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com...
-
Page 19: Network Diagnosis
Other settings on Web Server as follow: Figure 27 WiFi interface Other settings User can close WiFi interface by changing ‘Radio on/off’ into off. 2.5.4.Network Diagnosis User can use network diagnosis function by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 20: Upgrade Firmware
The whole upgrade process will last for some time and user can try to enter Web Server again after waiting ➢ some time. User can choose saving settings. ➢ ➢ User should keep powering up and LAN/WiFi connection during the whole upgrade process. 2.5.6.Restart Restarting time is about 60 seconds. Jinan USR IOT Technology Limited www.usriot.com... - Page 21 Technical Support: h.usriot.com USR-LG220-L User Manual Restart by Web Server as follow: Figure 30 Restart module Jinan USR IOT Technology Limited www.usriot.com...
-
Page 22: Configuration
192.168.1.1, log in with User name and Password(both are root), user can enter Web Server. Figure 32 Web Server login web User can change the language between Chinese/English in the top right corner. Jinan USR IOT Technology Limited www.usriot.com... -
Page 23: Contact Us
Tel: 86-531-88826739/86-531-55507297 5.Disclaimer This document provides the information of USR-LG220-L products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
