Summary of Contents for USR IOT USR-G806

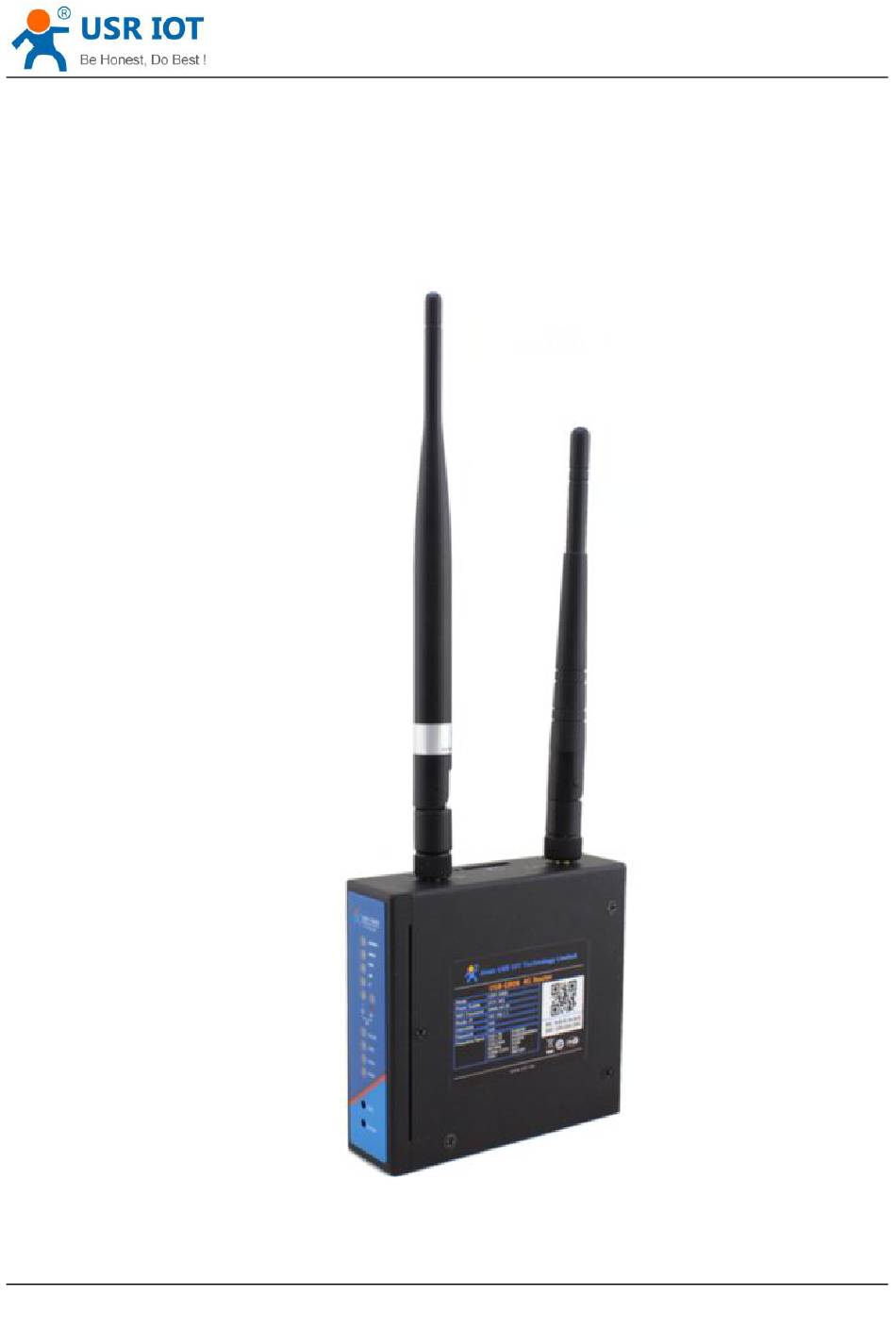

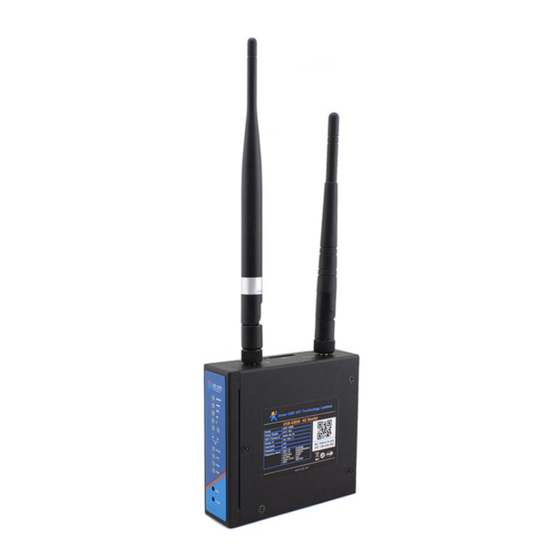

- Page 1 USR-G806 User Manual Technical Support: h.usriot.com USR-G806 User Manual File version: V1.0.5 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 2: Table Of Contents
3.4.9 VPN Client............................24 3.4.9.1 PPTP Client......................... 24 3.4.9.2 L2TP Client....................... 27 3.4.9.3 IPSEC........................31 3.4.9.4 OPENVPN........................ 33 3.4.9.5 GRE........................... 37 3.4.9.6 SSTP Client......................40 3.4.10 Static Router..........................41 3.4.11 NAT Function..........................41 3.4.11.1 MASQ........................41 Jinan USR IOT Technology Limited www.usriot.com... - Page 3 USR-G806 User Manual Technical Support: h.usriot.com 3.4.11.2 SNAT..........................42 3.4.11.3 DNAT......................... 43 3.4.11.2 Access Restrictions......................44 3.4.11.2.1 Domain Blacklist...................... 45 3.4.11.2.2 Whitelist.......................... 45 3.4.11.3 Rate Limiting..........................45 AT Commands..............................46 Contact us................................. 47 Disclaimer................................47 Updated History..............................47 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 4: Quick Start
If user has any question, please submit it back to customer center: http://h.usriot.com 1.1. Communication Test USR-G806 supports WAN, LAN, WLAN and 4G interface. User can access to 3G/4G network by WLAN interface or Ethernet interface. Jinan USR IOT Technology Limited... -
Page 5: Net Connection
Wait for about a minute, and the 2/3G indicator lights up, indicating that the router's 4G network is successful and can be connected to the Internet. 1.3. Router Initial Value Table 1 router initial value Parameter Initial value Account root Password root IP address 192.168.1.1 Jinan USR IOT Technology Limited www.usriot.com... -
Page 6: Product Overview
Support remote upgrade and remote monitoring Support Dynamic Domain Name System (DDNS) Support mandatory portal (WIFIDOG), this function needs to be customized according to customer needs. Support SMS AT command Jinan USR IOT Technology Limited www.usriot.com... -
Page 7: Hardware Introduction
Off: Wi-Fi disabled Blink: LAN port working Off: LAN port not working Blink: WAN/LAN port working Off: WAN/LAN port not working On: Power on Off: Power off Button Function Reserved Reload Restore default settings Jinan USR IOT Technology Limited www.usriot.com... - Page 8 USR-G806 User Manual Technical Support: h.usriot.com Unit:mm Figure 5 size Jinan USR IOT Technology Limited www.usriot.com...
-
Page 9: Band
Figure 6 Interface 2.3. Band USR-G806 has different band model to support different area. To check whether the USR-G806 works in specific country, please check which 3G/4G technology and band is used in this country and operator. Then please contrast our form of different model. - Page 10 USR-G806 User Manual Technical Support: h.usriot.com G806-43 Operating Band FDD-LTE TDD-LTE WCDMA CDMA1X 800MHz CDMA2000-EVDO GPRS G806-E Operating Band FDD-LTE TDD-LTE WCDMA GPRS G806-A Operating Band FDD-LTE WCDMA Jinan USR IOT Technology Limited www.usriot.com...
-
Page 11: Product Functions
TDD-LTE WCDMA GPRS 3. Product Functions This chapter introduces the functions of USR-G806, as the following diagram shown, you can get an overall knowledge of it. Figure 7 Product function 3.1. Configuration Process （1） Connect the 4G antenna and Wi-Fi antenna to the router. (Longer one is 3G/4G antenna and Shorter one is Wi-Fi antenna.) -
Page 12: Interconnection
WIFI function of router can also work at the same time to maximize the number of LAN access. This method is mainly used in the stably network, Such as factory buildings, intelligent buildings, smart cities and other related industries. Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: Double Lan+4G
USR-G806 User Manual Technical Support: h.usriot.com 3.2.1 Double LAN+4G Set the two Ethernet port work as LAN port, the webpage is as follow, Figure 9 Double LAN+4G Figure10 Webpage Jinan USR IOT Technology Limited www.usriot.com... -
Page 14: Basic Function
3.3.2 Host Name and Time Zone G806 default module name is USR-G806 and default Time Zone is Beijing time zone. User can configure module name and Time Zone by Web Server as follow: Figure 12 hostname and time zone Jinan USR IOT Technology Limited www.usriot.com... -
Page 15: Password
User can restore default settings by Web Server as follow: Figure 14 restore default settings 3.3.5 Indicator Light Name Intro Power On when power on On when use the WAN port, flicker when data Jinan USR IOT Technology Limited www.usriot.com... -
Page 16: Upgrade Firmware Version
User can choose saving settings. User should keep powering up and LAN/WIFI connection during the whole upgrade process. 3.3.7 Reset Reset time is about 40~60 seconds. Reset by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: Advanced Function
USR-G806 User Manual Technical Support: h.usriot.com Figure 16 reset 3.4. Advanced Function 3.4.1 DDNS Jinan USR IOT Technology Limited www.usriot.com... -
Page 18: Wifi-Dog
Force update time Mandatory update interval e.g. 72 h /force-time unit 3.4.2 WIFI-Dog After clicking on open and save, the router needs to be restarted, and the authentication server needs to be customized. Jinan USR IOT Technology Limited www.usriot.com... -
Page 19: Sms At Commands
USR-G806 User Manual Technical Support: h.usriot.com Figure 18 wifi-dog 3.4.3 SMS AT Commands You should send SMS in this format: root#AT+COMMAND Figure 19 SMS AT commands Jinan USR IOT Technology Limited www.usriot.com... -
Page 20: Lan Interface
DHCP default range of distribution is from 192.168.1.100 to 192.168.1.250 and default address lease time is 12 hours. Address range and lease time can be changed. After you enter Web Server LAN interface, you can find ‘DHCP Server’ on Web Server as follow: Figure 21 DHCP function Jinan USR IOT Technology Limited www.usriot.com... -
Page 21: Wan Interface
G806 supports at most 24 STA devices connected. The maximum coverage of WIFI is 180m Default parameters as follows: SSID USR-G806-XXXX(XXXX is MAC) Password www.usr.cn Channel Auto Bandwidth 40MHz Encryption Mode WPA2-PSK WLAN interface on Web Server as follow: Figure 23 WLAN interface Jinan USR IOT Technology Limited www.usriot.com... - Page 22 After clicking “Edit” and entering WLAN interface configuration web, user can change follow parameters. User can configure SSID on Web Server as follow: Figure 24 Configure SSID User can configure password on Web Server as follow: Figure 25 Configure password Other settings on Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com...
-
Page 23: Interface
G806 supports one 4G interface to access internet. Functional diagram as follow: Figure 27 4G interface User can configure 4G interface by Web Server as follow: Figure 28 4G interface 3.4.8 APN APN configuration by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 24: Vpn Client
In the connection box, click "Properties", the tab can set the target address (the address of the VPN server), security options to select "PPTP protocol", after the point is determined, enter the username, password. Jinan USR IOT Technology Limited www.usriot.com... - Page 25 Next we use the PPTP Client on the router to replace the way of computer dialing. Assuming that the user has obtained the VPN server address, account and password, we create an interface, select the PPTP protocol, and write the other parameters in turn. Figure31 the webpage1 of VPN Jinan USR IOT Technology Limited www.usriot.com...
- Page 26 USR-G806 User Manual Technical Support: h.usriot.com Figure32 the webpage2 of VPN Select WAN, because it is dialing at WAN port, then save and apply. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 27: L2Tp Client
L2TP is a layer 2 tunneling protocol, similar to PPTP. At present, G806 supports various authentication methods such as tunnel password authentication, CHAP, etc., supporting encryption methods of MPPE and pre-shared key encryption methods of L2TP OVER IPSEC. Jinan USR IOT Technology Limited www.usriot.com... - Page 28 USR-G806 User Manual Technical Support: h.usriot.com Figure34 create interface Figure35 auth type Jinan USR IOT Technology Limited www.usriot.com...
- Page 29 USR-G806 User Manual Technical Support: h.usriot.com Figure36 tunnel auth password Jinan USR IOT Technology Limited www.usriot.com...
- Page 30 USR-G806 User Manual Technical Support: h.usriot.com Figure37 L2TP OVER IPSEC auth type Jinan USR IOT Technology Limited www.usriot.com...
-
Page 31: Ipsec
For terminal network: IPSEC end protection subnet and subnet mask. Local terminal identifier: the channel local identifier can be IP or domain name. Note that when the domain name is customized, add @ Jinan USR IOT Technology Limited www.usriot.com... - Page 32 Session secret key forward encryption (PFS): if hook is activated, PFS will enable. Authentication method: currently supports the pre shared key authentication method. Note After the configuration, the ISAKMP SA established flag in the connection log indicates that the IPSEC VPN was created successfully. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 33: Openvpn
USR-G806 User Manual Technical Support: h.usriot.com 3.4.9.4 OPENVPN Add one interface, choose TUN or TAP mode: Figure40 add new interface Jinan USR IOT Technology Limited www.usriot.com... - Page 34 USR-G806 User Manual Technical Support: h.usriot.com Figure41 add OPENVPN interface Jinan USR IOT Technology Limited www.usriot.com...
- Page 35 Local tunnel address: set the local tunnel address, such as 192.168.10.1, otherwise the default server automatically allocates. Remote Tunnel Address: set the tunnel address on the opposite side, such as 192.168.10.1, otherwise the default server automatically allocates. Jinan USR IOT Technology Limited www.usriot.com...
- Page 36 1. Before the client connects to the server, the Ca certificate, the client certificate, the client key, the TLS authentication key, these need to be provided by the server. 2. After obtaining the certificate file, copy the different certificate contents into the edit box corresponding to the configuration interface. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 37: Gre
USR-G806 User Manual Technical Support: h.usriot.com 3.4.9.5 Figure44 add new interface Jinan USR IOT Technology Limited www.usriot.com... - Page 38 USR-G806 User Manual Technical Support: h.usriot.com Figure45 add GRE interface Jinan USR IOT Technology Limited www.usriot.com...
- Page 39 Local address: the local address of wan_wried and wan_4g, users need fill in one of them according to need. Remote Tunnel Address: the opposite GRE tunnel IP. Local Tunnel Address: the local GRE tunnel IP. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 40: Sstp Client
Figure47 GRE advance setting TTL settings: set the TTL of the GRE channel, by default 255 Set MTU: set the MTU of the GRE channel, by default 1400 3.4.9.6 SSTP Client Figure48 add new interface Jinan USR IOT Technology Limited www.usriot.com... -
Page 41: Static Router
MASQ, MASQUREADE, address masking, will leave the packet source IP into a router interface IP address, such as check IP dynamic masking, the system will flow out of the router packet source IP address changed to WAN port IP address. Jinan USR IOT Technology Limited www.usriot.com... -
Page 42: Snat
Figure50 MASQ setting 3.4.11.2 SNAT Source NAT changes the source address of the packet leaving the router, closing the IP dynamic camouflage of the WAN port first when used. Then setup SourceNAT. Figure51 NAT setting1 Jinan USR IOT Technology Limited www.usriot.com... -
Page 43: Dnat
3.4.11.3.1 Port Forward Figure54 port forward setting1 Figure55 port forward setting2 Then save the settings. 192.168.1.1:80 is the web server of routers. If we want to access a device in the LAN from the outside network, Jinan USR IOT Technology Limited www.usriot.com... -
Page 44: Access Restrictions
When a whitelist is selected, the device connecting the router can access the domain name of the whitelist only. Jinan USR IOT Technology Limited www.usriot.com... -
Page 45: Domain Blacklist
3.4.11.3 Rate Limiting Network speed control can limit the speed of devices connecting to routers, support IP segment address speed limit and MAC address speed limit, and rules can be added at the same time. Jinan USR IOT Technology Limited www.usriot.com... -
Page 46: At Commands
Query/set the LAN of IP AT+WEBU Query/set the webpage account and password AT+PLANG Query/set the default language AT+RELD Recover to factory setting AT+Z Restart AT+DHCPEN Open/close DHCP Server System shell command AT+LINUXCMP Execute system shell command Jinan USR IOT Technology Limited www.usriot.com... -
Page 47: Contact Us
Tel: 86-531-88826739 6. Disclaimer This document provides the information of USR-G806 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
