Shure AXT630 User Manual

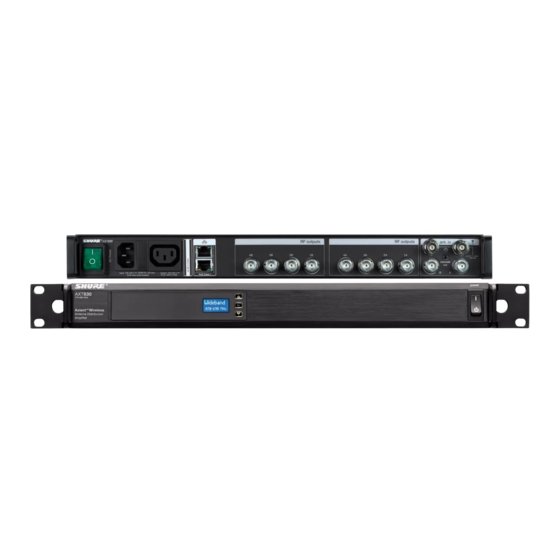

General Description
Antenna Distribution Systems send the RF signal from a single pair of anten-
nas to multiple receivers. Ultra-linear amplification and adjustable attenuation
optimize performance in difficult RF environments. Selectable input filters
match the available frequency bands of transmitters, providing extra protection
from strong out-of-band signals. BNC antenna output pairs distribute band-
filtered signals to up to 4 receivers. A pair of wideband cascade ports supply
wideband RF signals to Spectrum Managers or additional antenna distribution
amplifiers. Networking allows Wireless Workbench to control filtering ranges
and attenuation. For added flexibility, Axient Antenna Distribution Systems
are compatible with Shure ULX-D and UHF-R receivers.
To maximize use of the RF spectrum, Antenna Distribution Systems are
available in the following frequency ranges:
• AXT630 (470-698 MHz)
• AXT631 (606-814 MHz)
• AXT632 (470-510 MHz and 630-787 MHz)
Mounting Instructions
This component is designed to fit into an audio rack.
WARNING: To prevent injury this apparatus must be securely attached to
the rack.

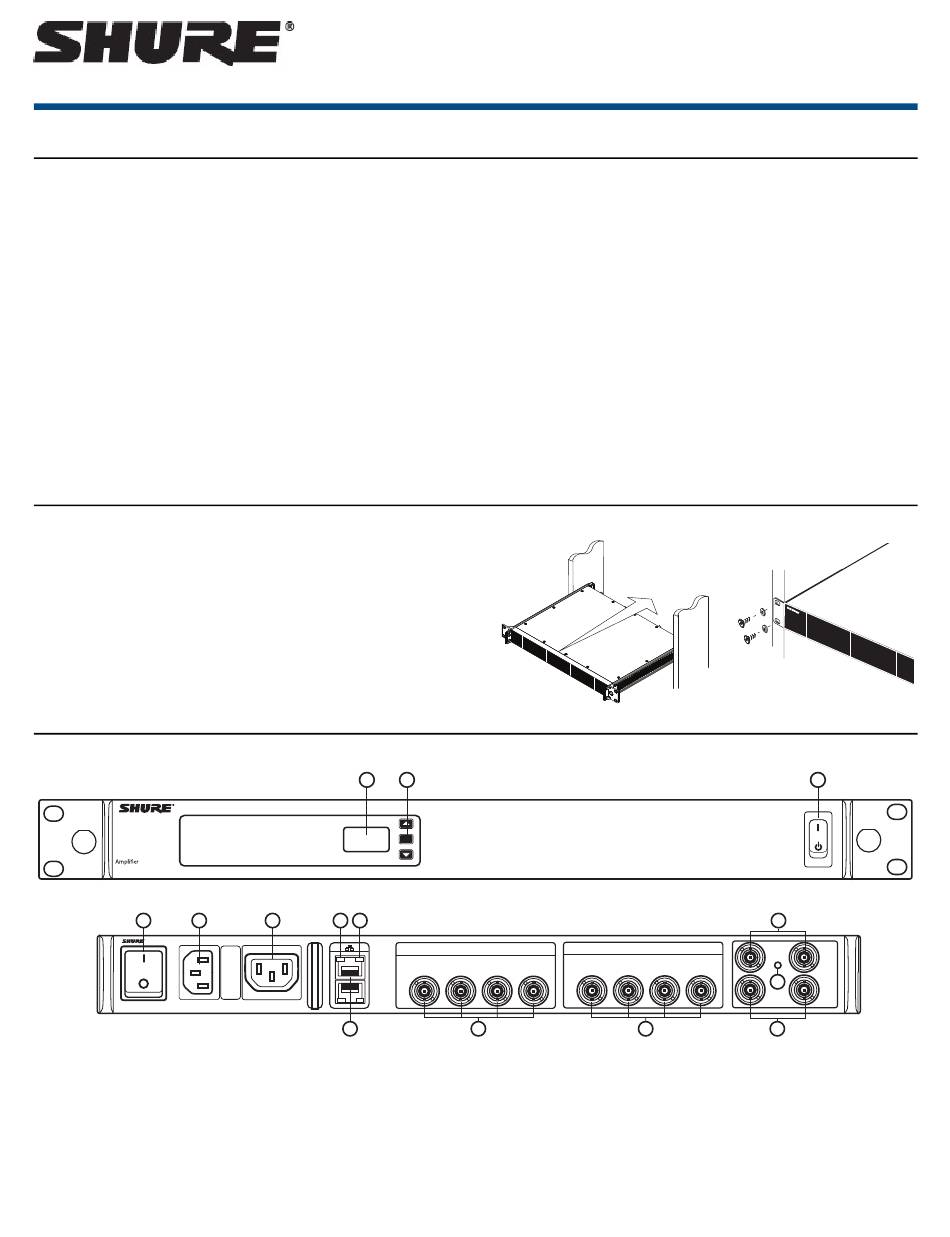

Controls and Connectors
AXT631
606-814 MHz
Antenna Distribution
4 5
AXT631
① LCD Display
Displays menu and settings.
② Navigation Buttons
• Arrows: Scroll menus and change settings
• Set: Enables menu edits and saves changes
Tip: Press and hold the Set button for 1 second to activate the Hardware Identify feature in Wireless Workbench.
©2017 Shure Incorporated
1 2
SET
6 7 9
4B
PoE Class 1
8
Note: Instructions in this system guide apply all models of Axient Antenna
Distributions Systems.
Features
• Selectable input filtering provides system-wide protection against strong
out-of-band signals
• Wideband filtering option covers multiple bands
• Up to 15 dB of selectable RF attenuation for signal-to-noise optimization
• Front panel interface and Wireless Workbench 6 software control provide
easy setup and control of filtering, antenna power, and attenuation
• BNC outputs: 4 antenna output pairs
• Wideband RF cascade port with selectable 3 dB make-up gain for con-
necting wideband devices
• Ethernet Networking: 2 PoE enabled Ethernet ports
• IEC power ports enable daisy-chaining of AC power
RF outputs
3B 2B 1B 4A 3A
10
Antenna Distribution System
3
power
12
RF outputs
2A 1A
14
B A
11 13
AXT630
antenna
in
1/9
