- Page 1 UA844plus SWB Antenna Distribution System The Shure UA844SWB antenna distribution system user guide. Version: 4 (2019-H)
- Page 2 Shure Incorporated Table of Contents Specifications UA844plus SWBAntenna Distribution System FRONT AND REAR PANELS Connecting Multiple UA844 Systems General Description Model Variations Certifications Accessories Important Product Information System Components LICENSING INFORMATION Optional Accessories...
-
Page 3: General Description
General Description The Shure Model UA844+ is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. -
Page 4: Specifications
Antenna Rack Panel with Cables and BNC Adapters UA440 Note: Be sure to select antennas and accessories that are compatible with the operating frequency range of your wireless system. Contact Shure or your local retailer for help with selecting the right wireless accessories. -
Page 5: Front And Rear Panels

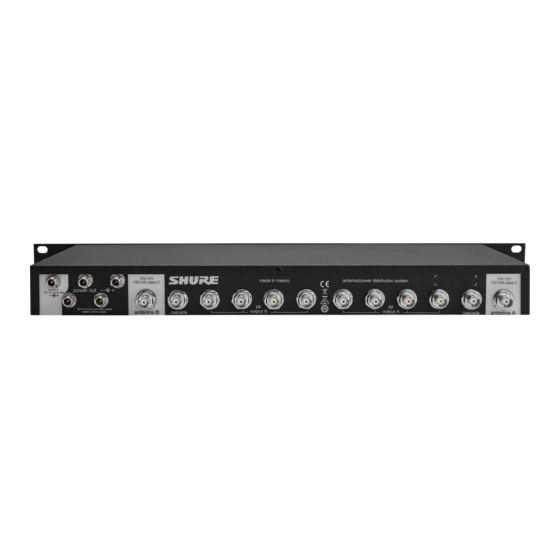

Shure Incorporated Impedance 50 Ω RF Frequency Range model dependent 174 to 1805 MHz Output Intercept Point 21 dBm, typical Connector Type Impedance 50 Ω Output Connector Isolation 30 dB, typical Gain Input to any output port (Unused ports terminated in 50 Ω) -1 to +1 dB FRONT AND REAR PANELS ①... - Page 6 Rear panel connections for each level of RF and power distribution Certifications The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance...
- Page 7 Important Product Information LICENSING INFORMATION Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the ...
