Summary of Contents for Shure UA830

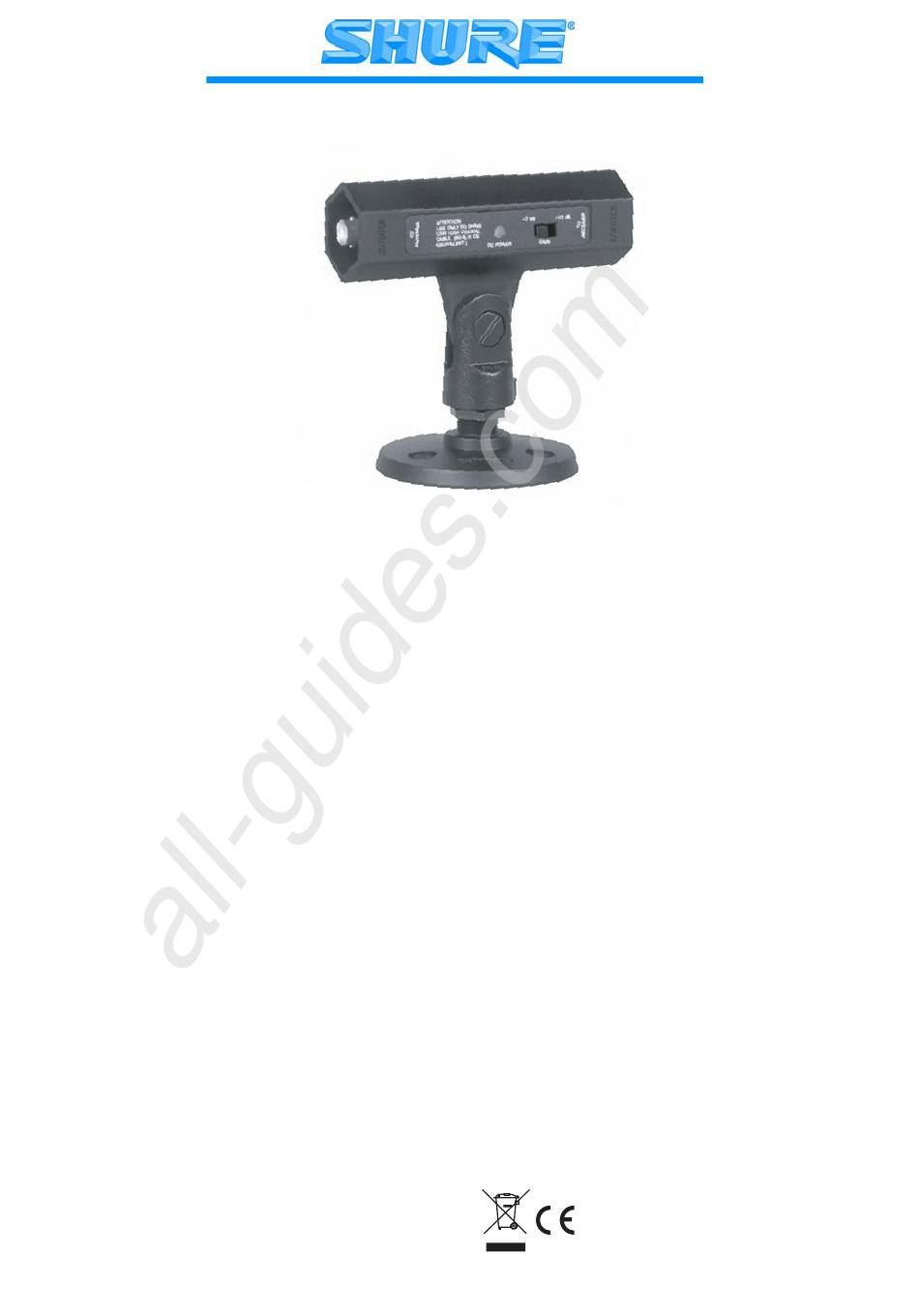

- Page 1 All manuals and user guides at all-guides.com SHURE MODEL UA830 UHF IN-LINE RF AMPLIFIER ©2005, Shure Incorporated Printed in U.S.A. 27D8643 (Rev. 8)
-
Page 2: Installation
Usually, the antennas should be as far apart as possible, cre- ating the widest RF field and ensuring signal reception. In a diversity system such as the Shure Model U4, as in the example in Figure 1, Shure recommends that the two antennas be positioned at 45° an- gles pointing away from each other (Figure 1). - Page 3 3. Using 50 W low-loss coaxial cable (purchased separately, Shure UA825 or UA850 or UA8100 recommended), connect the TO RECEIVER port of the UA830 to the Shure Model U4 or ULX wireless receiver or UA845, or UA844 Antenna Distribution System (see Figure 3 for U4 Receiver example).
- Page 4 • UA8100 Extension Cable (30.4 m [100 ft])-Set GAIN switch in 10 dB position. • If over 15.2 m (50 ft) is required, a maximum of two UA830's (Shure model U4 and UA845 only) may be chained together. See Figure 5. The Gain switches for each UA830 must be adjusted separately.
-
Page 5: Specifications
Service department at 1-800-516-2525. Outside the United States, please contact your authorized Shure Service Center. CERTIFICATION UA830: Eligible for CE Marking. Meets requirements of EMC Stan- dard EN 301 489 Parts 1 and 9. Meets the essential requirements of the European R&TTE Directive 99/5/EC. - Page 6 All manuals and user guides at all-guides.com...
- Page 7 United States, Canada, Latin America, Caribbean: 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446 Europe, Middle East, Africa: Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414 Asia, Pacific: Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055...
