Left Side

Power Supply
EX-9132C-2RS485 TCP/IP converter device is powered by a single 9VDC (inner
positive/outer negative) power supply and 500mA of current. A suitable power supply
adapter is part of the packaging. Connect the power line to the power jack at the left
side of EX-9132C-2RS485 TCP/IP converter device and put the adapter into the
socket. If the power is properly supplied, the "SYS" red color LED will be on..

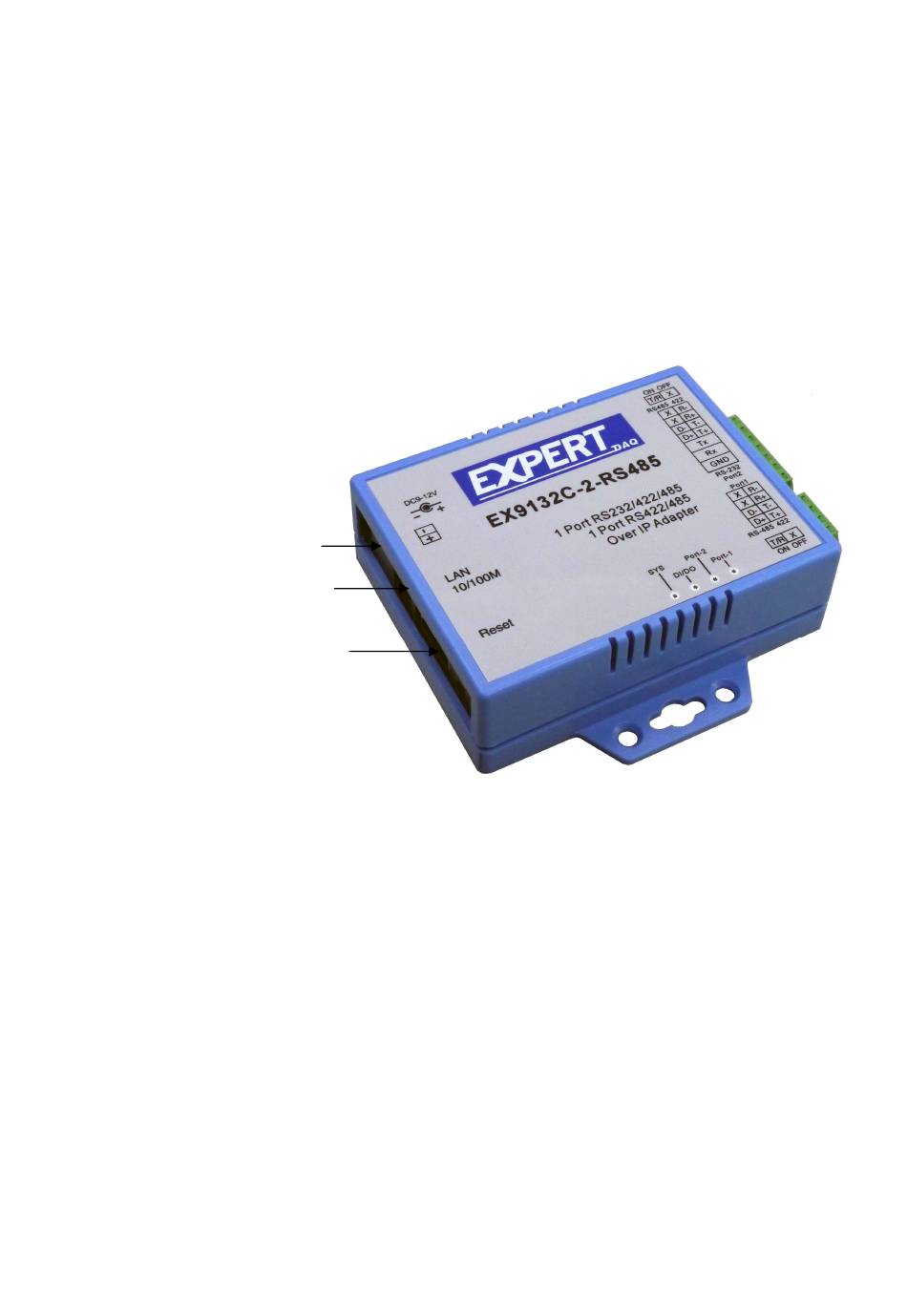

DC-In
Power Outlet
Ethernet LAN Port
Reset Button
Ethernet LAN Port
The connector for network is the usual RJ45. Simply connect it to your network
switch or Hub. When the connection is made, the LAN LED indicator will light up.
When data traffic occurs on the network, red PORT LED indicator will blink during
data transferring and receiving.
Reset Button
If by any chance, you forget the setup password, or have incorrect settings making
TCP/IP converter inoperable. First, turn on the power. Second, use any point tip to
push this button and hold it about 3 seconds All the parameters will be reset to the
factory default. But do not over 5 seconds , it will enter update mode
