Expert EX-9132C-2RS485 Operation Manual page 21

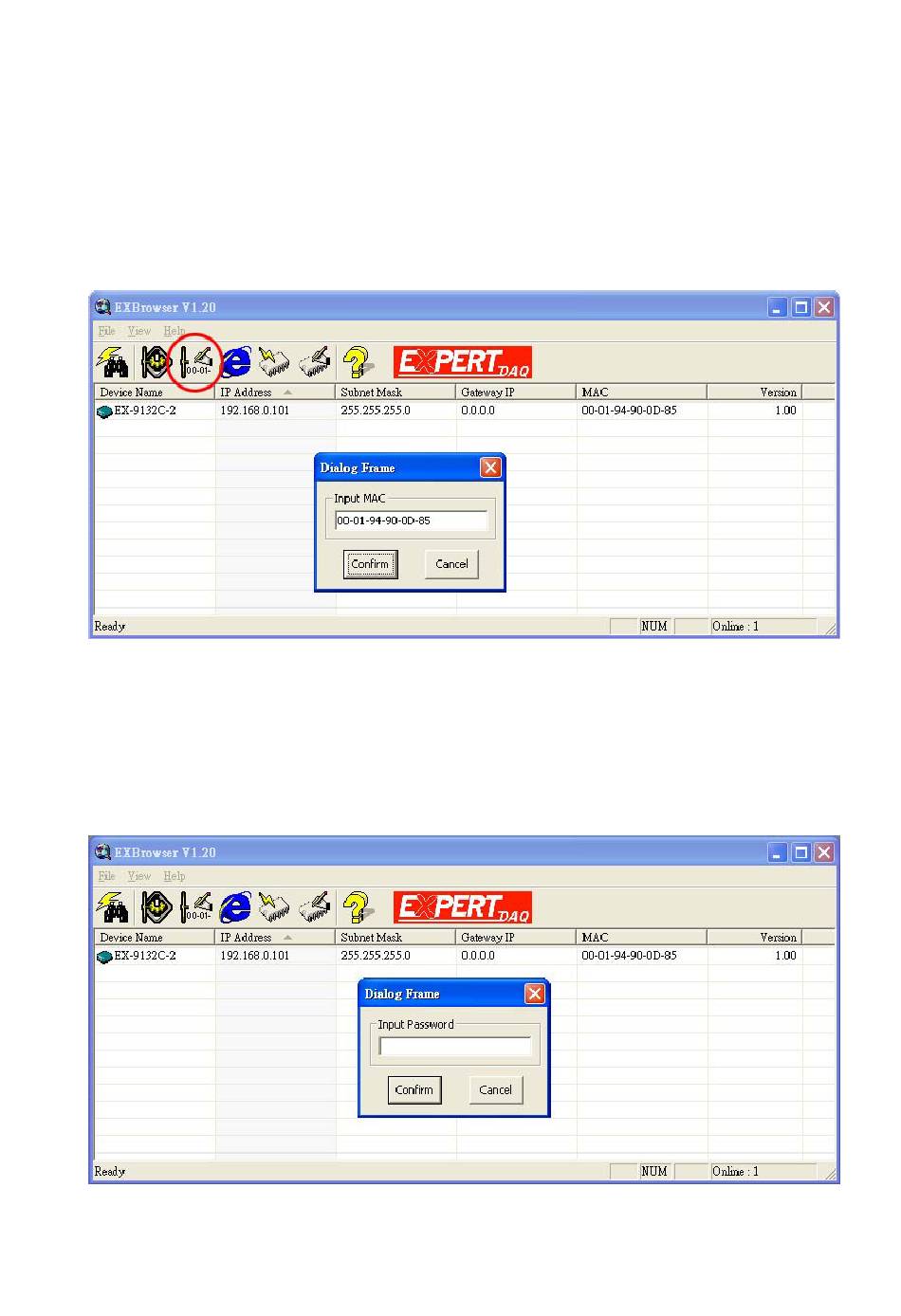

EXBrowser "Modify MAC"
□ □ Modify MAC -> Dialog Frame
□
To click the device on the existing devices list in the EXBrowser table and then the
function bar will be enabled. To press Third icon of "Modify MAC" on function
bar and a dialog frame table will be shown (see Figure 3.7).
□ □ Input Password -> Dialog Frame
□
After click "Confirm" button and then "Input Password" request will be pop-up on
screen (see Figure 3.8). Please simply press "Confirm" button and the new device's
MAC will be changed and save in table, if you changed it.
20
(Figure 3.7)
(Figure 3.8)
