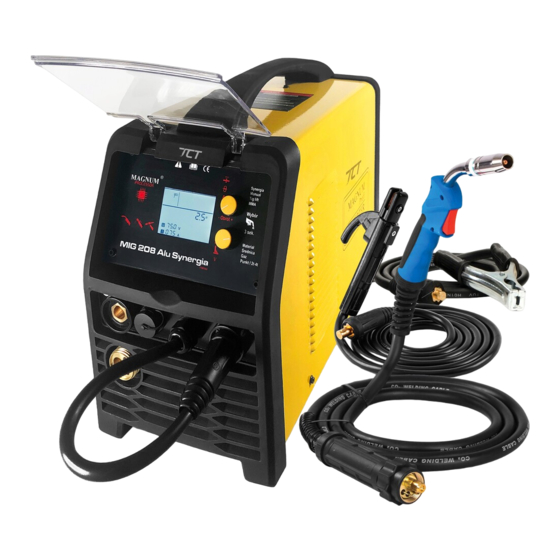

- Page 1 MAGNUM MIG 208 ALU SYNERGIC INSTRUCTIONS MANUAL WARNING! FOR SAFETY REASON PLEASE READ AND UNDERSTAND THE FOLLOWING INSTRUCTIONS BEFORE FIRST USE OF THE DEVICE.
-
Page 2: General Instructions
1. General instructions Read the operating instructions! The operating instructions provide an introduction to the safe use of the products. An incorrectly performed installation can result in material damage and injure persons as a result. For this reason, we do not accept any responsibility or liability for losses, damages or costs arising from incorrect installation, improper operation or incorrect usage and maintenance or any actions connected to this in any way. -
Page 3: Safety Instructions
2. Safety instructions DANGER! Electromagnetic fields! The power source may cause electrical or electromagnetic fields to be produced which could affect the correct functioning of electronic equipment such as IT or CNC devices, telecommunication lines, power cables, signal lines and pacemakers. •... - Page 4 WARNING! Smoke and gases! Smoke and gases can lead to breathing difficulties and poisoning. In addition, solvent vapour (chlorinated hydrocarbon) may be converted into poisonous phosgene due to the ultraviolet radiation of the arc! • Ensure that there is sufficient fresh air! •...
- Page 5 CAUTION! Installation site! The machine must not be operated in the open air and must only be set up and operated on a suitable, stable and level base! • The operator must ensure that the ground is non-slip and level, and provide sufficient lighting for the place of work.
- Page 6 3. Applications Magnum MIG 208 is intended for standard MIG/MAG welding but also MMA, TIG Lift and brazing. The device is made for metal arc welding of low-alloy, high-alloy, carbon steels, aluminium and its alloys, The manufacturer is not liable for damage caused by improper use of the device.
- Page 7 5.1 Choosing MIG/MAG manual welding process (MAN) In the MIG/MAG manual welding menu wire feed speed and welding voltage can be adjusted. Turning the upper knob changes value for wire feed and the lower knob changes voltage. Welding current will be displayed after arc is ignited.
- Page 8 5.2 Synergic MIG/MAG process (SYN) Synergic MIG welding gives possibility to choose between previously programmed synergic settings. In this mode the are different parameters displayed on the screen like workpiece material, wire diameter, shield gas type, ATC function (where applicable), material thickness, wire feed speed, weld thick graphic depiction, 4T icon (if 4T mode Is selected) 5.2.1...
- Page 9 6. Advanced settings Magnum MIG 208 Alu Synergy gives more additional features to be set in the manual (MAN) and a synergic (SYN) mode as well. To enter the menu both knobs must be pressed simultaneously for two seconds. Desired parameter can be adjusted by turning the lower knob. Pressing the knob confirms the selected value and proceeds to the next parameter.
- Page 10 8. Connecting power supply precautions WARNING! Before any operations carried out on the device pull the plug out of the power socket. 1. Make sure that the device is not connected to the electricity 2. Check if the ground wire has a clamp or screw clamp 3.
- Page 11 11. Troubleshooting Error list: Thermometer icon – Device is overheating. Stop work until welder cools down. ALL 001 – Too low/Too high supply voltage ALL 002 – Short circuit between torch and ground cables. Please locate the fault and remowe the possible reason.
