Summary of Contents for V-ZUG Card System 1

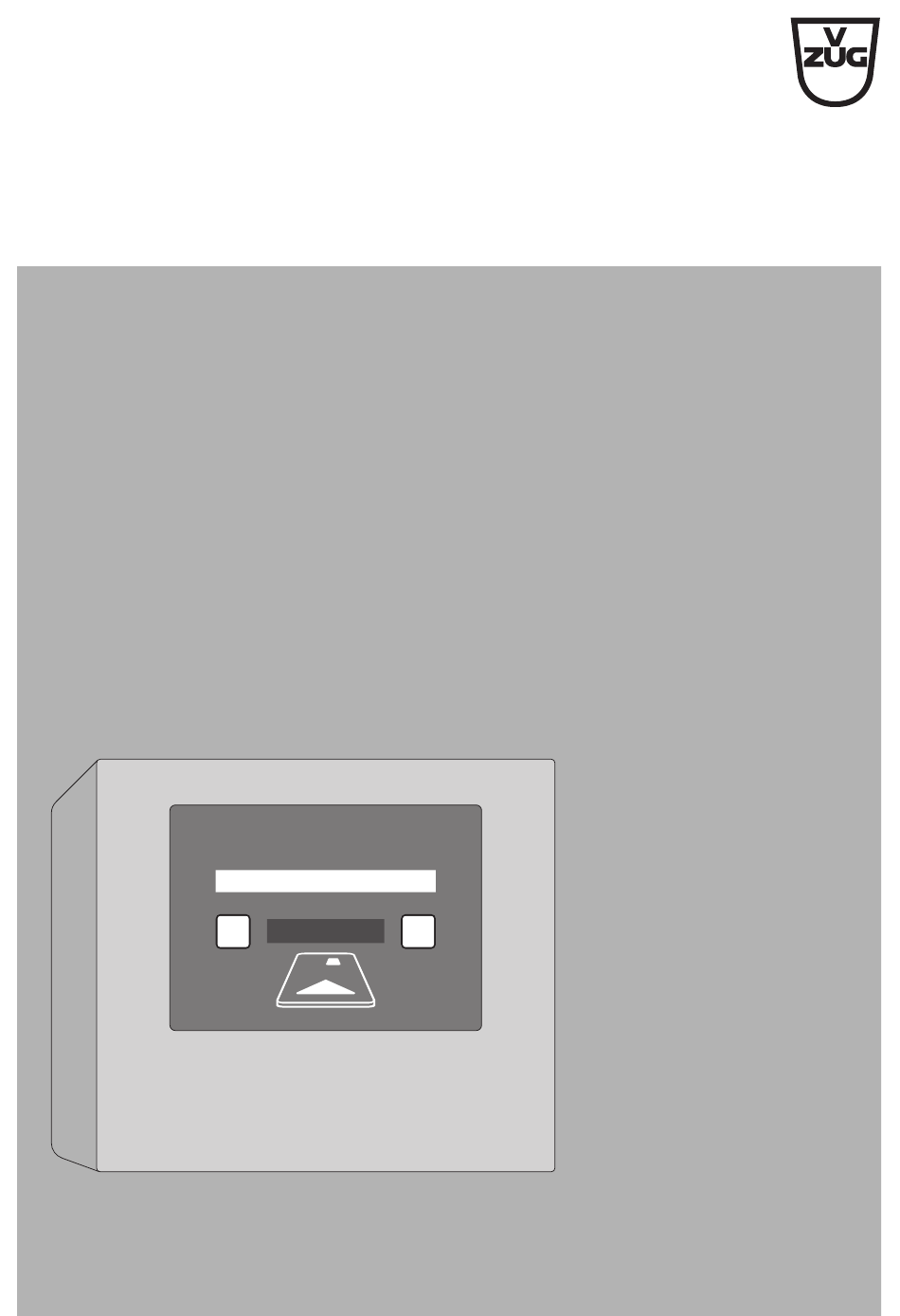

  • Page 1 V-ZUG Ltd Cashier system Card System 1 Card System 2 Operating instructions...
  • Page 2 The model number corresponds to the first 3 digits on the identification plate. These installation instructions apply to the models: Model Type Model no. Card System 1 CS 1 Card System 2 CS 2 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2010...

  • Page 3: Table Of Contents

    Contents Safety precautions Before using for the first time ..... . . Correct use ........Children in the home .

  • Page 4: Safety Precautions

    Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please there- fore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction...

  • Page 5: Correct Use

    … Safety precautions Correct use The appliance is for collecting the costs of operating a washing machine or tumble dryer. No liability is assumed for any damage caused by improper or incorrect use. Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, may only be carried out by the manufacturer, its Customer Services or similarly qualified persons.

  • Page 6: Your Appliance

    Your appliance Appliance description The cashier system controls the power supply to the appliance connected based on the amount charged from the user card. Measured and charged is the length of time that electricity is used. Balances remaining that are not credited back are stored in the appliance. Balances remaining can be credited back at any time.

  • Page 7: Appliance Construction

    … Your appliance Appliance construction Model 247 Plain text display Settings key «+» Card reader Settings key «–» Identification plate (underside of appliance)
  • Page 8 … Your appliance Model 248 Plain text display Selection key for appliance 1 Card reader Selection key for appliance 2 Identification plate (underside of appliance)

  • Page 9: User Card

    … Your appliance User card The user card stores individual credit and can be loaded as often as required. It activates the power supply to the washing machine and tumble dryer. Card System Card Nr. Name Nome Objekt Special cards The cards described below are for use by those with responsibility for the appliance (property manager, owner, caretaker).
  • Page 10 … Your appliance Totaliser card The totaliser card has 2 functions: reading the totaliser Card System setting the totaliser to zero. Objekt Programming card Customer- and appliance-specific parameters can be automatically transferred using the programming card. Card System Objekt The programming card can be ordered from our Customer Services for a charge.

  • Page 11: Using The Cards

    … Your appliance Cleaning card Using the cleaning card extends the life of the card reader and minimizes malfunctions. The cleaning card can be ordered from our Customer Services for a charge. Using the cards The user and special cards are basically used in the same way. Inserting a card Insert the card into the card reader until it clicks into place.

  • Page 12: Using The User Card

    … Your appliance Using the user card If the balance remaining is not credited back, it is saved and credited the next time that the same user card is debited. Use with model 247 Insert the user card into the card reader. –...

  • Page 13: Using The Load Card

    … Your appliance Using the load card Loading Insert the load card into the card reader. – Load appears in the plain text display. – After about 3 seconds appears in the plain Unlock card text display. Unlock the load card from the card reader. –...

  • Page 14: Using The Totaliser Card

    … Your appliance Settings The procedure described below is explained on the basis of model 248. Hold the key depressed. Insert the load card into the card reader. – appears in the plain text display. Setting Release the key. – appears in the plain text display.

  • Page 15: Calculation

    Calculation The charges to be defined for the appliance are based on the operating costs of the washing machine or tumble dryer connected. The operating costs comprise the costs of the electricity and water consumed as well as of any service agreement. Example calculation for a washing machine with a 6 kg load capacity The values indicated below are average values.

  • Page 16: Individual Calculation

    … Calculation Individual calculation You will need the following details: ....kWh From the operating instructions Electricity consumption* ....m³ From the operating instructions Water consumption* (1m³ = 1000 litres) Programme duration* ..h ..From the operating instructions Electricity tariff per kWh (incl. any peak and CHF .....

  • Page 17: Settings

    Settings The different parameters are explained below. The factory setting is intended for the operation of a washing machine in the case of model 247 and a wash- ing machine and a tumble dryer in the case of model 248. In order to change this, a programming card with the corresponding parameter must be requested from Customer Services.
  • Page 18 … Settings Parameter Unit Setting range Your setting with factory setting 0 to 19999 P–10 secs. 10 to 3600 P–11 secs. 10 to 3600 P–12 0 to 1000 P–13 0 to 1000 P–14 secs. 1 to 10 P–15 secs. 1 to 10 P–16 D/F/I/R/E P–17...

  • Page 19: Key To Parameters

    … Settings Key to parameters Parameter Function Description with factory setting Access code for the appliance. Can vary from Washroom washroom to washroom. The access code is P–01 1050 transferred to the user card the first time that it is loaded/inserted.
  • Page 20 … Settings Parameter Function Description with factory setting Number of Shows total number of times cards were loaded cards P–10 (resettable) loaded Depending on the washing machine or tumble dryer connected, there are pauses during a Shut-off programme sequence (gaps in the power being delay time P–11 drawn).

  • Page 21: Care And Maintenance

    Care and maintenance Cleaning the exterior Do not use abrasive or caustic cleaning agents or stainless steel cleaner. Do not use scouring pads, wire wool, etc. as such products will damage the surface. Remove any soiling or traces of cleaning agent immediately. Clean the surface with a soft cloth dampened with water and a little wash- ing-up liquid –...

  • Page 22: Technical Data

    Technical data Dimensions Model 247 Model 248 Width: 25 cm 25 cm Height: 22.5 cm 22.5 cm Depth: 10.5 cm 10.5 cm Weight: 3.1 kg 3.2 kg Electrical connection Model 247 Model 248 Switching capacity: 400 V 3N~ 2 × 400 V 3N~ max.

  • Page 23: Spare Parts

    Spare parts Card System User card Card Nr. Objekt Card System Load card Objekt Card System Totaliser card Objekt Card System Programming card Objekt Cleaning card...

  • Page 24: Disposal

    Disposal Packaging All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety Disable the appliance to prevent accidents caused by improper use,...

  • Page 25: Index

    Index Accessories Maintenance ......... 21 Ordering ........27 Model no......... 2 Amount loaded ......14 Appliance construction ....7 Appliance description ....6 Orders..........27 Calculation........15 Packaging ........24 Cards Parameters ........17 Unlocking ........11 Key..........19 Care ..........
  • Page 26 … Index Tariff ..........14 User card ......... 9 Technical data ......22 Using ......... 12 Totaliser card........ 10 Using for the first time....4 Using ......... 14 Type..........2 Validity ..........2...

  • Page 27: Repair Service

    – The identification plate is on the underside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd Service Centre using freephone 0800 850 850 and stand in close proximity to the appliance.

  • Page 28: Quick Instructions

    Quick instructions Please first read the safety precautions in the operating instructions! V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch Service Centre: Tel. 0800 850 850 J247.13-4...
