Operating instructions
Noblesse | Noblesse eco
Refrigerator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Noblesse and is the answer not in the manual?

Questions and answers

Summary of Contents for V-ZUG Noblesse

  • Page 1 Operating instructions Noblesse | Noblesse eco Refrigerator...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identi- fication plate. These operating instructions apply to: Model Produkct family Size system Noblesse 51046 SMS 55/Euro 60 Noblesse eco 51068 SMS 55/Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2018...
  • Page 3: Table Of Contents

    Contents Safety precautions  4 Disposal  23 Symbols used............ 4 Index  24 General safety precautions........ 4 Service & Support  27 Instructions for use.......... 4 Appliance description  7 Structure .............. 7 Operating and display elements...... 8 Using for the first time  8 Operation  9 Special functions...
  • Page 4: Safety Precautions

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...
  • Page 5 1 Safety precautions ▪ When installed, it is important to ensure ▪ The appliance corresponds to recog- that the air inlets and vent openings are nized technology standards and the rel- not covered or blocked. evant safety regulations. Proper use of ▪...
  • Page 6 1 Safety precautions Caution: Risk to life! Packaging materials, e.g. plastic film and polystyrene, can be dangerous for chil- dren. Danger of suffocation! Keep pack- aging material away from children. How to avoid damaging the appliance ▪ Only use water or a mild alkaline solu- tion when cleaning the appliance.
  • Page 7: Appliance Description

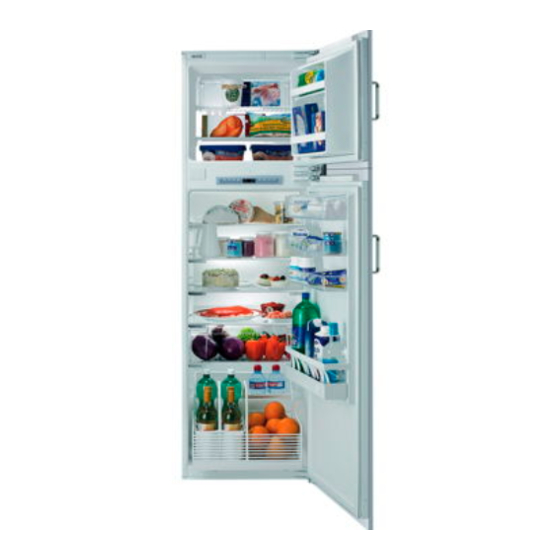

    Appliance description Structure If necessary, the direction in which the door opens can be changed. Our Customer Services can make the necessary adjustments to the appliance. Freezer compartment door Door tray with cover Egg tray Door tray with bottle holder (bottles up to max.
  • Page 8: Operating And Display Elements

    3 Using for the first time Operating and display elements Display Fast cooling Cooling compartment temperature display Display Freezer compartment temperature display Fast freezing Appliance switched off Buttons ON/OFF Temperature setting Preselection Special functions Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸...
  • Page 9: Operation

    4 Operation Operation Switching the appliance on ▸ Plug in the appliance at the mains. – «off» is shown on the right-hand side of the display for 30 seconds. – «off» is shown in the digital display for 30 seconds when the appliance door is opened or a button is pressed.
  • Page 10: Special Functions

    5 Special functions – «off» is shown in the digital display for 30 seconds when the appliance door is opened or a button is pressed. If the appliance is being taken out of operation, e.g. for repair work or disposal: ▸...
  • Page 11: Fast Freezing

    5 Special functions Immediately before putting food in the cooling compartment, switch on to pre- vent food that is already in the refrigerator from warming up. Fast freezing The fast freezing function allows large quantities of food, e.g. after a shopping trip, to be frozen more quickly.
  • Page 12: Glass Shelves And Door Trays

    6 Glass shelves and door trays Glass shelves and door trays The height of the glass shelves in the cooling compartment and the door trays on the in- side of the cooling compartment door can be adjusted. The glass half-shelf enables you to store taller vessels. Position the glass half-shelf at the top to ensure that the air circulates well.
  • Page 13: Bottle Drawer

    7 Bottle drawer Bottle drawer The temperature in the bottle drawer is 4–5 °C higher than in the rest of the cooling compartment. Beverages and temperature-sensitive vegetables, for example, can be stored in the bottle drawer at 10 °C. Removing the bottle drawer ▸...
  • Page 14: Tips And Tricks

    8 Tips and tricks Tips and tricks General information on using the appliance ▪ When closing the appliance door make sure that it forms a seal all the way round. This is supported by the self-closing hinges, as the appliance doors shut themselves if the opening angle is between 20–30°.
  • Page 15: Notes On Freezing

    8 Tips and tricks Example arrangement (from top to bottom) In the freezer compartment: For freezing and storing food and making ice On the glass shelves: ▪ Cakes and bakes ▪ Cooked foods ▪ Dairy products ▪ Meats, sausages and fish In the vegetable drawer: Vegetables, fruit and salad In the door trays:...
  • Page 16: Notes On Saving Energy

    9 Care and maintenance Notes on saving energy ▪ Leave the drawers, glass shelves and door trays in the positions they were in upon delivery, if possible. This ensures the best possible temperature distribution. ▪ Only open the appliance doors when necessary and keep them open for as short a time as possible.
  • Page 17 9 Care and maintenance When defrosting is complete, the temperature is lowered back down to the set target temperature. Keep the collection channel and the drain pipe clean so that the water can flow freely. ▸ Clean the defrost drainage channel with the green cleaner that is in it with an up- and-down and circular motion.
  • Page 18: Changing The Led Lighting

    9 Care and maintenance Changing the LED lighting Only use original LED lighting from the manufacturer. ▸ Disconnect the power supply: by pulling out the mains plug or switching off the fuse. ▸ Remove the LED lighting. ▸ Disconnect the plug and socket connec- tion 1 for the LED lighting.
  • Page 19: Noises And Alarms

    10 Noises and alarms Noises and alarms 10.1 Operating noise The compressor and the cooling circuit make various noises while the appliance is run- ning. Although the appliance is fitted with a quiet compressor and a noise-optimized cooling circuit, some noises cannot be completely avoided. The volume of these noises depends on the size of the appliance, how it is installed and the cooling requirement (e.g.
  • Page 20: Trouble-Shooting

    11 Trouble-shooting Temperature alarm An acoustic signal sounds if the cooling compartment temperature rises 10 °C above the selected temperature value or if the freezer compartment temperature is more than -9 °C. Cancelling alarm ▸ Touch any button. ▸ To resolve the problem, see Trouble-shooting. Trouble-shooting This section lists faults that can be solved simply by following the instructions given.
  • Page 21: Technical Data

    12 Technical data Malfunction Possible cause Solution A temperature dis- ▪ The cooling compartment ▸ Do not place warm foods right play flashes. temperature is 10 °C next to the temperature sensor. higher than the set temper- ▸ If there is no warm food in the ature or the freezer com- appliance: call Customer Ser- partment temperature is...
  • Page 22: Product Fiche

    12 Technical data 12.3 Product fiche In accordance with EU Regulation No. 1060/2010 Brand – V-ZUG Ltd Model name – Noblesse Noblesse eco Category – (refrigerator/ (refrigerator/ freezer) freezer) Energy Efficiency Class – A+++ Annual Energy Consumption (AEC) kWh per...
  • Page 23: 13 Disposal

    13 Disposal Disposal 13.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 13.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 24: Index

    Index Alarm ..............19 Noises ..............19 Appliance disposal .......... 23 Notes ..............25 Bottle drawer ............ 13 ON/OFF ..............8 Button lock ............9 Operating and display elements...... 8 Operating the appliance ........9 Care and maintenance ........16 Cleaning.............
  • Page 25 Notes...
  • Page 27: Service & Support

    Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 28 1010864-R03 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
