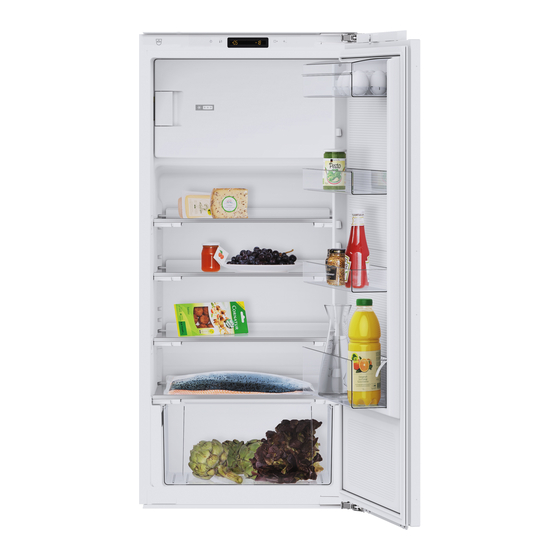

V-ZUG Perfect 60i Operating Instructions Manual
Hide thumbs
Also See for Perfect 60i:
- Operation instructions manual (21 pages) ,
- Service manual (55 pages) ,
- Operating instructions manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for V-ZUG Perfect 60i
Summary of Contents for V-ZUG Perfect 60i
- Page 1 Operating instructions Perfect 60i | Perfect 60i eco | Optima 2 Refrigerator/freezer...
- Page 2 Model designation Model number Size system Perfect 60i 51083 Euro 60 Perfect 60i eco 51084 Euro 60 Optima 2 51085 SMS 55 / Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Service & Support 23 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 5 Instructions for use.......... 5 Using for the first time 8 Appliance description 8 Structure .............. 8 Operating and display elements...... -
Page 4: Safety Precautions
Safety precautions Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-... -
Page 5: Appliance-Specific Safety Precautions
1 Safety precautions ▪ Refer to the identification plate for in- turer or its Customer Services formation on the required mains or a similarly qualified person voltage, current type and fuse protec- in order to avoid hazard. tion. ▪ All plastering, plasterboarding, wall pa- Appliance-specific safety pering or painting work is to be carried precautions... - Page 6 1 Safety precautions ▪ WARNING: Do not locate multiple port- the appliance and fittings, as well as af- able socket-outlets or portable power fect the functioning of the appliance. If supplies at the rear of the appliance. the appliance is not working properly or ▪...
- Page 7 1 Safety precautions ▪ Avoid prolonged skin contact with frozen food. Never consume frozen food or ice cubes that are straight out of the freezer compartment or too cold. Risk of burns from freezing! ▪ Do not remove the evaporation tray on the compressor.
-
Page 8: Using For The First Time
Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective film from the in- terior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa- ter and washing-up liquid) and dry thoroughly. -
Page 9: Operating And Display Elements
4 Operation Door tray with cover Defrost drainage channel Door trays Temperature sensor Door tray with bottle holder Shelf (bottles up to max. 1.5 litres) Appliance door LED light Vegetable drawer Half-shelf Shelf over vegetable drawer (do not Freezer compartment use any other shelf in this position) Operating and display elements Identification plate with serial number... -
Page 10: Special Functions
5 Special functions Setting the temperature in the cooling compartment The temperature can be set between °C and °C. When the refrigerator compartment temperature is 5 °C, the temperature of the freezer zone is about -18 °C. ▸ Depress the button for 3 seconds. –... -
Page 11: Fast Cooling
6 Glass shelves and door trays Switching the special function off (early) ▸ Depress the button for 3 seconds. ▸ Press the button repeatedly until the desired special function is reached. ▸ Press the button. – The special function is deactivated. Fast cooling The fast cooling function allows large quantities of food, e.g. -
Page 12: Positioning Glass Shelves
7 Tips and tricks Positioning glass shelves ▸ On both sides, push the slide bar in- wards and downwards. – The slide bar engages and stays in this position. ▸ Pull the glass shelf out of the rear guide and insert into desired position. ▸... -
Page 13: Storing Food
7 Tips and tricks Storing food The example arrangement (from top to bottom) shows the zones and areas in the appli- ance that are generally suitable for certain food and food items. In the freezer compartment: Freezing and storing food and making ice On the glass shelves: ▪... -
Page 14: Notes On Saving Energy
8 Care and maintenance ▪ The following products are not suitable for freezing: radishes, lettuces, cucumbers, raw unshelled eggs, boiled eggs, dairy products such as yogurt, cream cheese, curd cheese and mayonnaise. ▪ Do not defrost frozen food at room temperature or on the heating. Food defrosts slowly in the fridge. -
Page 15: Defrosting
8 Care and maintenance Defrosting Defrosting the cooling compartment The cooling compartment defrosts once a day automatically. During defrosting, the temperature inside the cooling compartment increases so that the ice on the rear wall melts. The water created when the ice melts collects in the defrost channel, flows through the drain hole and evaporates outside the appliance in the evaporation tray. -
Page 16: Changing The Led Lighting
8 Care and maintenance Defrosting the freezer compartment A thick layer of ice will prevent the cold from being transferred to the frozen food. There- fore, the freezer compartment should be defrosted if a lot of ice has formed. When de- frosting, keep frozen food as cold and insulated as possible, e.g. -
Page 17: Noises And Alarms
9 Noises and alarms Noises and alarms Operating noise The appliance can make various noises during operation. Although the appliance is noise-optimized, some noise cannot be eliminated completely. This noise depends on the size of the appliance, how it is installed and the cooling requirements (e.g. fast cool- ing), the ambient temperature and the installation conditions. -
Page 18: Trouble-Shooting
10 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please contact Customer Services. Before contacting Cus- tomer Services: ▸ please note down the serial number (SN), which is shown on the identification plate, as well as ▸... - Page 19 10 Trouble-shooting Malfunction Possible cause Solution Temperature display ▪ The refrigerator compart- ▸ Do not place warm foods right is flashing. ment temperature is 10 °C next to the temperature sensor. higher than the set temper- ▸ If there is no warm food in the ature or the freezer com- appliance: call Customer Ser- partment temperature is...
-
Page 20: Technical Data
11 Technical data Technical data Product data ▸ See the identification plate, energy label and www.vzug.com. External dimensions ▸ See installation instructions Electrical connection ▸ See identification plate 11.1 Temperature measurement The refrigerator and freezer compartment temperature are measured in accordance with an internationally recognized standard. -
Page 21: Index
Index Alarm ..............17 Preselection ..........9, 24 Appliance disposal .......... 20 Product data ............. 20 Appliance installation ......... 5 Queries .............. 23 Care and maintenance ........14 Cleaning............. 14 Construction............8 Sabbath mode..........11 Safety precautions General ............. 4 Defrost drainage channel....... 15 Safety warnings Defrosting ............ - Page 22 Notes...
- Page 23 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
- Page 24 Display elements Fast cooling Sabbath mode Value and/or status display Appliance switched off 1051080-R04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
