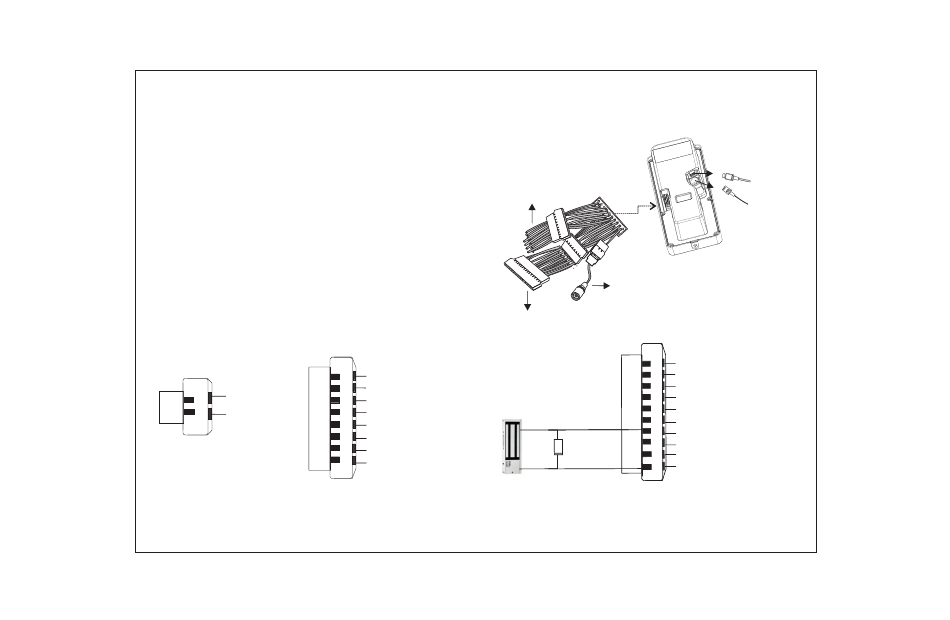

Connecting the Cables

For Concealed wiring; first draw out sufficient length of the
Ÿ
cables from the hole you have cut on the mounting surface.
Make the electrical connections of Power, External Reader
Ÿ
and EM Lock by connecting supplied cable assembly to the
20 pin connector on the back side of COSEC ARGO.
Connect the Ethernet Cable to the LAN port.
Ÿ
Connect the micro USB port to Printer or Broadband dongle
Ÿ
using micro USB cable extender as required.
Power
1
GND- Black
CN1
2
+12VDC IN- Red
CN2
23
EM Lock Cable
External Reader
1
DATA 0- Green
2
DATA 1- White
3 BEEPER- Yellow
GREEN LED- Orange
4
5 GND- Black
6 RS 232 RX- Pink
7 +12V RDR- Red
8
RS 232 TX- Grey
EM Lock
Power
Cable
External Reader Cable
(8 Pin to 15 Pin connector)
1
2
3
4
5
CN3
6
7
8
Diode
9
10
F
Micro USB
connector cable
G
Ethernet Cable
GND- Black
GND- Black
GND LOCK- Black
EXIT SWITCH -White
+12V LOCK- Red
GND- Black
LOCK RLY NO -Yellow
DOOR STATUS- White
LOCK RLY NC-Dark Blue
LOCK RLY COM -Light Brown
