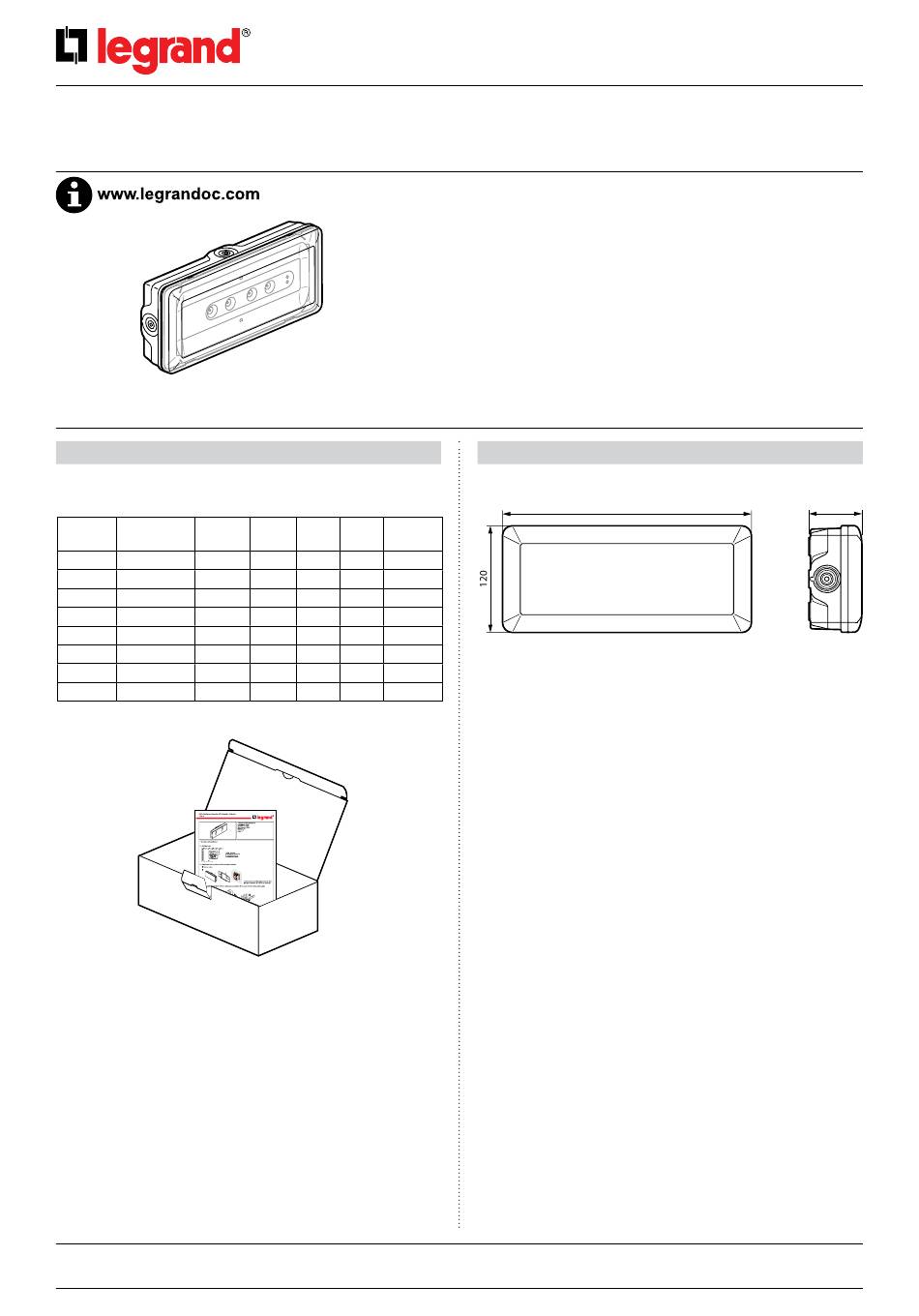

LEGRAND B65 LED Technical Data Manual

B65 LED
Emergency lighting units with LEDs
Standard: 6 614 31/33/34/40
Addressable LVS: 6 624 31/33/34/40

1. DESCRIPTION

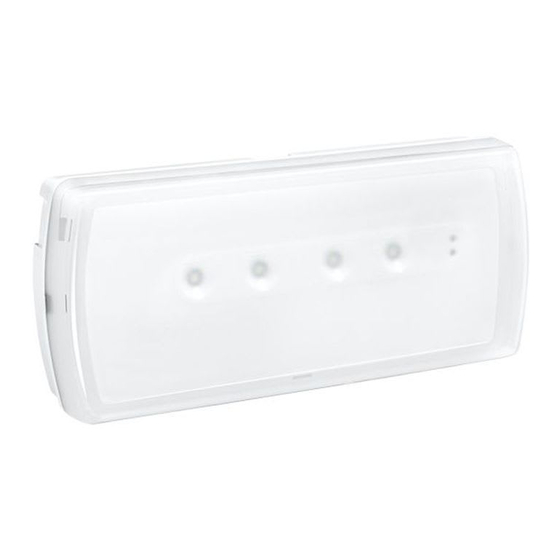

IP 65 - IK 07 emergency luminaires with LEDs
Class II: 0
Cat. No. Flux/ STD/
standby LVS
6 614 31 100 Im/1 hr STD
6 614 33 200 Im/1 hr STD
6 614 34 350 Im/1 hr STD
6 614 40 100 Im/3 hrs STD
6 624 31 100 Im/1 hr LVS
6 624 33 200 Im/1 hr LVS
6 624 34 350 Im/1 hr LVS
6 624 40 100 Im/3 hrs LVS
• Delivery
Technical data sheet: S000083090EN-2
Mode M NM Type of
cons. cons. battery
M/NM 4 2 NiCd
M/NM 4 2 NiCd
M/NM 4 2 NiCd
M/NM 3 0.8 NiMH
M/NM 4 2 NiCd
M/NM 4.2 2 NiCd
M/NM 3 0.8 NiMH
M/NM 3 0.8 NiMH
Updated: 15/01/2015
CONTENTS
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
5. Addressing an LVS luminaire with the configuration tool . . . . . . 6
6. Photometric data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8. Compliance and approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
9. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1. DESCRIPTION (CONTINUED)
• Dimensions
280
Weight of product in packaging: 700 grammes
Volume of product in packaging: 2.3 dm
• Technical characteristics
230 V± - 50/60 Hz power supply
Fitted with large capacity automatic connection terminals (2 x 2.5 mm
Class II: 0
Operating temperature: 0°C to +40°C.
Remote control for setting to rest state during intentional mains power
breaks.
Remote control input terminals protected against errors of connection.
Terminal used to switch the maintained part of the light on and off in M/
NM units.
Complies with standards: EN 60598-2-22
Awarded the ENEC EN 60 598 2-22 and AENOR quality mark
Product for surface mounting on walls or ceilings.
Cat. No(s): 6 614 31/33/34/40
6 624 31/33/34/40
Page
59.7
3
)
2
Created: 17/06/2014
1/9
