How to Operate the Operator's Transmitter
1. Open the battery door.
2. Use a 9 Volt alkaline battery and insert it according to the diagram inside the battery
compartment.
3. Place the headset on your head and adjust the microphone to approximately 1 inch from
your mouth. If needed, adjust the headset frame so that the earphone and the frame fit
comfortably and the earphone is against your ear.
4. Plug the mic plug from the headset into the top of the transmitter.
5. Move slide switches to the "ON" position.
6. On the UB4 there is a Volume input level adjust on the unit.
Frequency channel- Located on the back of the transmitter.
Function of the LED
When turning on the power switch, with a fresh alkaline 9-Volt, the battery light will blink on
momentarily and go out. This indicates that it is powering up and that the battery is good.
Because the light is a low battery indicator, when the light is on constant, this indicates the
battery is too low-below 7 Volts. Replace with a new alkaline battery.
Tip: The operator's voice units both have metal clips that contact the posts of the
9-volt battery. These must be bent out from time to time to keep this contact good.

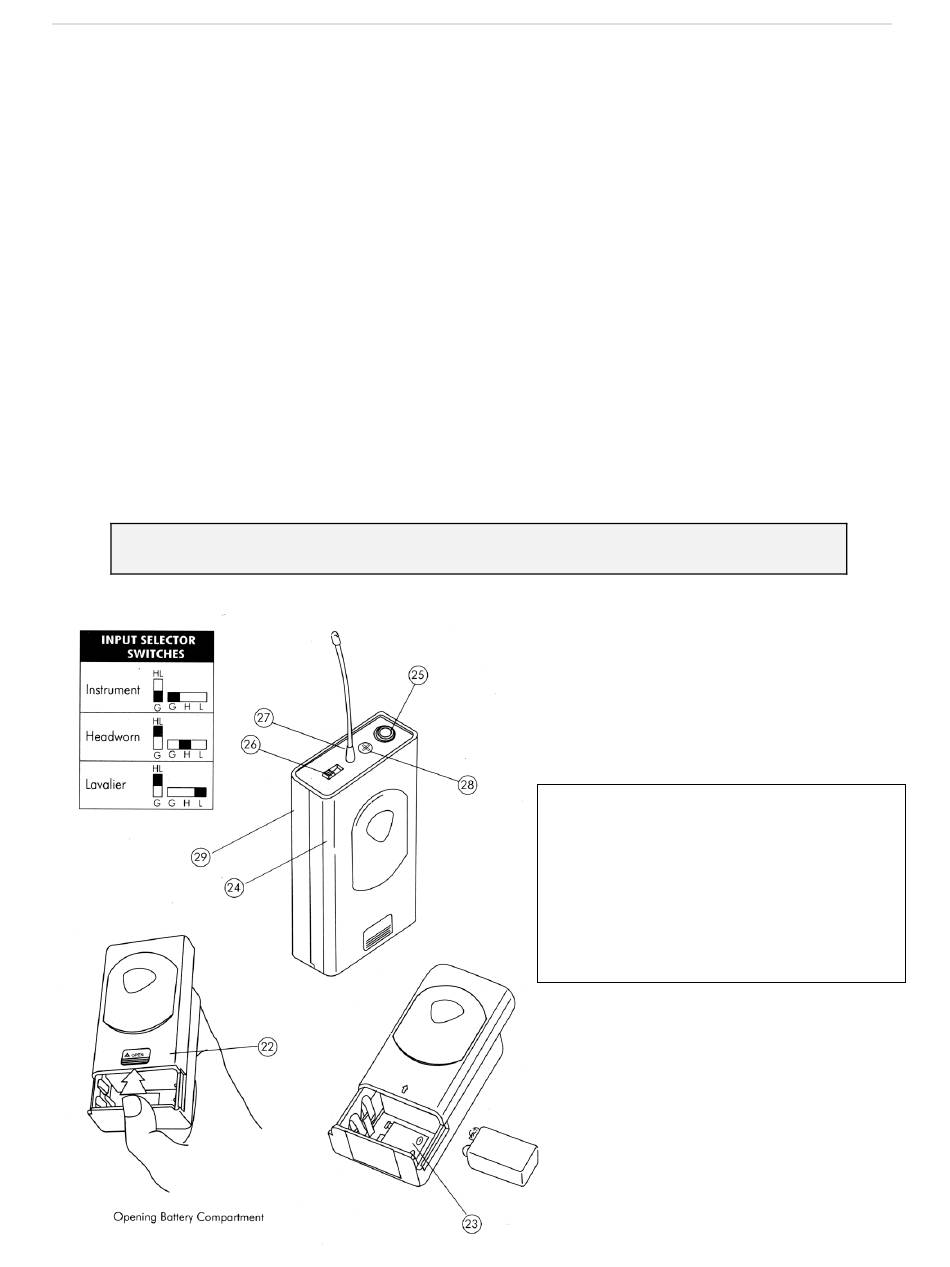

22. Sliding door
23. 9 V Alkaline Battery
24. Front Cover
25. 3.5 mm jack
26. Off/Standby/On switch
27. Antenna
28. Volume- Input Level Control
29. Belt Clip
Frequency is listed on the back.
