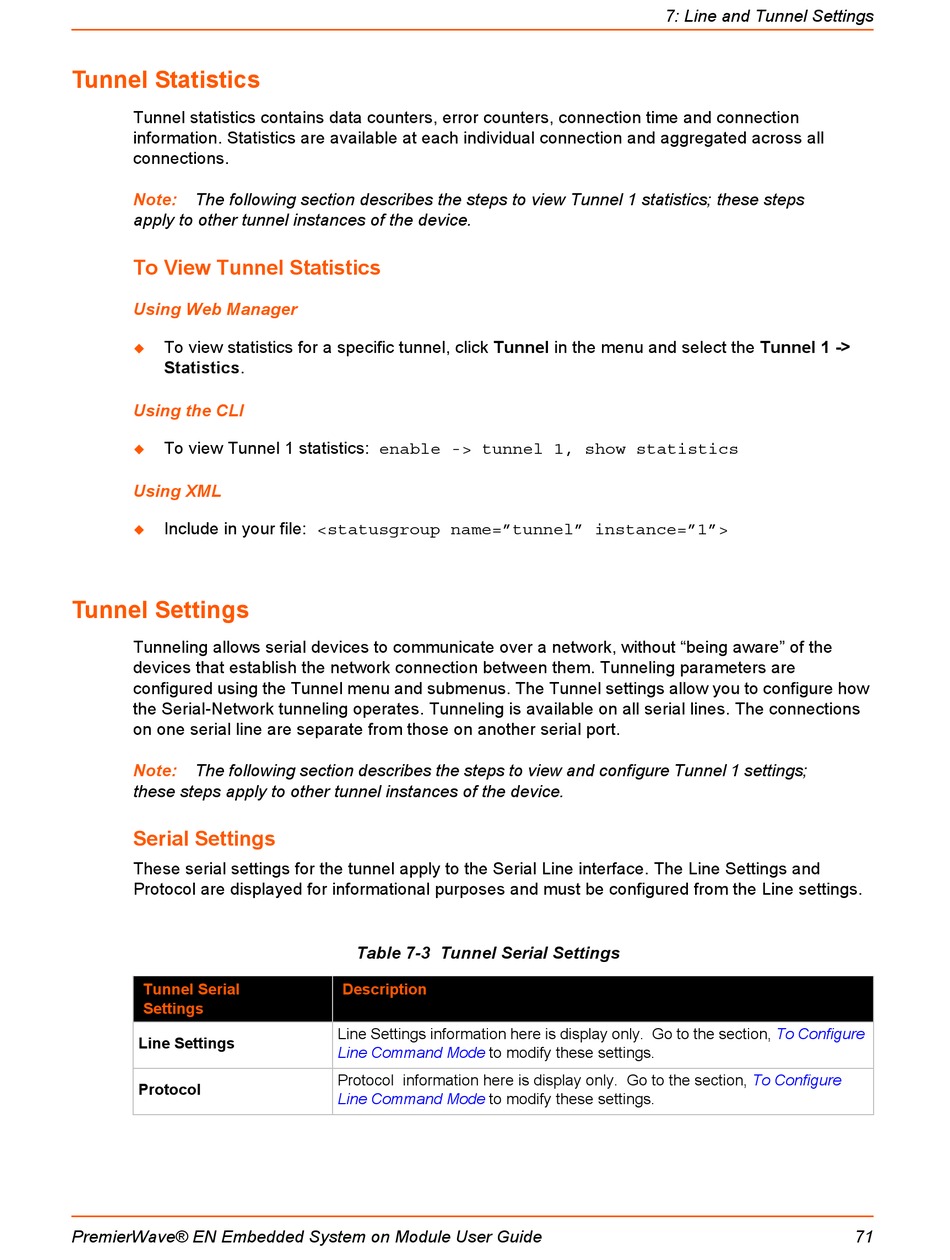

Tunnel Statistics

Tunnel statistics contains data counters, error counters, connection time and connection
information. Statistics are available at each individual connection and aggregated across all
connections.
Note: The following section describes the steps to view Tunnel 1 statistics; these steps
apply to other tunnel instances of the device.

To View Tunnel Statistics

Using Web Manager
To view statistics for a specific tunnel, click Tunnel in the menu and select the Tunnel 1 ->

Statistics.
Using the CLI
To view Tunnel 1 statistics: enable -> tunnel 1, show statistics

Using XML
Include in your file: <statusgroup name="tunnel" instance="1">


Tunnel Settings

Tunneling allows serial devices to communicate over a network, without "being aware" of the
devices that establish the network connection between them. Tunneling parameters are
configured using the Tunnel menu and submenus. The Tunnel settings allow you to configure how
the Serial-Network tunneling operates. Tunneling is available on all serial lines. The connections
on one serial line are separate from those on another serial port.
Note: The following section describes the steps to view and configure Tunnel 1 settings;
these steps apply to other tunnel instances of the device.

Serial Settings

These serial settings for the tunnel apply to the Serial Line interface. The Line Settings and
Protocol are displayed for informational purposes and must be configured from the Line settings.
Tunnel Serial
Settings
Line Settings
Protocol
PremierWave® EN Embedded System on Module User Guide

Table 7-3 Tunnel Serial Settings

Description
Line Settings information here is display only. Go to the section,
Line Command Mode to modify these settings.
Protocol information here is display only. Go to the section,
Line Command Mode to modify these settings.
7: Line and Tunnel Settings
To Configure
To Configure
