Operating Guide - INVISIBLE FENCE Outdoor Shields Avoidance System Owner's Manual

Important: Make sure your pet is not wearing the Computer Collar
Outdoor Shields ® transmitter.
1. Power Up the Outdoor Shields Transmitter
• Locate the battery door on the bottom of the Outdoor Shields transmitter.
Loosen the 4 Phillips head screws. The screws will stay in the battery lid.
Install 4 alkaline D-batteries (Not Included) and replace the battery door.
• Turn the Outdoor Shields transmitter upright and open the lid exposing
the LCD display and range buttons.
• Press the up (+) button once to turn ON the Outdoor Shields transmitter.
2. Adjust signal fi eld range
• Determine the desired location and the signal fi eld range required
(1 ft /30 cm minimum radius up to 10 ft /3.0 m maximum radius).
• With the unit on, press the RANGE UP (+) or the RANGE DOWN
(-) buttons to increase or decrease the signal fi eld range. Each
segment of displayed bar represents approximately 1 ft /30 cm radius
of range.
• Once the range is set, place the Outdoor Shields
desired area.
3. Verify the signal fi eld range
• Make sure the Outdoor Shields
• Holding the Computer Collar unit, start outside the range and walk slowly towards the Outdoor Shields
Do not touch the correction posts at this time.
• The Computer Collar unit will beep as it approaches the outer range of the signal fi eld width set in step 2.
The beeping will be followed by a correction.
• If the Computer Collar unit fails to beep, see the troubleshooting chart found on page 6.
• Adjust range and/or relocate the Outdoor Shields
4. Selecting either 7K or 10K on the Outdoor Shields Transmitter
• Open the lid exposing the LCD display and buttons.
• Make sure the range is all the way down.
• Press the (-) down button and hold it for 5 seconds until a black segment appears in the display.
• Once the Black segment appears you have 5 seconds to change between 7K or 10K.
• Pressing only the (+) button to change between 7K or 10K.
• When the black segment is displayed by the (-) button = 7K and by the (+) button = 10K.
• Once you have selected either 7K or 10K the display will return blank after 5 seconds.
• You are now ready to adjust the range to the desired area.
5. Checking for Low Battery
• Open the lid exposing the LCD display and buttons.
• If the LCD display is fl ashing with all six black segments showing it is time to replace the batteries.
• After replacing the batteries you will need to check and see if the range for the signal fi eld is set to the desired area.
6. Fitting the Computer Collar unit on your pet
• Move your pet away from the shielded area.
• Place the Computer Collar unit on your pet.
• To work properly, both correction posts on the Computer Collar unit must touch your pet's skin.
Position the collar strap high on your pet's neck with the Computer Collar unit under its lower jaw.
4

Operating Guide

®
transmitter in the
®
transmitter is on.
®
transmitter until desired area is protected.
www.invisiblefence.com
®
unit when turning on the

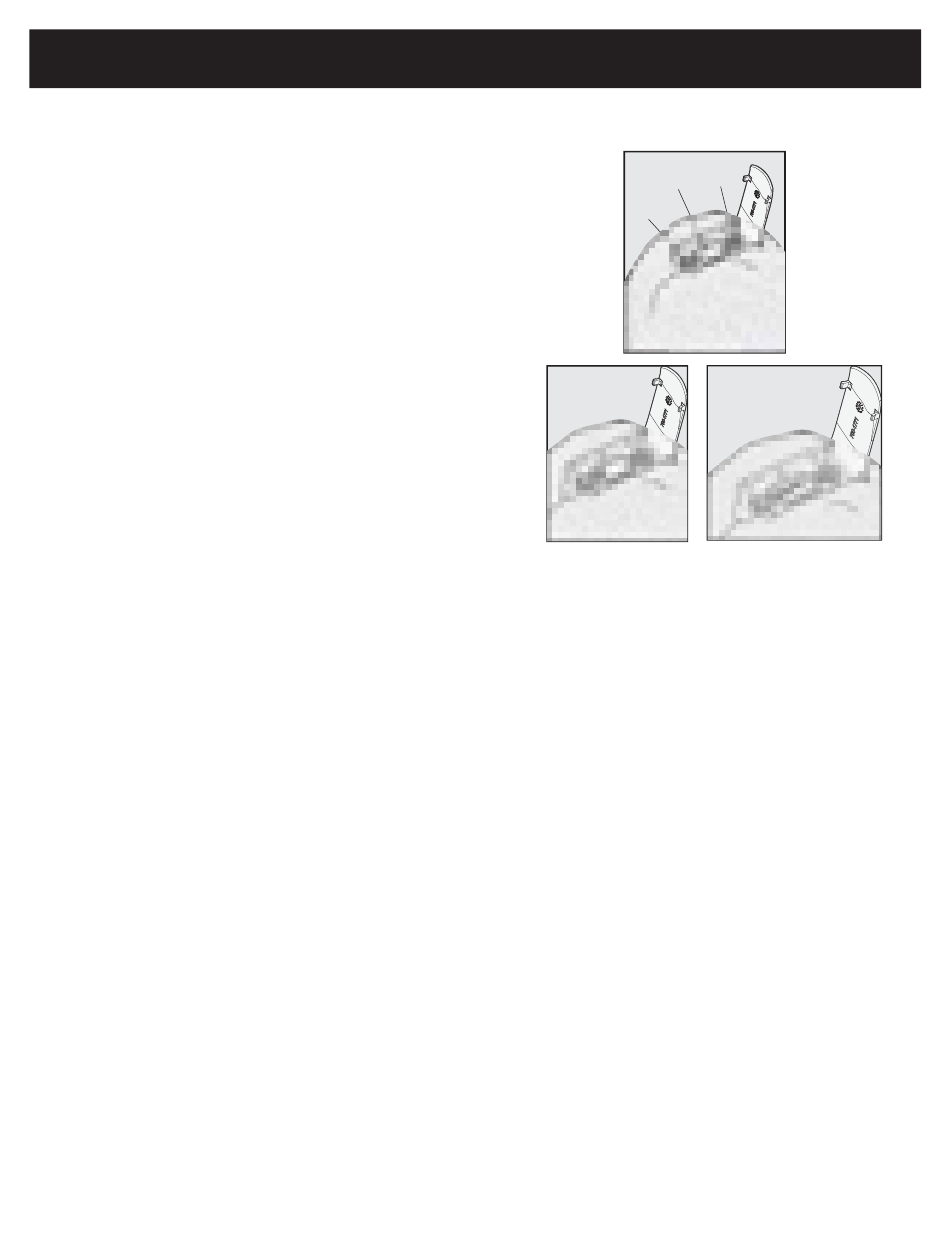

LCD
Up
Display
Button
Window
Down
Button
®
transmitter.
