INVISIBLE FENCE GPS Owner's Manual

Pet containment system
Hide thumbs

Advertisement

Quick Links

Download this manual

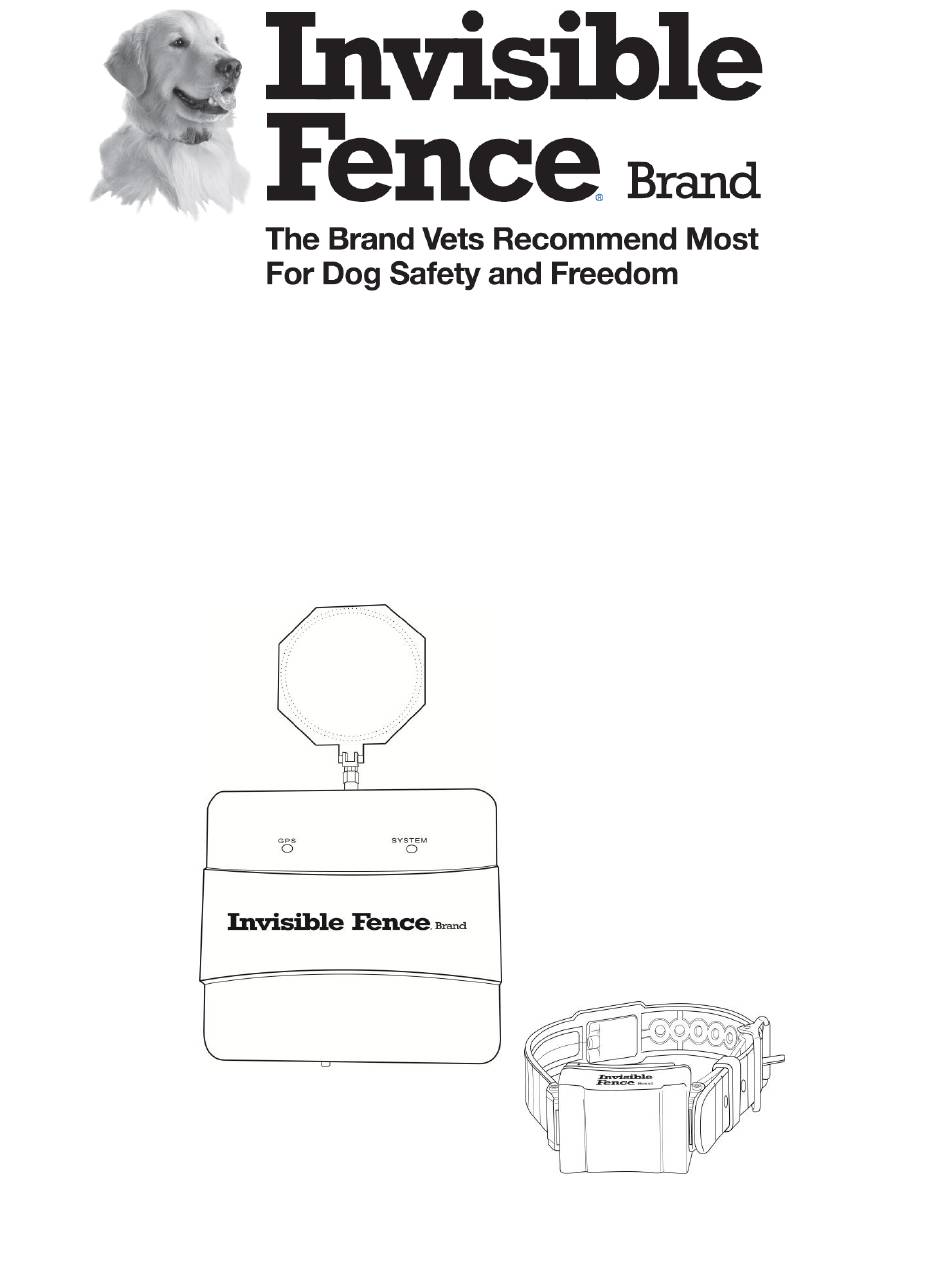

GPS
Pet Containment System
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the GPS and is the answer not in the manual?

Questions and answers

Related Manuals for INVISIBLE FENCE GPS

Summary of Contents for INVISIBLE FENCE GPS

  • Page 1 Pet Containment System Owner’s Manual...
  • Page 2 These steps will help keep your pet safe and comfortable. Millions of pets are comfortable while they wear stainless steel contacts. Some pets are sensitive to contact pressure. You may find after some time that your pet is very tolerant of the GPS Mobile Unit. If so, you may relax some of these precautions.
  • Page 3 Train your pet according to the instructions in the Invisible Fence Brand training manuals. Complete all steps before ® allowing your pet to run free. Do not become overly confident if your pet has become conditioned to the Invisible Fence Brand pet containment system sooner than expected. ...
  • Page 4 Brand GPS pet containment system ® is backed with a one-year, money-back guarantee. The support of your Invisible Fence Brand Dealer gives you peace of mind that your pet remains safe at home. Refer to the back of your sales contract for complete details.

  • Page 5: Components

    Definition: A Correction is a training term used to describe an action taken to discourage unwanted pet ® behavior. The GPS Mobile Unit applies a correction when your pet crosses the boundary of an Invisible Fence Brand electronic pet containment system. Corrections are used in combination with rewards to alter unwanted pet behavior.

  • Page 6: Operating Guide

    First Usable Fix”. This data includes differential range corrections for all visible satellites, approximate GPS time, ephemeris data, and the ionosphere correction model. The GPS Base Station will also provide and alert tone for a low GPS Mobile Unit battery or a GPS Mobile Unit escape. See Tone Indicators below.
  • Page 7 GPS Mobile Unit Primary Function  The primary function of the GPS Mobile Unit is to contain the pet within the fence. It does this by correlating its position using GPS satellites to determine the position of the GPS Mobile Unit within the containment area.
  • Page 8 GPS Mobile Unit has started navigation; the color indicates GPS signal quality. Indicator Flash GPS Signal Quality Green High Yellow Signal Quality is un-useable  You may initiate a Battery and GPS LED flash at any time by briefly pressing and releasing the pushbutton. Pushbutton Mobile Interface Port Charging Port...
  • Page 9 Red – Battery charging o Green – Battery charge complete (approximately 3.5 hours for a full charge) o Battery life should be approximately 36 to 48 hours. It is recommended that the GPS Mobile Unit is charged every 24 hours.
  • Page 10 Pushbutton Commands  The pushbutton is also used to shut down the GPS Mobile Unit. Press and hold the pushbutton for 8 to 10 seconds. During this time you will not hear any beeps. Keep the pushbutton depressed until you hear a repeating one beep per second. Release the pushbutton and the GPS Mobile Unit will shut down.

  • Page 11: Troubleshooting

     Hold the GPS Mobile Unit with the GPS Antenna facing up.  Hold the GPS Mobile Unit about the same height and at the same angle as it will be when the pet is wearing it.  Walk slowly toward the containment boundary. The GPS Mobile Unit will activate when you reach the edge of the signal field.
  • Page 12 Separate collection of spent batteries is required in many regions; check the regulations in your area before discarding spent batteries. The GPS Mobile Unit operates on 1 rechargeable Lithium Ion Polymer (Li-ion) battery pack with a 3.7 Volt, 1200 mAh capacity.
  • Page 13 § 95.1303 Authorized locations. (a) MURS operation is authorized: (1) Anywhere CB station operation is permitted under § 95.405; and (2) Aboard any vessel of the United States, with the permission of the captain, while the vessel is travelling either domestically or in international waters. (b) MURS operation is not authorized aboard aircraft in flight.
  • Page 14 § 95.653 Instructions and warnings. (a) A user's instruction manual must be supplied with each transmitter marketed, and one copy (a draft or preliminary copy is acceptable provided a final copy is provided when completed) must be forwarded to the FCC with each request for certification.
  • Page 15 Dealer Name: Dealer Phone: Notes:...
  • Page 16 (USA) ©2013 Radio All rights Patents Pending www.invisiblefence.com...
