Primary Function
 The GPS Base Station's primary function is to derive and supply GPS Mobile Collar
Unit's with GPS assistance data. Assistance data improves the GPS Mobile Collar
Unit's absolute accuracy and "Time to First Usable Fix". This data includes differential
range corrections for all visible satellites, approximate GPS time, and ephemeris data.
The GPS Base Station will also provide and alert tone for a GPS Mobile Collar
distress (i.e. warnings and corrections are disarmed). See Tone Indicators below.
Tone Indicators
 The GPS Base Station may emit two possible beep sequences.
o Two beeps in response to a pushbutton Start Reference Acquisition. (Release
button upon hearing the beeps)
o A two second long beep is a GPS Mobile Collar
indicates that a GPS Mobile Collar
Light Indicators
 The GPS Base Station LED (Left Light) reflects GPS signal quality.
Light Display – Left Light
Solid Green
Fast Flash Green (4/second)
Slow Flash Green (1/second)
Fast Flash Yellow/Orange (4/second)
Slow Flash Yellow/Orange (1/second)
Fast Flash Red (4/second)
 The Base System LED (Right Light) reflects base input voltage and mode.
Light Display – Right Light
Solid Green
Fast Flash Yellow/Orange (4/second)

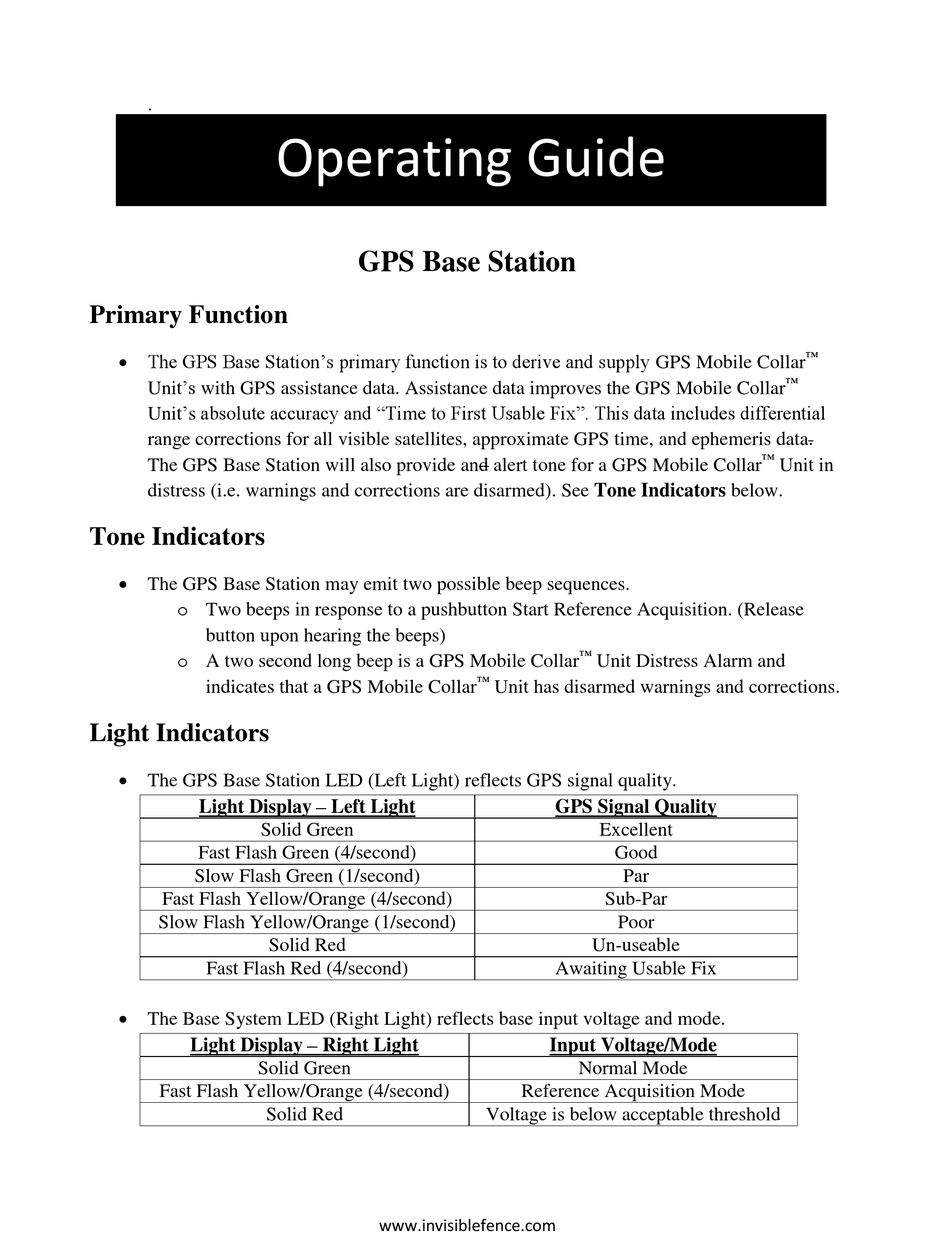

Operating Guide

GPS Base Station
Solid Red
Solid Red
www.invisiblefence.com
™
Unit Distress Alarm and
™
Unit has disarmed warnings and corrections.
GPS Signal Quality
Excellent
Good
Par
Sub-Par
Poor
Un-useable
Awaiting Usable Fix
Input Voltage/Mode
Normal Mode
Reference Acquisition Mode
Voltage is below acceptable threshold
™
™
™
Unit in
