General Description
The evaluation kit for the epc611 chip is a tool to learn about the
functionality and performance of the epc611 chip. It consists of two
implementations of the chip into typical modules:
■ TOF>range 611: A range finder, where the 64 pixels are com-
bined into one cluster pixel. This range finder operates up to 15
meters and allows a measurement accuracy in the cm range.
■ TOF>frame611: A tiny imager with 8x8 pixels and an operating
range of two meters. This device allows e.g. people counting,
simple gesture recognition, etc.
Both modules operate also under full sunlight condition on the tar-
get, to demonstrate the outdoor capabilities.
This document presents an overview of the operation and function-
ality of the epc611 Evaluation Kit. It also contains the schematic di-
agrams which can be used as reference designs. In addition to that
the complete firmware of the two modules comes in C source code,
to support the implementation of your own modules.
© 2018 ESPROS Photonics Corporation
Characteristics subject to change without notice
Neumüller Elektronik GmbH | Gewerbegebiet Ost 7 | 91085 Weisendorf | +49 9135 73666-0 | www.neumueller.com | info@neumueller.com
Neumüller Elektronik GmbH
Features
■ A quick introduction to the epc611 3D-TOF chip
■ Complete development system for applications using the epc611
chip as a range-finder or 8x8 pixel imager
■ The basic epc611 chip operation modes can be evaluated
■ Includes TOF>range 611, TOF>frame 611 and USB adapter
■ Range-finder TOF>range 611: FOV 0.18° (h/v)
Operating range up to 15m on white targets
■ 8x8 pixel imager TOF>frame 611: FOV 12° (h/v)
FOV for near-field gesture control
■ Log section to capture single images and picture sequences for
further processing
■ User software (PC/Mac) with visualization and logging features. It
includes all the source code libraries for development.
Applications
■ Evaluation and development support

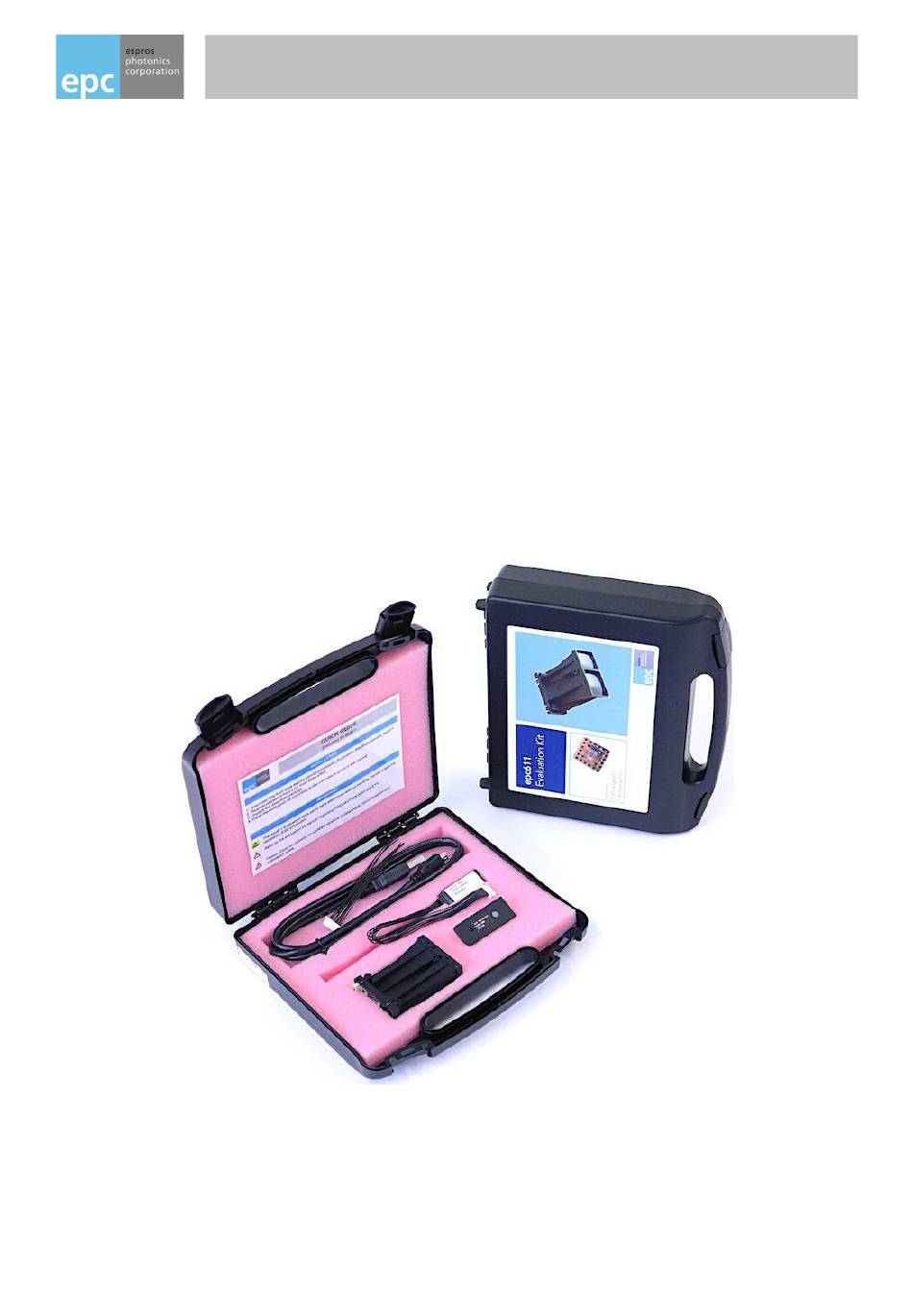

Figure 1: epc611 evaluation kit
1 / 15
info@neumueller.com
Manual epc611 Evaluation Kit
How to get started
Manual_epc611_Evalkit-V1.01
www.espros.com
Advertisement
Table of Contents
Related Manuals for EPC 611
Summary of Contents for EPC 611
- Page 1 8x8 pixel imager ■ TOF>range 611: A range finder, where the 64 pixels are com- ■ The basic epc611 chip operation modes can be evaluated bined into one cluster pixel. This range finder operates up to 15 ■...
-
Page 2: Precaution And Safety
Download the current Datasheet epc611: www.espros.com → Downloads → Datasheets → Chips Download the current Datasheet TOF>range 611 or TOF>frame 611: www.espros.com → Downloads → Datasheets → Camera_and_Modules Download the current Manual epc611_Evalkit: www.espros.com → Downloads → Datasheets → Evaluation_Kits Always download and use the latest epc611 Evaluation Kit software. -
Page 3: Table Of Contents
3. Hardware ..............................6 3.1. TOF>range 611 and TOF>frame 611 ..............................6 3.1.1. Technical data .................................... 6 3.1.2. PCB assembly of the TOF>range 611 ............................6 3.1.3. Schematics TOF>range 611 ..............................7 3.1.4. TOF>frame 611 ..................................8 3.2. USB-UART adapter ..................................... 8 3.2.1. -
Page 4: Epc611 Evaluation Kit

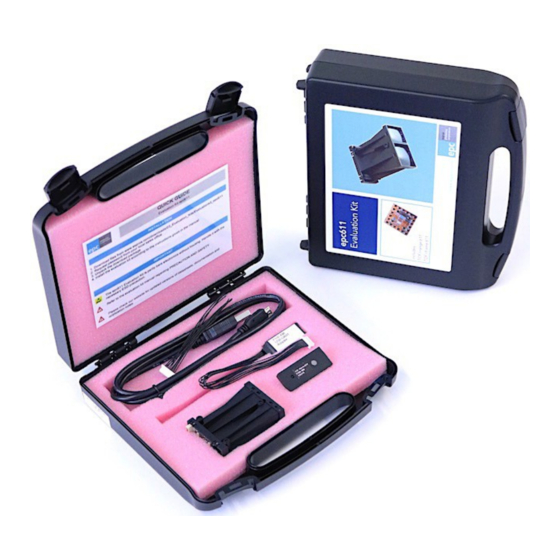

Part Number Part Name Remarks P100 487 epc611 Evaluation Kit Includes TOF>range 611, TOF>frame 611, USB adapter and cables P100 483 TOF>range 611 Distance measurement engine, Spot 3 x3 mm @ 1m, range 0 ... 15m P100 499 TOF>frame 611 Distance measurement engine, FOV 12°... - Page 5 Ihr autorisierter Distributor Neumüller Elektronik GmbH info@neumueller.com Figure 3: epc611 evaluation kit Figure 4: TOF>frame 611 (left) and TOF>range 611 (right) Figure 5: TOF>range 611 and USB-UART adapter Figure 6: TOF>frame 611 and USB-UART adapter Figure 7: GUI – TOF>range 611 Figure 8: GUI –...
-
Page 6: Hardware
3. Hardware 3.1. TOF>range 611 and TOF>frame 611 3.1.1. Technical data The technical data of TOF>range 611 and TOF>frame 611 are specified in the corresponding datasheets. 3.1.2. PCB assembly of the TOF>range 611 Figure 9: Assembly top TOF>range 611 R1 2 Figure 10: Assembly bottom TOF>range 611... -
Page 7: Schematics Tof>Range 611
Ihr autorisierter Distributor Neumüller Elektronik GmbH info@neumueller.com 3.1.3. Schematics TOF>range 611 Figure 11: Schematics TOF>range 611 © 2018 ESPROS Photonics Corporation 7 / 15 Manual_epc611_Evalkit-V1.01 Characteristics subject to change without notice www.espros.com Neumüller Elektronik GmbH | Gewerbegebiet Ost 7 | 91085 Weisendorf | +49 9135 73666-0 | www.neumueller.com | info@neumueller.com... -
Page 8: Tof>Frame 611
3.1.4. TOF>frame 611 The TOF>frame 611 uses the same PCB board as TOF>range 611. The only differences are with the epc611 receiver chip, which has a lens bonded to the chip and different software in the microcontroller. PCB TOF>range 611... -
Page 9: Schematics Usb-Uart Adapter
Ihr autorisierter Distributor Neumüller Elektronik GmbH info@neumueller.com 3.2.3. Schematics USB-UART adapter Figure 15: Schematics USB-UART adapter © 2018 ESPROS Photonics Corporation 9 / 15 Manual_epc611_Evalkit-V1.01 Characteristics subject to change without notice www.espros.com Neumüller Elektronik GmbH | Gewerbegebiet Ost 7 | 91085 Weisendorf | +49 9135 73666-0 | www.neumueller.com | info@neumueller.com... -
Page 10: Installation And Setup
Figure 16: Principal system setup e.g. for TOF>frame 611 Refer also to Figure 5 and Figure 6. The epc611 evaluation kit uses the TOF>range 611 and TOF>frame. They are general purpose camera/sensor modules based on the epc611 chip: ■ The sensor/camera is based on a board with a small microprocessor. -
Page 11: Software Installation
Ihr autorisierter Distributor Neumüller Elektronik GmbH info@neumueller.com 4.3. Software installation The epc611 evaluation kit uses software which can be downloaded from the ESPROS homepage at www.espros.com. Click the link “Downloads” as shown below: Figure 17: ESPROS homepage with the Download link You will see a folder structure. -
Page 12: Gui Functionality
After starting the “ESPROS_TOF-imager_GUI_611” application file, the software connects automatically to the device. The corresponding control window of the Graphical User Interface (GUI) appears. Figure 19: Control window after startup for TOF>range 611 Figure 20: Control window after startup for TOF>frame 611 The GUI consists of different windows: The control window is on top, the corresponding display windows are on a lower level. -
Page 13: Miscellaneous Functions
Figure 27: Pixel info TOF>range 611 Figure 28: Pixel info TOF>frame 611 Yellow arrows show selected pixel Figure 29: GUI, firmware and chip info TOF>range 611 Figure 30: GUI shows pop-up tool tip window Figure 31: Log dialog Figure 32: Save, reload GUI configurations and update the firmware ©... -
Page 14: Maintenance And Disposal
7. Addendum 7.1. Related documents ■ Datasheet epc611, ESPROS Photonics Corp. ■ Datasheet TOF>range 611, ESPROS Photonics Corp. ■ Datasheet TOF>frame 611, ESPROS Photonics Corp. ■ Application note AN10 TOF Calibration and Compensation, ESPROS Photonics corp. ■ Application note AN12_Distance_Noise_Reduction_with_Kalman_Filter, ESPROS Photonics corp. - Page 15 Only products designated by epc as military-grade meet military specifications. Buyers ac- knowledge and agree that any such use of epc products which epc has not designated as military-grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
