Specifications; Internal Picture - Resolution RE108 User Manual

Specifications

GE Device Type:
Zone sensing duration:
End-of-line Resistors:
Max wire run:
Backup batteries:
External supply:
Current draw with supply: 4mA, normal operation.
PIR usage:
AC Fail Conditions:
Device Low Battery Conditions: Low battery for 1 minute. Restores on
Back-up Battery Life on AC Fail: 2 years, all zones terminated in 4.7K;
Housing dimensions:
Specifications subject to change without notice.

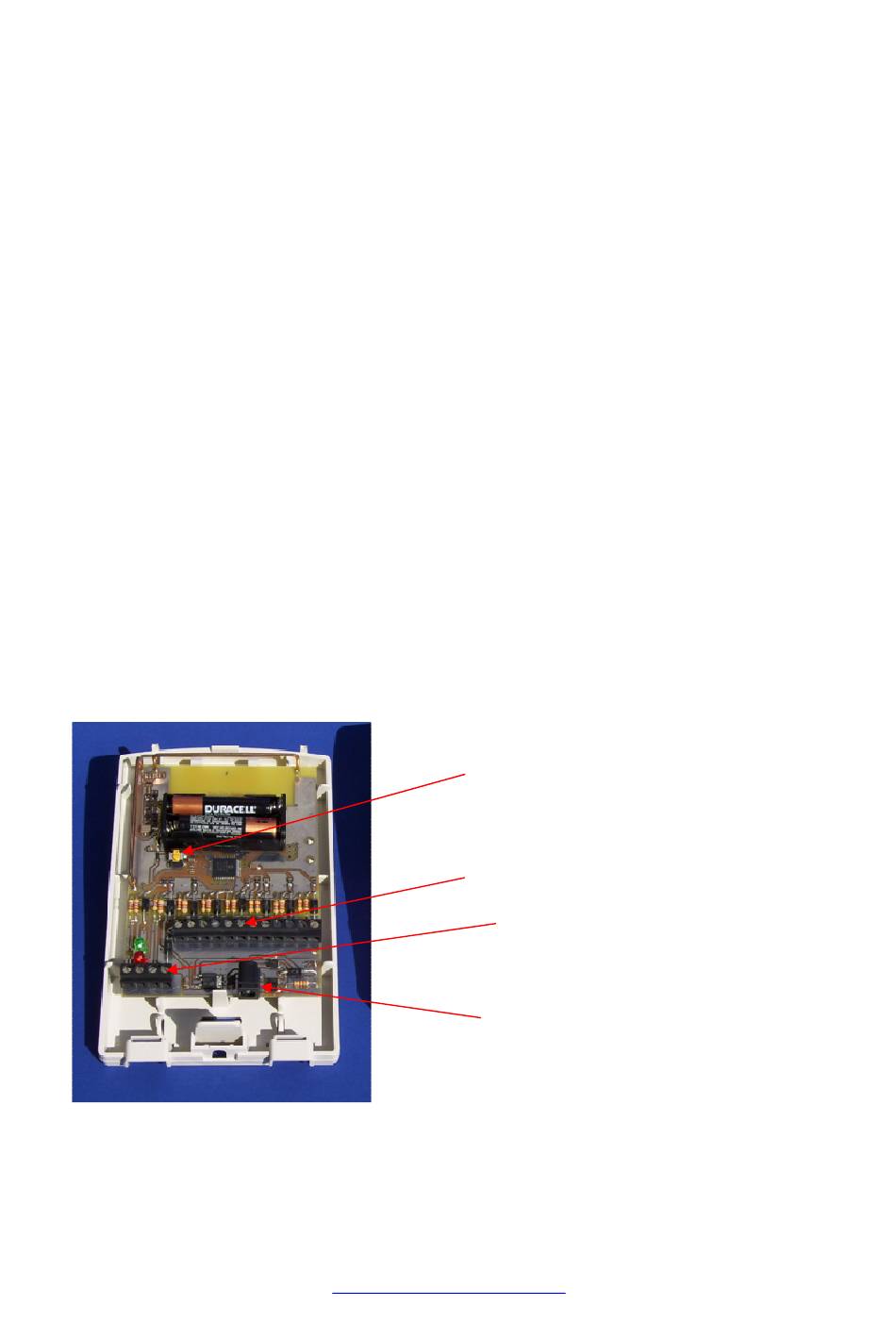

Internal Picture

Page 2 of 3
10
State sensed if held more than 600ms.
4.7k-ohm, 5%.
1000 feet
Two AAA Alkaline.
7-14V AC or DC, at least 50mA.
Supply must be DC only. PIR may need tighter
voltage tolerance. Add PIR and device
current requirements together to get total
current need.
AC gone for 15 minutes. Restores on AC
restore.
device tamper, AC restore.
longer if unused/open.
4x6x1 inches
RE108_Hardwire_to_GE-Compat_Translator.doc
www.ResolutionProducts.com
(all 8 zone ID's and device ID)
Tamper / Enroll Switch
Terminals for Zones 3-8
Terminals for Zones 3-8
Power Terminals
