Resolution RE324TD Manual

RE324TD 2GIG ® -to-DSC ® Wireless Translator™
Features
Listens to 2GIG (& Honeywell) protocol wireless devices.
•
Transmits DSC protocol wireless.
•
Enrolls up to 63 devices.
•
Unique wireless ESN for each zone, plus 1 for main device.
•
All sensor alarm, supervisory and trouble signals are passed through.
•
Dual antennas for both Receive and Transmit diversity for reliable range.
•
Back-up battery operation.
•
Loss of AC/DC power indicator, Translator will beep once a minute.
•
Complete supervision of tampers, external power supply fault and low
•
battery.
Key Instructions
Translator is for use only with DSC systems that have "Easy Wireless
•
Enrollment". These include Alexor, Impassa and Version 4.6 PowerSeries.
External supply: 12V DC at least 50 mA. NON-SWITCHED outlet.
•
Wire polarity DOES NOT matter!
Mount Translator at least 20 feet from Control Panel's receiver.
•
3 AAA Alkaline batteries give 72 hours backup if external supply fails.
•
INSTALL BATTERIES ONLY WHEN EXTERNAL SUPPLY IS READY TO CONNECT.
Enrolling:
•
Sensor enrollment:
1. Enter Wireless Enrollment Mode on DSC Panel.
2. Press Translator Enroll switch repeatedly until Device Type LED
matches the type of device you're enrolling.
ENROLL PIRs FIRST TO AVOID MISTAKEN ENROLLMENTS.
ENROLLING AS WRONG DEVICE TYPE CAN CAUSE IMPROPER
OPERATION.
3. Activate particular 2GIG (or Honeywell) wireless device:
o PIR: Tamper – ENROLL PIRs FIRST (Used for PIRs and Glass
Break Sensors)
o Panic: Button
o Key Fob: Lower Right button
o DWS: Tamper NOTE: 2GIG sensors can use magnetic OR
external, but not both. Honeywell 5800 Micra, 5811 Micro,
5814 Micro, 5818 Recessed, 5820L are enrolled by battery
plunge.
Automatic Translator responses:
o Green LED blinks when hearing a 2GIG packet.
o Translator beeps on each enrollment into itself.
o Red LED blinks when speaking a DSC packet.
4. Confirm ESN, Enter Zone # and Zone Type on DSC panel.
Main Translator device enrolled into panel by its tamper switch.
Zone Type 03 will monitor Tamper, Low Battery and Supervisions.
Deleting sensors enrolled in Translator:
•
Delete all sensors:
1. Press enroll button repeatedly until all Device Type LEDs are off.
2. Press and hold enroll key for 5 seconds until beep.
Delete one Device Type:
1. Press enroll button repeatedly until target Device Type LED is lit.
2. Press and hold enroll key for 5 seconds until beep.
RE324TD_2GIG-to-DSC_Wireless_Translator
Page 1 of 4 24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Operation
16-Oct-14 Page 2 of 4
Existing 2GIG & Honeywell protocol sensors transmit as usual. Translator
•
passes information on to control panel as if they were DSC transmitters.
Here is the Fob behavior...
•
2GIG Fob HNW Fob
Buttons Buttons ... do these actions on the DSC system
Off
Unlock OFF
Away
Away ON
Home
Stay Left
Panic
Away+Disarm Right
no action
Star
Translator Module Zone wireless transmission ( unique ID):
•
Tamper, when cover opened. Also sends restore.
Low battery, when low battery. Also sends restore.
Supervisory every hour. Supervisory stopped if 12V DC power absent.
Translator Module does not send any alarm signals about itself.
LED Operation
•
Green LED
On if 12V DC power present.
•
Blinks on receipt of 2GIG-compatible packets.
•
Red LED
On if device low battery (unless there's no 12V DC
•
power).
Blinks on transmit of DSC-compatible packets.
•

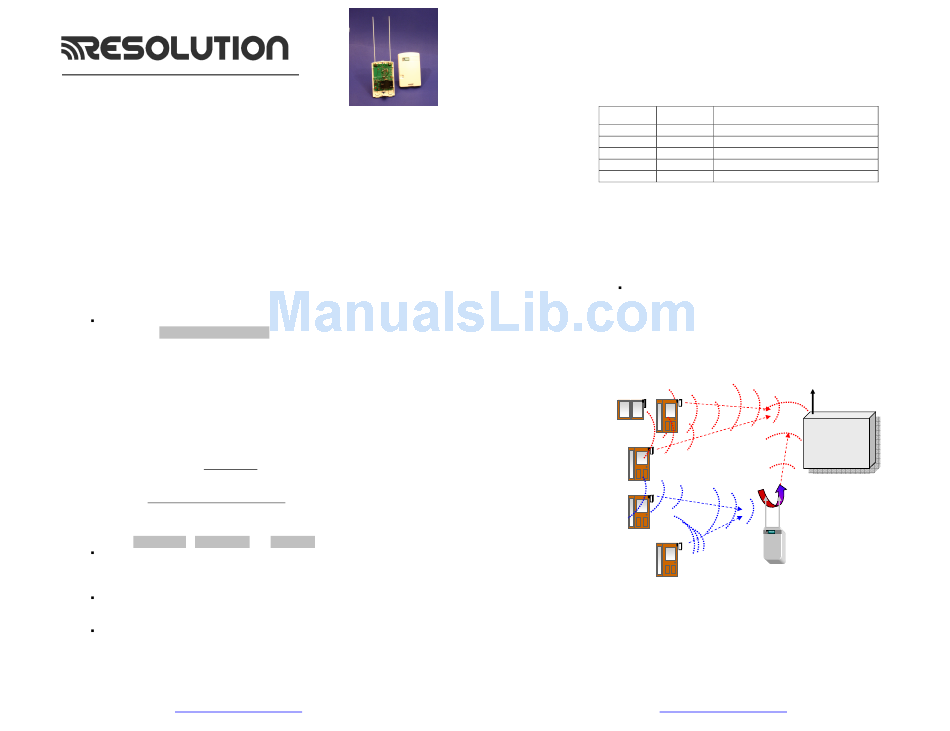

Application Diagram
•
New DSC
Wireless
Sensors
Existing 2GIG
Wireless
Sensors
Existing
Honeywell
Wireless
Sensors
RE324TD_2GIG-to-DSC_Wireless_Translator
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
New DSC
Wireless System
16-Oct-14
