Resolution RE124TG Instructions

RE124TG 2GIG ® -to-GE ® Wireless Translator™
Features
Listens to both 2GIG and Honeywell protocol wireless devices.
•
Also listens to old Honeywell devices from original 2GIG takeover.
•
Transmits GE protocol wireless.
•
Enrolls up to 63 devices.
•
Unique wireless ID for each zone, plus 1 for main device.
•
All sensor alarm, supervisory and trouble signals are passed through.
•
Dual antennas for both Receive and Transmit diversity for reliable range.
•
Back-up battery operation.
•
Complete supervision of tampers, external power fault and low battery.
•
Key Instructions
External supply: 12V DC at least 50 mA. Power terminals do not care
•
which wire is positive or negative!
Mount Translator at least 20 feet from Control Panel's receiver.
•
3 AAA Alkaline batteries give 72 hours backup if external supply fails.
•
INSTALL BATTERIES ONLY WHEN EXTERNAL SUPPLY IS READY TO CONNECT.
Enrolling:
•
Sensors
1. Place Panel in Learn Sensors mode.
2. Press Translator Enroll switch repeatedly until Device Type LED
matches the type of device you're enrolling. ENROLLING AS
WRONG DEVICE TYPE CAN CAUSE IMPROPER OPERATION.
3. Activate particular 2GIG (or Honeywell) sensor as follows:
o PIR: Tamper – ENROLL PIRs FIRST
No tamper on Honeywell 5800PIR-RES: Insert battery
(Used for PIRs and Glass Break sensors)
o Panic: Button
o Key Fob: Lower Right
o DWS: Tamper
No tamper on Honeywell DWS: Insert battery
4. Automatic responses:
o Green LED blinks on receipt of 2GIG (& HW) packets.
o Translator beeps on enrollment into Translator.
o Red LED blinks on transmit of GE packet to panel.
o The Translator transmits packets to the panel as soon as
it learns a new sensor.
5. Panel, if in Learn Sensors mode, will generally learn the GE-
compatible packets simultaneously
Main Translator device
1. Place Panel in Learn Sensors mode.
2. Press tamper switch on Translator board. Enroll in Group 10.
Translator itself never alarms, but its health needs to be
monitored like a regular DWS.
Delete all sensors:
1. Press enroll button repeatedly until all Device Type LEDs are
off.
2. Press and hold enroll key for 5 seconds until beep.
Delete just one Device Type:
1. Press enroll button repeatedly until target Device Type LED is
lit.
2. Press and hold enroll key for 5 seconds until beep.
RE124TG_2GIG-to-GE_Wireless_Translator
Page 1 of 4
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Operation
Page 2 of 4
29-Oct-14
Existing 2GIG (& Honeywell) protocol sensors transmit as usual.
•
Translator passes information on to control panel as if they were GE
transmitters.
Here is the Fob behavior...
2GIG Fob HNW Fob
Buttons Buttons ... do these actions on the GE system
Unlock OFF Unlock
Away ON Lock
Stay Left Lights
Away+Disarm Right Double button press: Lock & Unlock
Star no action
Translator Module Zone wireless transmission ( unique ID):
•
Tamper, when cover opened. Also sends restore.
Low battery, when low battery. Also sends restore.
Supervisory every hour. Supervisory stopped if 12V DC power absent.
Translator Module does not send any alarm signals about itself.
LED Operation
•
Green LED
On if 12V DC power present.
•
Blinks on receipt of Honeywell-compatible packets.
•
Red LED
On if device low battery (unless there's no 12V DC
•
power).
Blinks on transmit of GE-compatible packets.
•

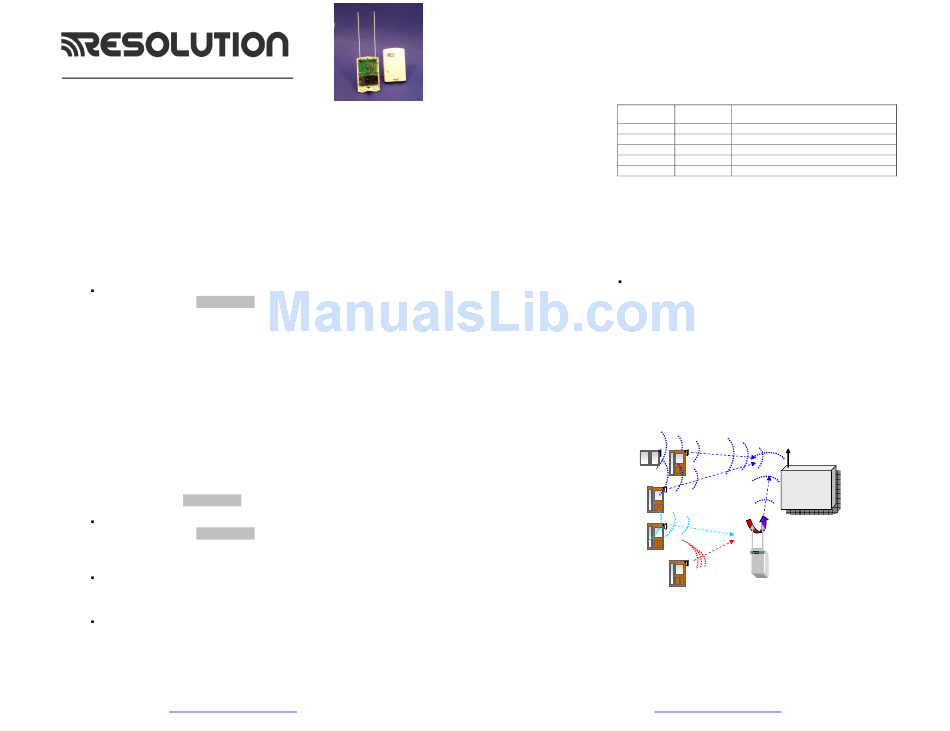

Application Diagram
•
New GE
Wireless
Sensors
Existing
2GIG
Wireless
Sensors
Existing
Honeywell
Wireless
Sensors
RE124TG_2GIG-to-GE_Wireless_Translator
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
New GE
Wireless
System
29-Oct-14
