Resolution RE108 Quick Start Manual

RE108 Hardwire-to-GE ® Wireless Translator™
Features
Converts hardwire zones into GE-compatible wireless signals.
•
8 Hardwire loops with end-of-line resistor detection.
•
Unique wireless ID for each zone, plus 1 for main device.
•
Transmit diversity for long reliable range.
•
PIR/Glassbreak powering (via external supply).
•
3 year operation on batteries (monitoring contacts only).
•
Complete supervision of zone tampers and low battery.
•
Key Instructions
DO NOT MOUNT IN A METAL CAN.
•
DO NOT PUT POWER ON HARDWIRE TERMINALS.
•
Use with normally closed contacts in-line with 4.7 K-ohms resistors (mandatory).
•
Not for use with life safety devices, such as Smoke or CO sensors.
•
External supply requirements:
•
Contacts-only installations may use wall plug power supply (see specifications)
Installations with PIRs or Glassbreaks (powered devices) require battery-
backed external power supply (see diagram).
Without backed-up power, PIRs or Glass Breaks could alarm when
power is lost.
Translator AA batteries drive contacts only, and do not drive
powered devices.
Ensure that external supply has sufficient current to supply all
powered devices including Translator.
4-wire powered devices only. Not for use with 2-wire powered
devices.
If using old panel as the battery-backed 12V DC supply, verify supply
and battery operation. DO NOT MOUNT TRANSLATOR IN OLD CAN... the wireless will not
get out!
Installation
Hook up PIR and Glass Break power lines to external power supply.
•
Alarm contact hook-up:
•
Works only with normally-closed contacts (alarm = open).
Remove any existing end-of-line resistors.
Connect 4.7K end-of-line resistor (included) IN-LINE with contact.
Resistor should NOT be across (between) terminals.
Enrollment:
•
Put Panel in Learn Sensor mode.
When panel asks to "Trip Sensor", short (tamper) each loop to enroll it. You
can use a piece of wire or needle nose pliers between the terminal screws.
To enroll Translator itself, press tamper switch on Translator.
Select Group based on how you want Translator tamper to report:
Group 10 will report Translator tamper to central station on
•
next supervisory. Tamper will cause protest at arming.
Group 36 will alarm and report Translator tamper to central
•
station immediately.
RE108_Hardwire_to_GE-Compat_Translator
Page 1 of 4 24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
•
Existing Hardwire Sensors
•
To Enroll zone,
short the two terminals with
This sends a wireless
tamper signal.
End of Line
Resistor
4.7K
Contact
(Normally Closed)
Power Supply polarity
DOES NOT matter!
15-Oct-14 Page 2 of 4

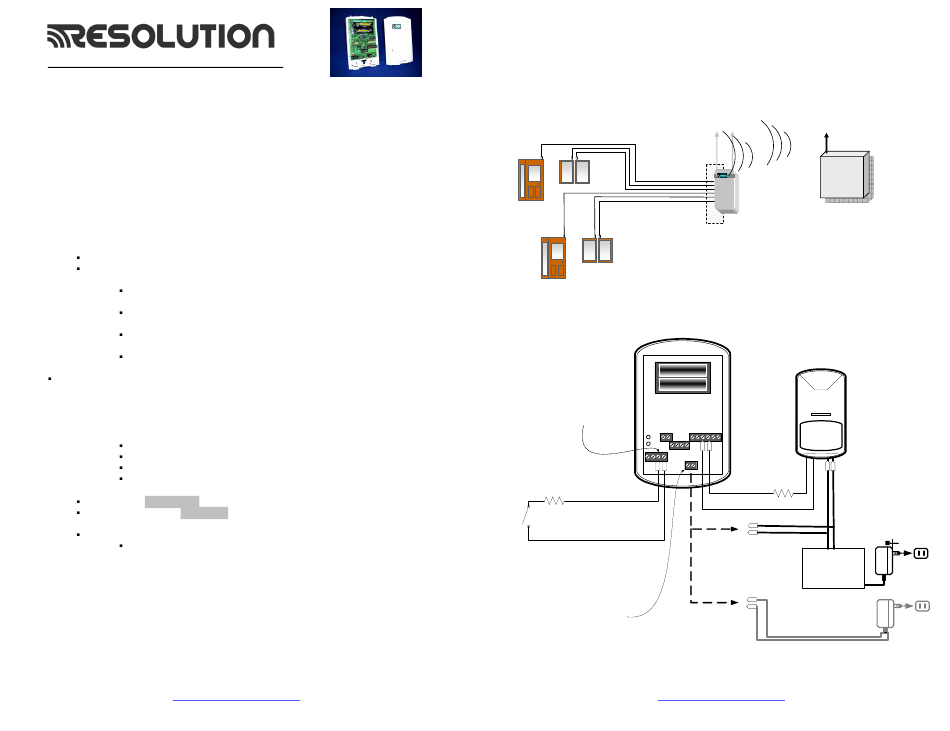

Application Diagram
Taking over old Hardwire panel,
usually mounted in utility area
Connection Diagram
a wire.
Loop
y
Loop
x
Use Battery-Backed 12VDC
if powering
PIRs or Glass Breaks
Old Panel may be used,
if operation fully verified
Use Non-Battery-Backed
Supply ONLY if installation is
all non-powered contacts
RE108_Hardwire_to_GE-Compat_Translator
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
GE Wireless
New Wireless
System
New GE
Self-Contained System in
living area
Translator AA
Batteries DO NOT
power external
devices
PIR
PIR Contact
PIR
Output
Power
(Normally
Input
Closed)
4.7K
Altronix TP1620
16.5VAC, 20VA
Transformer
with securing screw
+12 VDC GND
Altronix AL100UL
12VDC Supply
With Lead-acid
NON-Switched
battery
Outlet
Resolution
RE012
12 VDC
Power Supply
May use GE 60-898-ITI supply here,
if securing screw is desired
15-Oct-14
