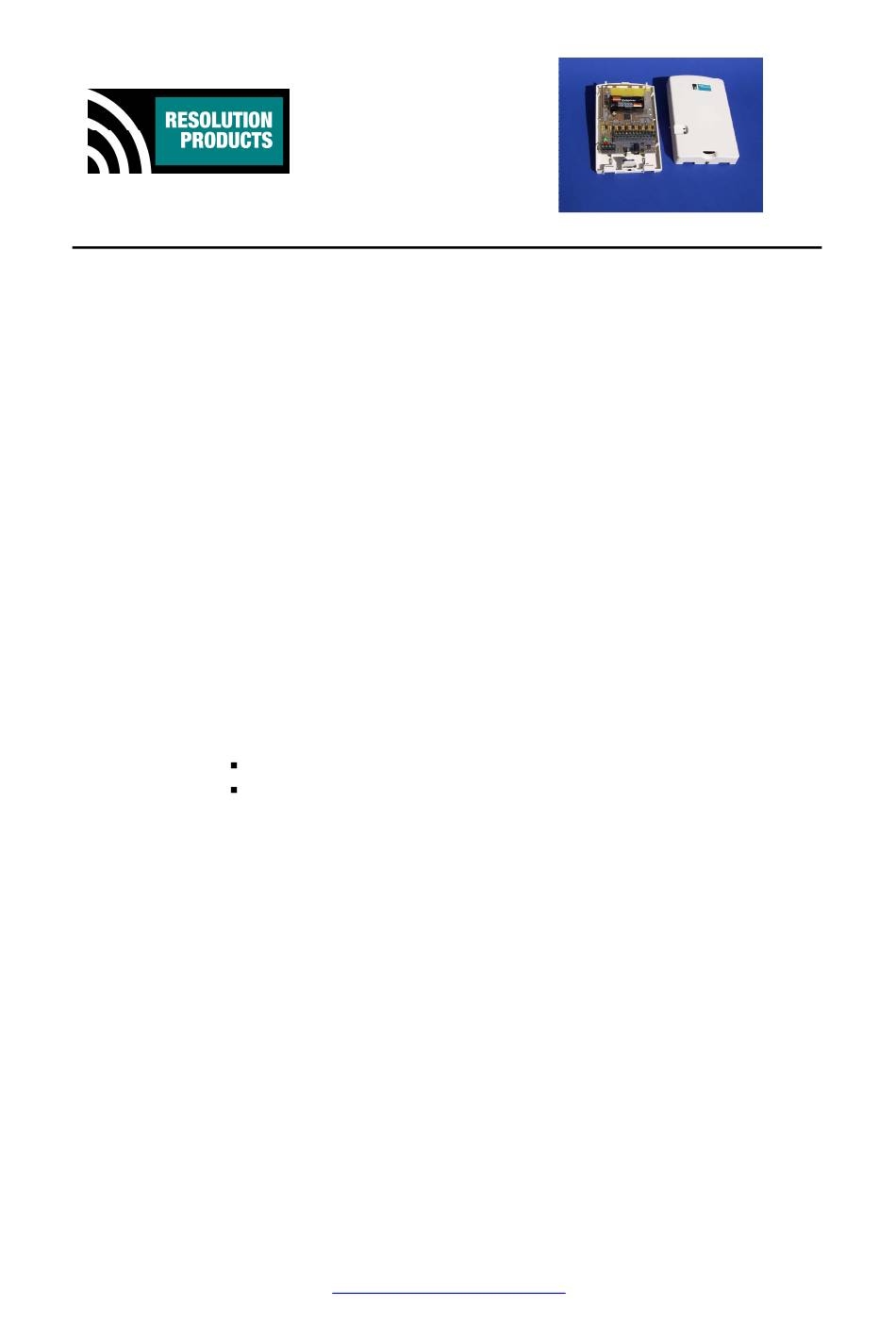

RE108 Hardwire to Wireless Takeover Translator, GE-Compatible
Features
• Converts hardwire zones into GE-compatible wireless signals.
• 8 Hardwire loops with end-of-line resistor detection.
• Unique wireless ID (or loop) for each zone, plus 1 for main device.
• Transmit diversity for long reliable range.
• PIR powering (via external supply).
• Back-up battery operation.
• Complete supervision of tampers, external power supply fault and low
battery.
Key Instructions
• Use with normally closed contacts in-line with 4.7 K-ohms end-of-line
resistors.
• 4-wire PIRs only.
• External supply: 7-14V AC or DC at least 50 mA.
• PIR usage: Adds requirements to external supply – see Specifications.
• 2 AAA Alkaline batteries are for backup in case of external supply
failure. Backup batteries cannot drive the PIR.
• Enrolling:
Operation
• 8 Hardwire Zones wireless transmissions (8 unique IDs):
Alarm, when Device sees open circuit.
Tamper, when device sees short circuit.
Supervisories, every hour for each zone.
• Translator Main Zone wireless transmission (9
Tamper, when cover opened.
Low battery, when either low AAA batteries, OR loss of AC.
Supervisory every hour.
• LED Operation
Green LED: On if AC power present.
Red LED:
Page 1 of 3
Wireless
Security
Solutions
Loops enrolled by tampering (shorting).
Main device enrolled by tamper switch on the board.
On if device tamper or device low battery
RE108_Hardwire_to_GE-Compat_Translator.doc
www.ResolutionProducts.com
th
unique ID):
21-Sep-09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Resolution RE108
Summary of Contents for Resolution RE108
- Page 1 Wireless Security Solutions RE108 Hardwire to Wireless Takeover Translator, GE-Compatible Features • Converts hardwire zones into GE-compatible wireless signals. • 8 Hardwire loops with end-of-line resistor detection. • Unique wireless ID (or loop) for each zone, plus 1 for main device.
- Page 2 Specifications GE Device Type: (all 8 zone ID’s and device ID) Zone sensing duration: State sensed if held more than 600ms. End-of-line Resistors: 4.7k-ohm, 5%. Max wire run: 1000 feet Backup batteries: Two AAA Alkaline. External supply: 7-14V AC or DC, at least 50mA. Current draw with supply: 4mA, normal operation.
- Page 3 “GE”, “Honeywell”, and “DSC” are trademarks owned by General Electric Company, Honeywell International Inc., and Tyco Safety Products Canada LTD, respectively. Resolution Products, Inc. products will function with one of either GE, DSC or Honeywell systems. However, no Resolution product is produced by, endorsed by, nor is officially associated with GE, Honeywell or DSC.
