Resolution RE208 Manual

RE208 Hardwire-to-Honeywell
Features
Converts hardwire zones into Honeywell-compatible wireless signals.
•
8 Hardwire loops with end-of-line resistor detection.
•
Unique wireless ID for each zone, plus 1 for main device.
•
Transmit diversity for long reliable range.
•
PIR powering (via external supply).
•
3 year operation on batteries (contacts only).
•
Complete supervision of zone tampers and low battery.
•
Key Instructions
DO NOT MOUNT IN A METAL CAN.
•
DO NOT PUT POWER ON HARDWIRE TERMINALS.
•
Use with normally closed contacts in-line with 4.7 K-ohms resistors (mandatory).
•
Not for use with life safety devices, such as Smoke or CO sensors.
•
External supply requirements:
•
Contacts-only installations may use wall plug power supply (see specifications)
Installations with PIRs or Glassbreaks (powered devices) require battery-backed
external power supply (see diagram).
Without backed-up power, PIRs or Glass Breaks could alarm when
power is lost.
Translator AA batteries drive contacts only, and do not drive powered
devices.
Ensure that external supply has sufficient current to supply all
powered devices including Translator.
4-wire powered devices only. Not for use with 2-wire powered
devices.
If using old panel as the battery-backed 12V DC supply, verify supply
and battery operation. DO NOT MOUNT IN OLD CAN... the wireless will
not get out!
Installation
Hook up PIR and Glass Break power lines to external power supply.
•
Alarm contact hook-up:
•
Works only with normally-closed contacts (alarm = open).
Remove any existing end-of-line resistors.
Connect 4.7K end-of-line resistor (included) IN-LINE with contact
Resistor should NOT be across (between) terminals
Honeywell® Enrollment
2GIG® Enrollment:
Sensors:
Sensors:
RF Learning tripping enrollment mode.
Q1 RF Sensor
Set up for any behavior desired.
Set up for any behavior desired.
Input Type: 3 (Supervised RF)
At "Enter RF Serial Number", press SHIFT LEARN, and trip sensor.
When prompted, open/close each zone
Ensure it is set to Loop 2.
twice to enroll serial number.
Ensure it is set to Loop: 2.
Translator itself:
Sensor Type: (08) 24 Hour Aux
Translator itself:
Equipment Type: (1) contact
RF Learning tripping enrollment mode.
Equipment Code: (0000) other
Zone Type: 8 (24 hour Aux)
Other Equipment Code: (208) meaning RE208
Input Type: 3 (Supervised RF),
Enter RF Serial Number: [press SHIFT,Learn, then toggle the tamper
When prompted, toggle the tamper
switch to enroll the serial number]
switch to enroll serial number.
Equipment Age: (0) new
Loop 2 (but Loop doesn't really
Loop Number: (2) but Loop doesn't really matter
matter).
Dialer Delay: (1) enabled
RE208_Hardwire_to_Honeywell-Compat_Translator
Page 1 of 4
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
® or 2GIG ® Wireless Translator™
.
30-Oct-14
•
Existing Hardwire Sensors
•
.
Contact
(Normally Closed)
Page 2 of 4

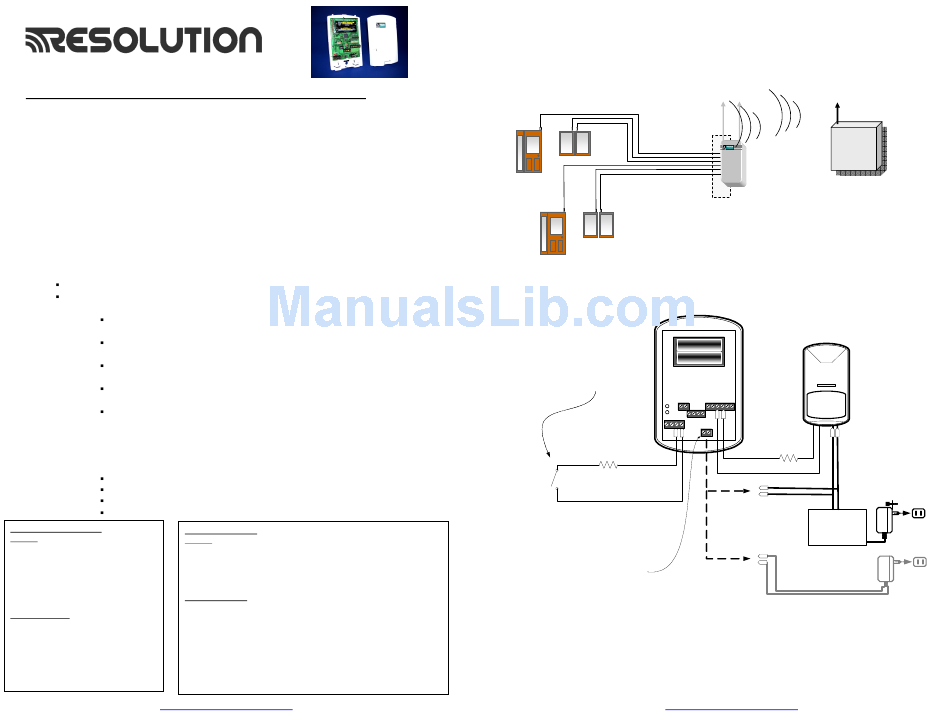

Application Diagram
Taking over old Hardwire panel,
usually mounted in utility area
Connection Diagram
To Enroll zone,
Open and close contact.
This sends a open/close
signal to panel.
End of Line
Resistor
Loop
y
4.7K Loop
x
Use Battery-Backed 12VDC
if powering
PIRs or Glass Breaks
Old Panel may be used,
Power Supply polarity
Use Non-Battery-Backed
Supply ONLY if installation is
DOES NOT matter!
all non-powered contacts
RE208_Hardwire_to_Honeywell-Compat_Translator
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Honeywell Wireless
New Wireless
System
New Honeywell
Self-Contained System in
living area
Translator AA
Batteries DO NOT
power external
devices
PIR
PIR Contact
PIR
Output
Power
(Normally
Input
Closed)
4.7K
Altronix TP1620
16.5VAC, 20VA
Transformer
with securing screw
+12 VDC GND
Altronix AL100UL
12VDC Supply
With Lead-acid
NON-Switched
if operation fully verified battery
Outlet
Resolution
RE012
12 VDC
Power Supply
May use GE 60-898-ITI supply here,
if securing screw is desired
