Resolution Wireless Translator RE224DT Manual

RE224DT DSC ® -to-2GIG ® Wireless Translator™
Features
Listens to DSC protocol wireless devices: DWS, PIR, Glass Break, Fob, Panic.
•
Transmits Honeywell protocol wireless (directly usable by 2GIG panels).
•
No sensor enrollment required.
•
All sensor alarm, supervisory and trouble signals are passed through.
•
Main device has its own unique ID for supervisories, complete reporting
•
of main device tamper, external power supply fault and low battery.
Dual antennas for both Receive and Transmit diversity for reliable range.
•
Back-up battery protects during loss of external power.
•
Key Instructions
WILL NOT HEAR OLD DSC 900MHz SENSORS, such as: WLS907, WLS915,
•
WLS914, WLS909, WLS929. Key hint is if old DSC system had the PC5132-900,
PC5132-RS (900) or PC5349 (900 & 433) Receiver.
External supply: 12V DC at least 50 mA. NON-SWITCHED outlet.
•
Wire polarity DOES NOT matter!
Mount Translator at least 20 feet from Control Panel's receiver.
•
3 AAA Alkaline batteries give 72 hours backup if external supply fails.
•
INSTALL BATTERIES ONLY WHEN EXTERNAL SUPPLY IS READY TO CONNECT.
Enrolling:
•
Power the Translator. It starts translating immediately.
Sensors are NOT enrolled in the Translator.
To enroll any sensor:
On panel go to ENTER RF SENSOR SERIAL NUMBER.
•
Press SHIFT then LEARN.
•
Trip the DSC sensor to enroll it in the panel.
•
Enroll the Translator into a zone, because it sends check-in
supervisories, cover tamper and low battery messages.
Sensor Type: (08) 24 Hour Aux Alarm
•
Equipment Code: (0873) TAKE 345
•
On panel go to ENTER RF SENSOR SERIAL NUMBER.
•
Press SHIFT then LEARN.
•
Trip Translator tamper switch to enroll it in panel
•
Loop 2 (although Loop # actually doesn't matter)
Operation
Existing DSC protocol sensors transmit as usual. Translator passes
•
information on to control panel as if they were 2GIG or Honeywell
transmitters.
DSC Fob buttons: Off/Home/Away/Panic
•
translate to 2GIG Functions: Disarm/Stay/Away/Aux
RE224DT_DSC-to-2GIG_Translator
Page 1 of 4
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Page 2 of 4
15-Oct-14
Translator Main Zone wireless transmission ( unique ID):
•
Tamper, when cover opened. Also sends restore.
Low battery, when low battery. Also sends restore.
Supervisory every hour. Supervisory stopped if 12V DC power absent.
LED Operation
•
Green LED
On if 12V DC power present.
•
Blinks on receipt of DSC-compatible packets.
•
Red LED
On if device low battery (unless there's no 12V DC
•
power).
Blinks on transmit of 2GIG-compatible packets.
•

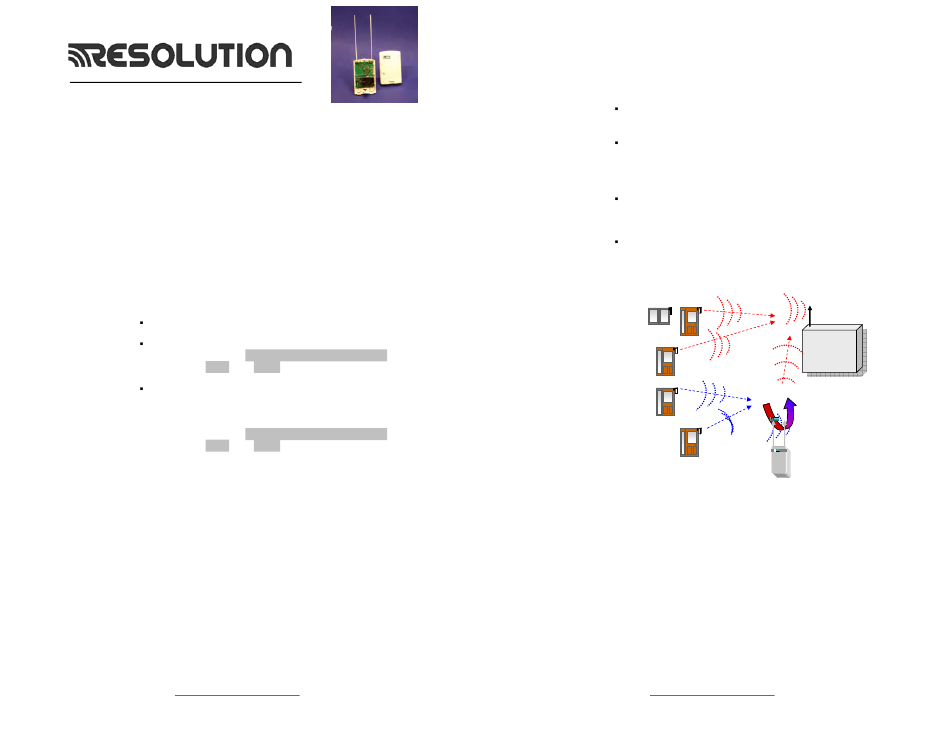

Application Diagram
•
Because the Translator has two antennas, for both receive
and transmit diversity, it will generally have better range
than all sensors, and many panels (particularly those with
internal antennas).
Place the Translator generally in the center of the all the
existing sensors it needs to hear. It will have no problem
reaching the control panel.
New 2GIG or
Honeywell
Wireless
Sensors
Existing DSC
Wireless
Sensors
RE224DT_DSC-to-2GIG_Translator
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
New 2GIG
System
15-Oct-14
