SLCT* and SLCT*/35 safety light curtains
Product Description
Transmitter unit
Figure 3.1
Product features
Further information about the product
The following information about the SLCT series is provided in the appendix at the
end of this document:
Technical data: .
Available profile lengths/dimensions: see chapter 8.2.
Dimensional drawings: see chapter 8.3.
Product characteristics by type code: see chapter 8.4.
Available accessories: see chapter 8.6.
10
Protection
24 V supply
Test
Beam Code A/B

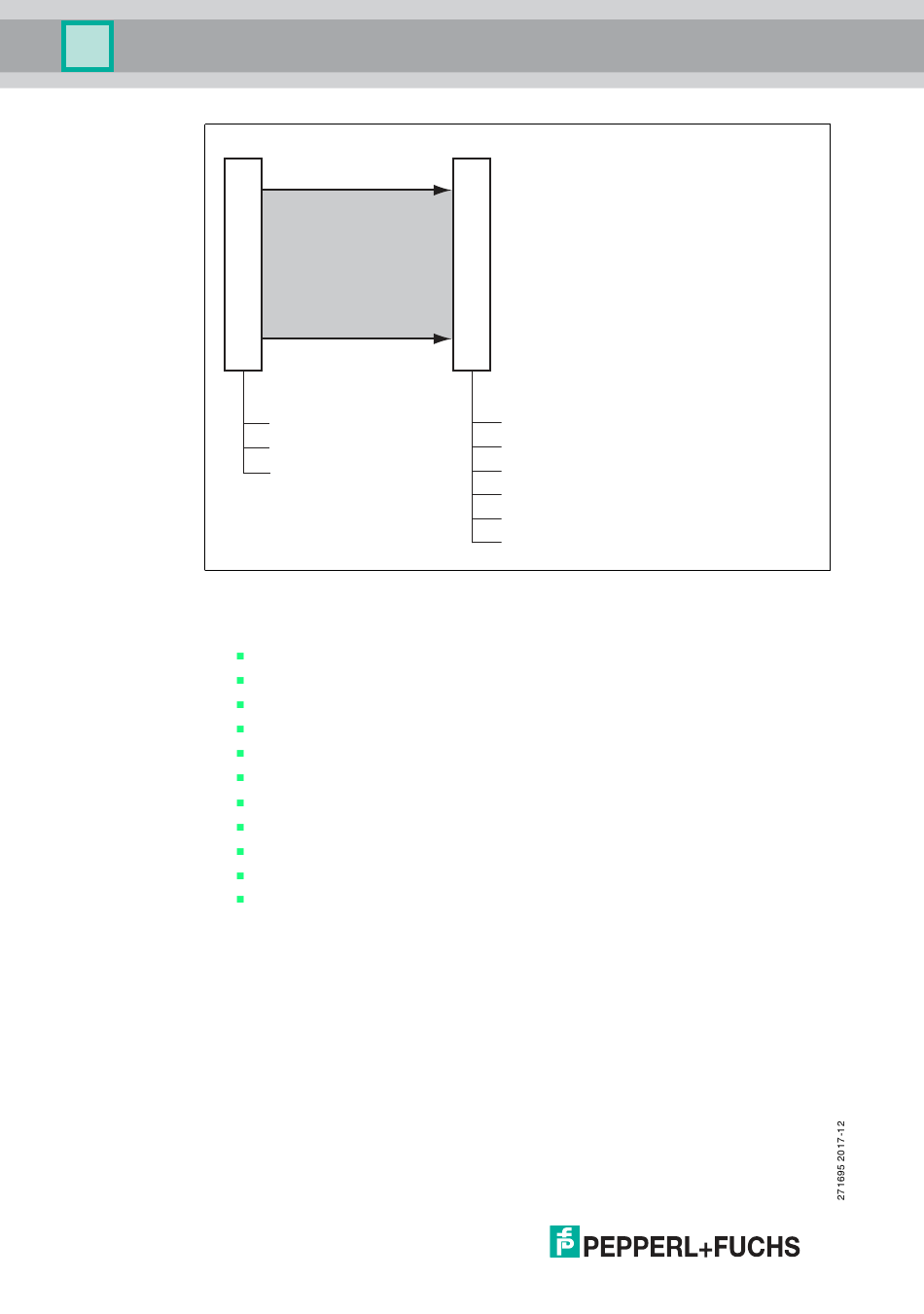

Schematic diagram of a detection device
Type 4 ESPE in accordance with IEC/EN 61496-1
Self-testing
Obstacle size, depending on type, 14 mm, 30 mm, 60 mm, 90 mm
Protection field heights up to 1200 mm (SCLT14)
Protection field heights up to 2400 mm (SLCT30, SLCT60, SLTS90)
Protection field grids 100 mm (SLCT14, SLCT30)
Protection field grids 300 mm (SLCT60, SLCT90)
Selectable startup/restart interlock
Selectable relay monitor
Simple layout
Two OSSDs
Receiver unit
24 V supply
OSSDs
Status / Select RI-RM
Restart Interlock (RI)
Relay Monitor (RM)
Beam Code A/B
