Attaching the Pen Tray to the DualBoard
If your Interwrite DualBoard is going to be mounted on the wall, attach the
optional Pen Tray before you mount the board. If the Interwrite DualBoard is
going to be mounted on a floor stand, the Pen Tray can be easily attached at
any time. The Interwrite DualBoard Pen Tray attaches to the frame. Use one
of the provided Phillips screws for each attachment hole in the Pen Tray.
Tools Required:
Phillips
screwdriver
Pen Tray
Phillips screws

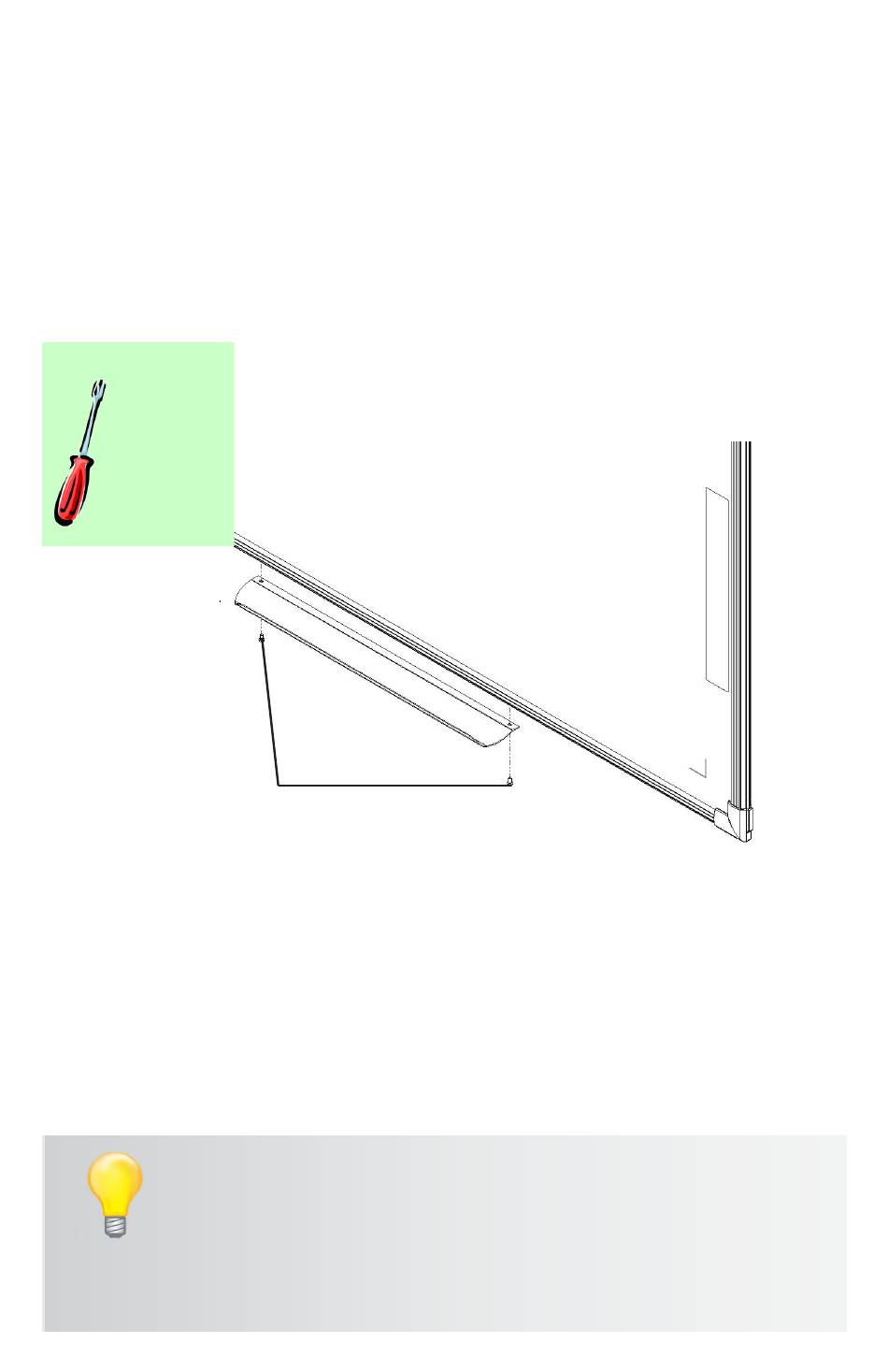

1 Locate the pre-drilled screw holes for the Pen Tray in the frame of the
Interwrite DualBoard.
2 Attach the Pen Tray to the Interwrite DualBoard using the small Phillips
screws provided, one for each hole in the Pen Tray.
3 Slide the rubber bumpers, if they came with your Pen Tray, onto each end,
fitting the contours of the bumper to those on the tray.
To avoid damage to the Interwrite DualBoard controller located on
the back of the board near the corner, do not rest the Interwrite
DualBoard on the controller housing. When handling and maneu-
vering your Interwrite DualBoard, be careful not to scratch or dam-
age the Interwrite DualBoard's writing surface.
Never nail or drill the Interwrite DualBoard. Doing so will damage
the unit and void your warranty.
